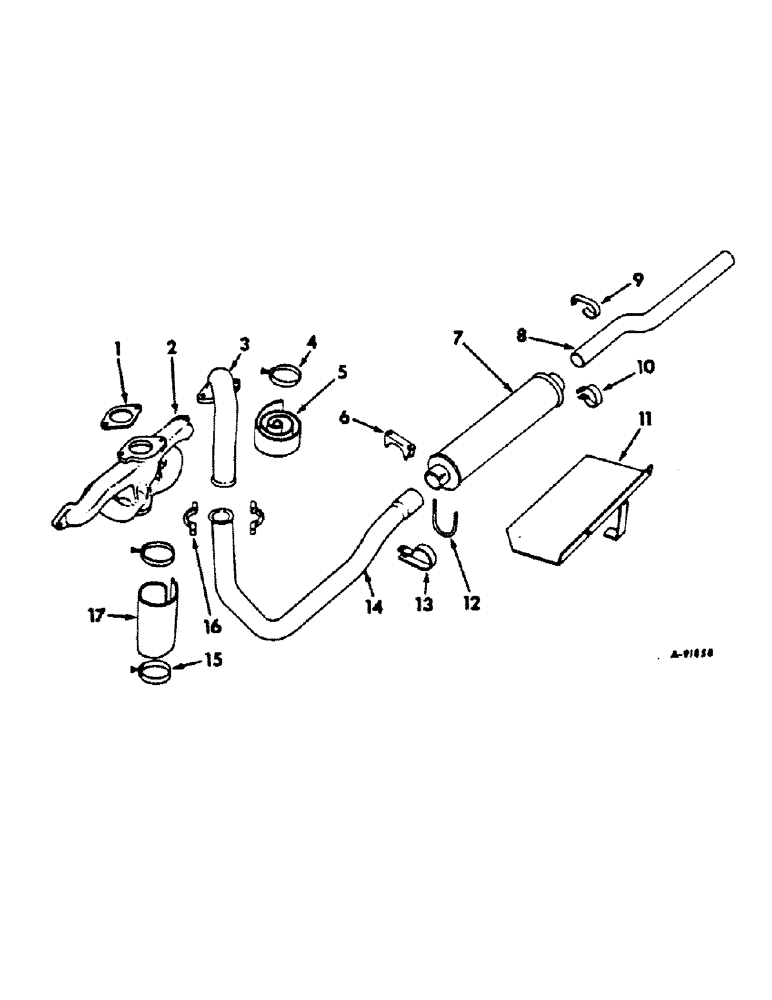

Запчасти Case IH C-123 (B-54) - EXHAUST SYSTEM, T-4 TRACTORS W/UNDERSLUNG MUFFLER

1

368482R1

GASKET

exhaust pipe wlbow

1шт.

2

369645R22

MANIFOLD, intake & exhaust w/plug

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto sq-hd pipe, optional w/445684

1шт.

445684

PLUG

1/8-27 auto sq-hd pipe, optional w/445671

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

3

368484R11

ELBOW

exhaust pipe

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8-16 x 1-108 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

46364H

CLAMP

exhaust pipe elbow asbestos

1шт.

5

370581R1

TAPE

ASBESTOS, exhaust pipe elbow

1шт.

6

636339R1

CLAMP

exhaust pipe

1шт.

7

636125R91

MUFFLER, exhaust, tractors w/serial no. 3005 and below

1шт.

7

636330R91

MUFFLER, exhaust, tractors w/serial no. 3006 and above

1шт.

8

636070R1

PIPE, exhaust tail

1шт.

9

636071R1

BRACKET, tail pipe

1шт.

10

362304R1

CLAMP

tail pipe

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, 3/8-16 x 1-3/8 hex-hd cap

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

636206R11

SHIELD, muffler heat

1шт.

NLS

NO LONGER SERVICED

3/4-10 x 1-1/2 hex-hd cap

1шт.

114821

NUT, 3/4-10 hex

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

12

190907R1

BOLT

U-BOLT, exhaust pipe clamp

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

13

636069R1

BRACKET, exhaust pipe, tractors w/serial no. 3005 and below

1шт.

13

636329R1

BRACKET, exhaust pipe, tractors w/serial no. 3006 and above

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

14

636068R11

PIPE, exhaust, tractors w/serial no. 3005 and below

1шт.

14

636328R11

PIPE, exhaust, tractors w/serial no. 3006 and above

1шт.

15

29979D

CLAMP

exhaust pipe asbestos

2шт.

16

362300R1

CLAMP

exhaust pipe elbow

2шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

17

370639R1

TAPE

ASBESTOS, exhaust pipe

1шт.

618184R1

ADAPTER, muffler intake, tractors w/serial no. 3005 and below

1шт.
