Запчасти Case IH C-123 (B-53) - EXHAUST SYSTEM, VERTICAL TYPE, T-4 CRAWLER TRACTORS

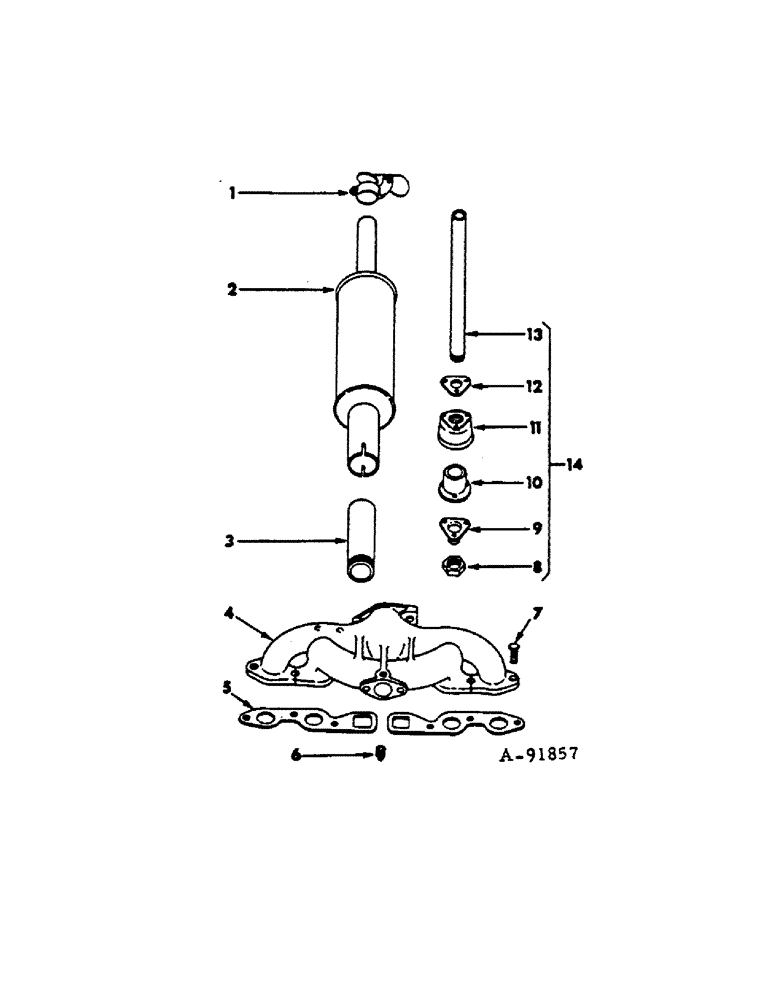

Схема запчастей Case IH C-123 - (B-53) - EXHAUST SYSTEM, VERTICAL TYPE, T-4 CRAWLER TRACTORS
3
14
7
12
5
9
8
13
1
2
10
6
4
11

Артикул

Название

Примечание

Количество

1

267112R91

CAP

ASSY, exhaust pipe

1шт.

2

635342R91

MUFFLER

exhaust

1шт.

3

635340R1

PIPE, engine manifold exhaust

1шт.

4

369645R22

MANIFOLD, intake & exhaust w/plug 445671

5шт.

5

352014R2

GASKET

manifold

2шт.

6

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto-sq-hd pipe, optional w/445684

1шт.

6

445684

PLUG

1/8-27 auto-sq-hd pipe, optional w/445671

1шт.

7

251174R1

STUD

manifold to cyilnder head, engines w/serial no. 27740 and below

6шт.

251176R1

NUT

manifold stud

6шт.

7

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap, Manifold to cylinder head, engines w/serial no. 27741 and above

6шт.

8

192104

BUSHING, 1-1/2 x 1-1/4 manifold reducer

1шт.

9

9749DA

BASE, spark arrester

1шт.

10

353265R1

BODY, spark arrester

1шт.

11

353266R1

TOP, spark arrester

1шт.

12

636156R1

PLATE, exhaust pipe mounting

1шт.

14-680

BOLT,Hex, 3/8" - 24 x 5", Gr 5

BOLT, 3/8-24 x 5 hex

3шт.

93082

NUT, 3/8-24 hex

3шт.

13

636158R1

PIPE, exhaust

1шт.

14

636154R91

PARTS ACCESSORY, spark arrester

1шт.

55348D

PARTS ACCESSORY, spark arrester

1шт.

Выбрано товаров: 20
