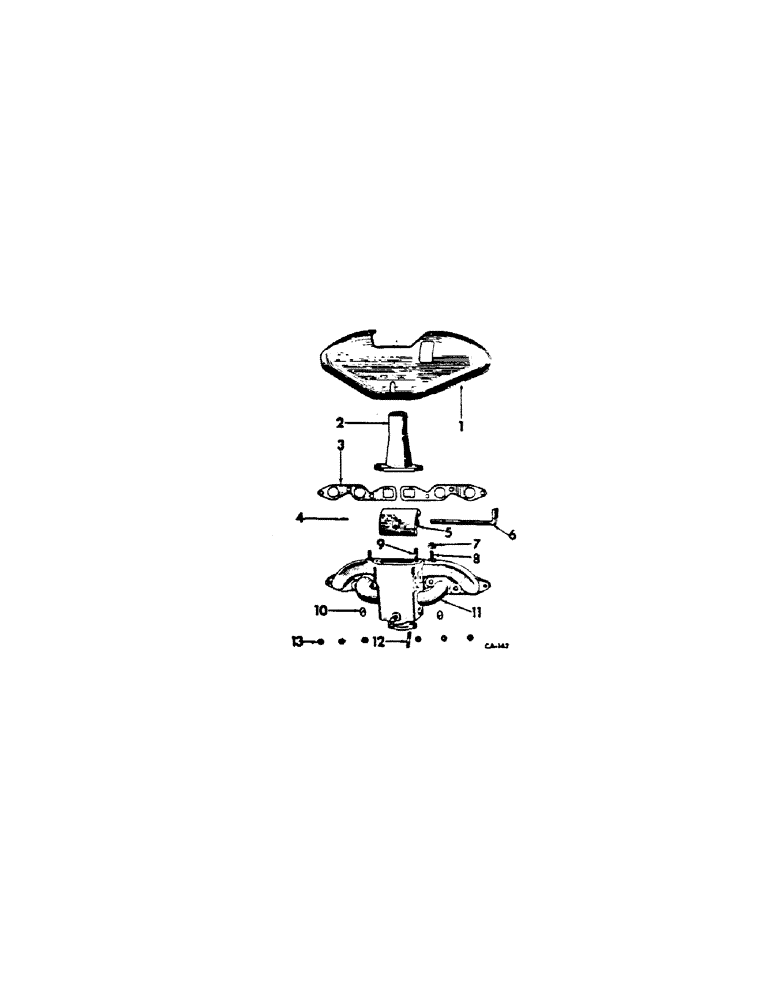

Запчасти Case IH C-123 (B-51[A]) - EXHAUST SYSTEM, 100, 130 AND 140 TRACTORS, DISTILLATE OR KEROSENE

1

48892DB

SHIELD, heat manifold

1шт.

2

356369R1

PIPE

exhaust

1шт.

3

352014R3

GASKET

exhaust & intake manifold

1шт.

4

142494

GUIDE

Pin, Grooved, 5/32" x 7/8", Type A

1шт.

5

6866DA

VALVE, heat manifold

1шт.

6

52521DA

SHAFT, heat manifold valve

1шт.

102953

SCREW, 3/8-16 x 1-1/2 sq-hd cone PT set

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

7

93082H

NUT

heat shield manifold stud

3шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x 16 ga

3шт.

8

46102D

STUD, manifold heat shield

2шт.

9

46202D

STUD

exhaust pipe

2шт.

271500

SOCKET

7/16-14 hex

2шт.

10

41-3014

PLUG,Exp, 7/8"

expansion T18

2шт.

11

354137R92

MANIFOLD, exhaust & intake w/heat valve, consists of (1) manifold (NSS), (1) nut 114503, (1) pin 142494, (1) pin 107317, (1) plug 445671, (2) plug 172540, (1) screw 102953, (1) shaft 52521DA, (3) stud 46102D, (3) stud 46202D, (1) valve 6866DA

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto sq-hd pipe, optional w/445684

1шт.

445684

PLUG

1/8-27 auto sq-hd pipe, optional w/445671

1шт.

12

G8603

STUD, carburetor

2шт.

13

251176R1

NUT

manifold to cylinder head

6шт.

251174R1

STUD

cylinder head

6шт.
