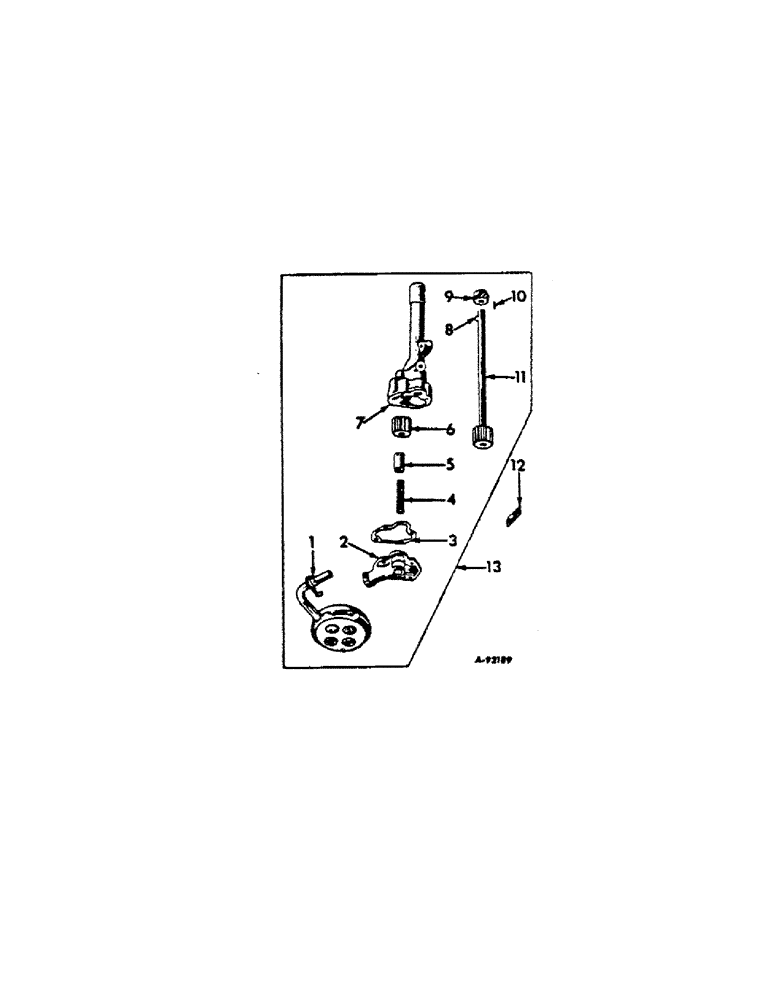

Запчасти Case IH C-123 (B-49) - OIL PUMP

1

368979R91

SCREEN

oil pump, 140 tractors, T-4 crawler nd 57 twine or wire balers

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

1

56108D

FILTER SCREEN

SCREEN, oil pump, 100, 100HC, 130, 130HC tractors

1шт.

2

6098DA

OIL RESERVOIR

COVER, oil pump

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

375786R1

GASKET

oil pump body cover

1шт.

4

43414DA

VALVE SPRING

SPRING, oil pressure

1шт.

5

357648R1

LOCK VALVE

VALVE, oil pressure

1шт.

6

227713R1

GEAR WHEEL

GEAR, oil pump idler, use w/pump 375785R91

1шт.

6

35631H

GEAR

oil pump idler, use w/pump352085R94

1шт.

7

35647H

SHAFT

oil pump idler

1шт.

8

103905

KEY

1/8 x 5/8 woodruff 5

1шт.

9

16112DB

GEAR

oil pump shaft spiral, replaces 352057R1

1шт.

10

112011

PIN,1/8" x 7/8"

1/8 x 7/8 sq-end str

1шт.

11

375789R91

SHAFT

GEAR & SHAFT ASSY, oil pump, use w/pump 375785R91

1шт.

11

365377R91

SHAFT

GEAR & SHAFT ASSY, oil pump, use w/pump 352085R94

1шт.

12

46629D

LOCK

oil pump screw

1шт.

13

352085R94

PUMP

ASSY, lubrocating oil, order pump 375785R91, consists of (1) body (NSS), (1) cover 6098DA, (1) gasket 43415D, (1) gear 35631H, (1) pin 103386, (1) screen 368979R91, (4) screw 179816, (1) spring 43414DA, (1) valve 357648R1, (4) washer 103320

1шт.

13

375785R91

PUMP

ASSY, oil

1шт.

re it no. 13 - 375785r91 does not come with it no. 1 screen. ph-cam 7-20-98

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

2шт.

444671

PLUG, 1/8-27 auto zn sq-hyd pipe

1шт.
