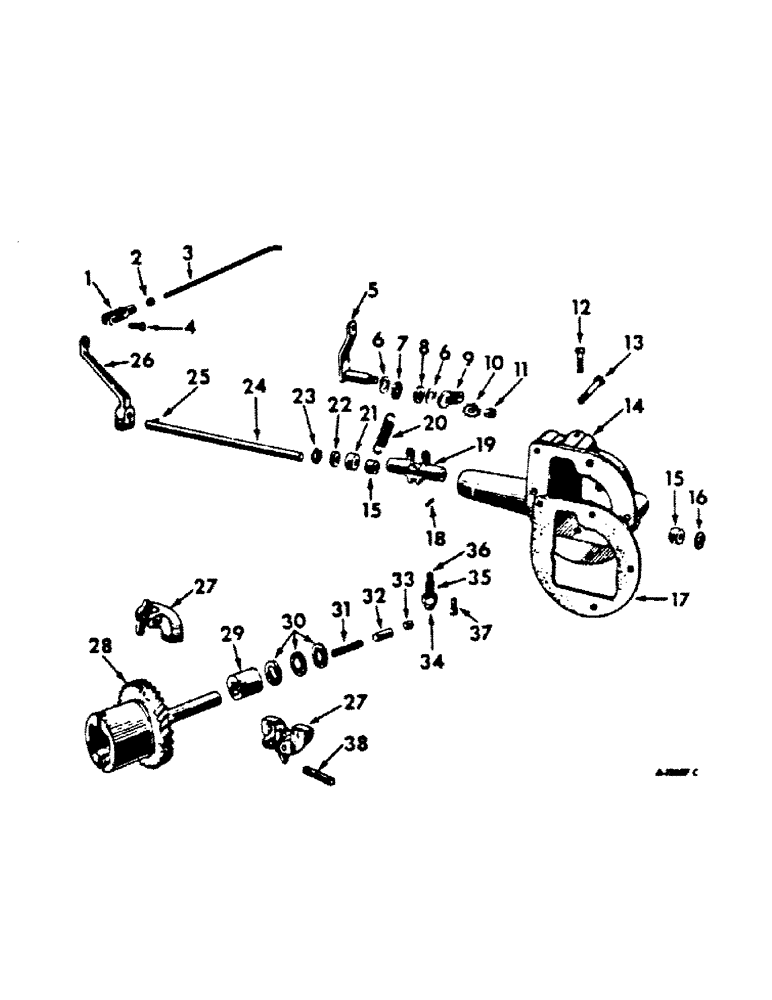

Запчасти Case IH C-123 (B-47) - GOVERNOR AND CONNECTIONS, 100, 100HC, 130 AND 130HC TRACTORS

356745R91

GOVERNOR ASSY, consists of all ref nos except 1, 2, 3 & 4

1шт.

1

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4 adj rod end

1шт.

2

25-114

NUT,1/4"-28, G5

1/4-28 hex

1шт.

3

43617DA

ROD

governor connecting

1шт.

137130

PIN

1/16 x 7/16 cot

1шт.

4

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

1шт.

137130

PIN

1/16 x 7/16 cot

1шт.

5

46947DAXB

LEVER

W/SHAFT, governor speed change

1шт.

6

355476R1

SPRING WASHER

governor spring lever, one used w/46949D & 149345R91

1шт.

7

46950D

RETAINER

governor speed change lever shaft seal, order 367956R91

1шт.

8

46949D

SEAL

governor speed change lever shaft, order 149345R91

1шт.

8

149345R91

OIL SEAL

OIL SEAL, governor speed change shaft

1шт.

9

51491DA

LEVER

governor spring

1шт.

10

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 external, tooth lock

1шт.

11

114494

NUT,Jam, 3/8"-24, G5

NUT, 3/8-24 hex jam

1шт.

12

357432R3

BOLT

STOP, governor speed change lever

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

13

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Governor housing Hex, 5/16"-18 x 2 1/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

6340DAX

HOUSING

ASSY, governor, consists of (2) bearing 45753D, (1) bushing 46939D, (1) housing (NSS), (1) pin 46942D, (1) pin 49220D, (1) plug 172531

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

45753D

BEARING, NEEDLE,Needle, 9.51mm ID x 15.89mm OD x 12.7mm W

governor rockshaft

2шт.

16

172531

PLUG,Exp, 3/4"

3/4 expansion

1шт.

17

45875D

GASKET

governor housing

1шт.

18

142485

GROOVED PIN,1/8" x 5/8", Type A

Pin, Grooved, 1/8" x 5/8", Type A

1шт.

19

352522R1

LEVER

governor rockshaft

1шт.

20

46944DA

SPRING

governor

1шт.

21

46939D

BUSHING,9.59mm ID x 19.13mm OD x 11.11mm L

governor rockshaft

1шт.

22

43482D

SEAL,9.53mm ID x 18.26mm OD x 5.56mm Thk

SEAL, governor

1шт.

23

43483D

SEAL RETAINER

RETAINER, governor

1шт.

24

46943DA

SHAFT

ROCKSHAFT, governor

1шт.

25

106958

KEY

woodruff no.1

1шт.

26

6507DA

ARM

governor rockshaft

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

351778R1

WEIGHT

governor

2шт.

28

375778R11

GEAR

PINION W/PIN, ignition unit & governor, 33 teeth

1шт.

29

49325D

BUSHING

SLEEVE, governor thrust, optional w/363866R1

1шт.

29

363866R1

BUSHING,12.83mm ID x 23.81mm OD x 27.51mm L

SLEEVE, governor thrust, optional w/49325D

1шт.

30

43481D

BEARING ASSY,12.8mm ID x 23.81mm OD x 10.19mm W

BEARING, ball, thrust

1шт.

31

49218DA

SPRING

governor shaft bumper

1шт.

32

49219DA

AXLE PIN,4.78mm OD x 26.99mm L

PIN, governor shaft bumper

1шт.

33

49220D

STOP

PIN, governor shaft stop

1шт.

34

129-531

NUT,Crown, 7/16"-14

7/16-20 low crown hex, will work for 50046D

1шт.

35

31804DA

BODY

governor bumper spring

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

36

28078D

VALVE SPRING

SPRING, governor bumper

1шт.

37

46942D

AXLE PIN,5.56mm OD x 18.26mm L

PIN, governor rockshaft lever retainer

1шт.

38

46924D

PIN

governor weight

2шт.

108628

PIN

1/16 x 7/8 COT

2шт.
