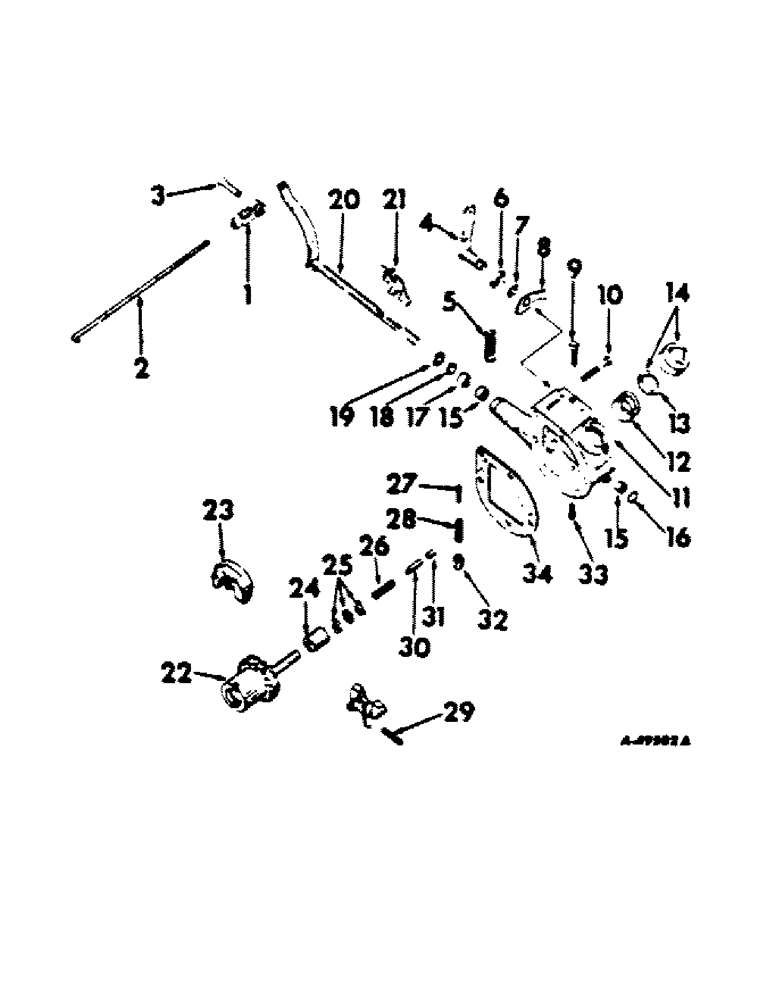

Запчасти Case IH C-123 (B-44) - GOVERNOR AND CONNECTIONS, 140, 140HC TRACTORS AND T-4 CRAWLER TRACTORS

1

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-28 adj rod end, governor connecting rod

1шт.

2

315716R1

ROD

governor connecting

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex

1шт.

137130

PIN

1/16 x 7/16 cot

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

1шт.

137130

PIN

1/167 x 7/17 cot

1шт.

4

46947DAXB

LEVER

ASSY, governor speed change

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext-tooth lock

1шт.

5

364113R1

SPRING

governor, 140 and 140HC tractors

1шт.

5

369686R2

SPRING

governor, T-4 crawler tractors

1шт.

6

149345R91

OIL SEAL

SEAL, governor speed change shaft oil

1шт.

7

151341R1

WASHER

governor spring lever

2шт.

8

51491DB

LEVER

governor spring

1шт.

9

357432R3

BOLT

STOP, governor speed change lever

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

10

179827

FRONT AXLE

Governor housing Hex, 5/16"-18 x 2 1/4", G5

1шт.

11

367706R11

HOUSING ASSY, governor, consists of (2) bearing 45753D, (1) bushing 46939D, (1) housing (NSS), (1) neck 368564R1, (1) pin 49220D, (1) pin 46942D, (1) plug 172531

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

12

368564R1

NECK, oil filler

1шт.

13

368153R1

GASKET

oil filler cap

1шт.

14

367857R91

CAP

ASSY, oil filler

1шт.

15

45753D

BEARING, NEEDLE,Needle, 9.51mm ID x 15.89mm OD x 12.7mm W

BEARING, governor rockshaft

2шт.

16

172531

PLUG,Exp, 3/4"

3/4 expansion

1шт.

17

46939D

BUSHING,9.59mm ID x 19.13mm OD x 11.11mm L

governor rockshaft

1шт.

18

43482D

SEAL,9.53mm ID x 18.26mm OD x 5.56mm Thk

SEAL, governor rockshaft

1шт.

19

43483D

SEAL RETAINER

RETAINER, governor rockshaft seal

1шт.

20

367709R11

ROCKSHAFT

governor

1шт.

21

367711R1

FORK

governor rockshaft

1шт.

131970

SCREW,Sl Fil Hd, #8 - 32 x 1/2"

no. 8-32 x 1/2 slt-rd-hd mach

2шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

22

375778R11

GEAR

PINION ASSY, governor

1шт.

23

374710R1

WEIGHT

governor

2шт.

24

49325D

BUSHING

SLEEVE, governor thrust, optional w/363866R1

1шт.

24

363866R1

BUSHING,12.83mm ID x 23.81mm OD x 27.51mm L

SLEEVE, governor thrust, optional w/49326D

1шт.

25

43481D

BEARING ASSY,12.8mm ID x 23.81mm OD x 10.19mm W

BEARING, governor thust ball

1шт.

26

49218DA

SPRING

governor shaft bumper

1шт.

27

28078D

VALVE SPRING

SPRING, governor bumper

1шт.

28

31804DA

BODY

governor bumper spring

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

29

46924D

PIN

governor weight

2шт.

108628

PIN

1/16 x 7/8 cot

2шт.

30

49219DA

AXLE PIN,4.78mm OD x 26.99mm L

PIN, governor shaft bumper

1шт.

31

49220D

STOP

PIN, governor shaft stop

1шт.

32

NLS

NO LONGER SERVICED

7/16-20 low crown

1шт.

33

46942D

AXLE PIN,5.56mm OD x 18.26mm L

PIN, governor rockshaft lever retainer

1шт.

34

45875D

GASKET

governor housing

1шт.
