Запчасти Case IH C-123 (B-42) - CARBURETOR, MARVEL-SCHEBLER

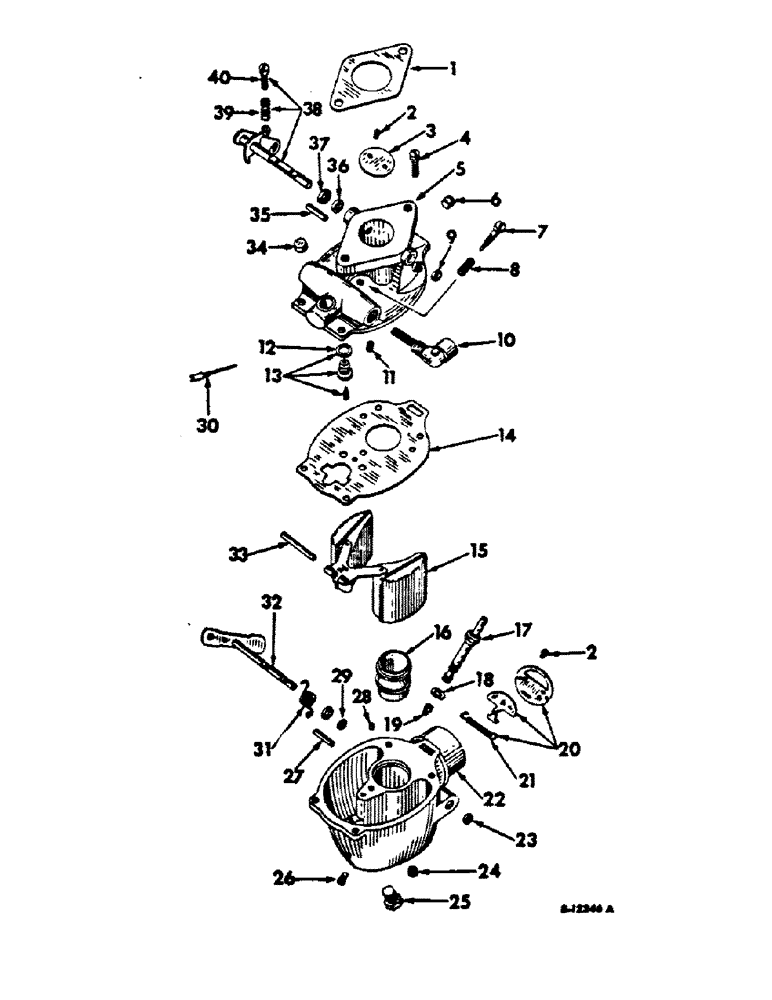

Схема запчастей Case IH C-123 - (B-42) - CARBURETOR, MARVEL-SCHEBLER
35
8
29
31
32
20
2
21
19
11
22
13
16
36
7
23
26
30
2
17
4
40
1
33
10
27
39
34
15
24
3
36
6
28
5
12
14
25
37
18

Артикул

Название

Примечание

Количество

372983R91

CARBURETOR

ASSY, optinal w/carburetor 366462R94, 130, 130HC, 140, 140HC tractors w/engine serial no., Serial Range: 36001-103556

1шт.

385607R91

CARBURETOR ASSY, optional w/carburetor 385608R91, 140 & 140HC tractors w/engine serial no. 103557 and above

1шт.

1

24520D

GASKET

carburetor, not part of carburetor assy

1шт.

2

352701R91

SCREW

throttle plate

4шт.

3

373389R1

VALVE

PLATE, throttle

1шт.

4

19563R91

SCREW, 12-24 x 5/8 fil-hd slt C-Z

1шт.

5

385632R91

BODY ASSY, throttle, consists of ref nos 2, 3, 6, 9, 34, 35, 36, 37, and 38

1шт.

50705D

STUD

, Serial Range: carburetor-manifold

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

5

373354R91

BODY ASSY, throttle, consists of ref nos 2, 3, 6, 9, 34, 35, 36, 37, and 38

1шт.

6

373400R1

PLUG, idle drilling

1шт.

7

69923D

SCREW

idle adjusting

1шт.

8

69954D

SPRING

idle adj screw

1шт.

9

69930D

CUP

throttle shaft

1шт.

10

69938D

ELBOW

& SCREEN ASSY, gas inlet

1шт.

11

373378R1

JET

idling

1шт.

12

69950D

GASKET

float valve seat

1шт.

13

382499R91

JET

SEAT & GASKET ASSY, float valve

1шт.

14

69952D

GASKET

throttle, Serial Range: body-bowl

1шт.

15

69919D

FLOAT

& LEVER ASSY

1шт.

16

69925D

VENTURI

5/8, use w/carburetor 385607R91

1шт.

16

373374R1

VENTURI

19/32, use w/carburetor 372983R91

1шт.

17

373375R1

NOZZLE INJECTION

NOZZLE

1шт.

18

373361R1

GASKET

main nozzle

1шт.

19

385633R1

JET, power, use w/carburetor 385601R91

1шт.

19

373379R1

JET, power, use w/caburetor 372983R91

1шт.

20

373370R91

VALVE

SHUTTER ASSY, air

1шт.

21

373371R1

SPRING

air shutter

1шт.

22

373362R91

BOWL ASSY, fuel, consists of ref nos 23, 24, 26, 27, 28, 29 & 37

1шт.

23

373403R1

PLUG

CUP, air shutter shaft

1шт.

24

373387R1

FILTER

STRAINER

1шт.

25

FOR444613

PLUG

1/8-27 C-Z drain

1шт.

26

373404R1

PLUG

power jet drilling

1шт.

27

373401R1

PIN, air shutter stop

1шт.

28

373383R1

BUSHING

VENT, well

1шт.

29

69924D

PACKING

ai shutter shaft

1шт.

30

(Not used this application)

1шт.

31

373368R1

SPRING, air shutter return

1шт.

32

NS

NOT SERVICED

SHAFT LEVER ASSY, air shutter, not serviced

1шт.

33

69920D

SHAFT

AXLE, float

1шт.

34

373401R1

PLUG, welch expansion

1шт.

35

376358R1

PIN, throttle stop

1шт.

36

373390R1

PACKING

throttle shaft

1шт.

37

69931D

RETAINER

throttle shaft packing

1шт.

38

373388R91

LEVER

SHAFT & LEVER ASSY, throttle

1шт.

39

69953D

SPRING

throttle stop screw

1шт.

40

131979

SCREW,Sl Fil Hd, #8 - 32 x 3/4"

8-32 x 3/4 C-Z slt-fil-hd

1шт.

376110R91

NEEDLE

ADJUSTMENT, main jet

1шт.

373359R91

GASKET

PACKAGE, gasket, consists of ref nos 12, 14, & 18

1шт.

Выбрано товаров: 50
