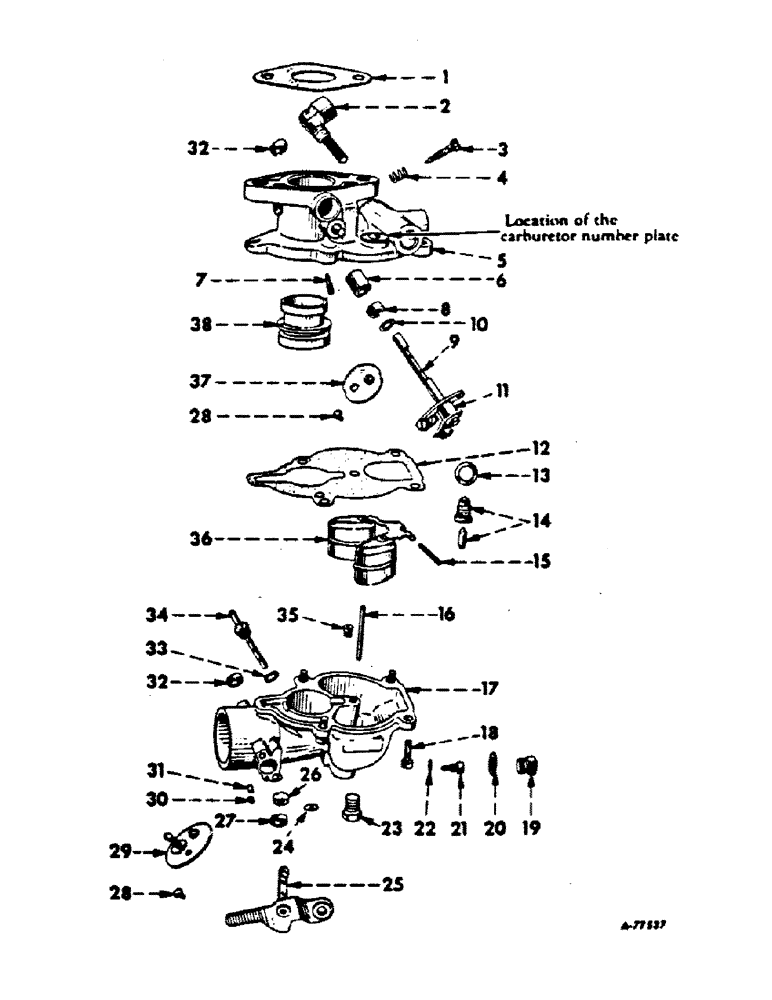

Запчасти Case IH C-123 (B-40) - CARBURETOR, ZENITH

366462R94

CARBURETOR

ASSY, gasoline, on orders fo 366462R94 furnish carburetor assy 385608R91, 130, 130HC, 140 and 140HC tractors

1шт.

372096R93

CARBURETOR ASSY, distillate, 140 and 140HC tractors

1шт.

366463R93

CARBURETOR

ASSY, 57 twine or wire balers, on orders for 366463R93 furnish carburetor assy 385608R91

1шт.

374204R93

CARBURETOR

ASSY, T-4 crawler tractors, on orders for 396478R91, for service parts for assy 396478R91 see section C

1шт.

385608R91

CARBURETOR

ASSY, gasoline

1шт.

50705DA

STUD

, Serial Range: carburetor-manifold

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

1

24520D

GASKET

carburetor, not part of carburetor assy

1шт.

2

53796D

ELBOW

W/SCREEM ASSY, fuel strainer tube

1шт.

3

13873D

NEEDLE

NEEDLE, idle adjusting

1шт.

4

12472D

SPRING

idle adj needle

1шт.

5

368348R92

BODY ASSY, throttle, consists of (1) body (NSS), (1) bracket (NSS), (2) bushing 368360R1, (1) plate 357144R1, (1) plug 53797D, (1) retainer 376139R1, (2) screw 454415, (1) seal 368358R2, (1) shaft 62170DA, (1) spacer 54062D

1шт.

6

368360R1

BUSHING

throttle shaft

2шт.

7

352604R1

JET

idling

1шт.

8

368358R2

RUBBER SEAL

throttle shaft

1шт.

376139R1

RETAINER

seal

1шт.

9

62170DA

SHAFT

AND LEVER ASSY, throttle

1шт.

10

54062D

WASHER

throttle lever

1шт.

11

135645H

PIN, throttle lever taper

1шт.

12

368362R1

GASKET

, Serial Range: bowl-body

1шт.

13

53792D

WASHER

fuel valve & seat

1шт.

14

380977R91

VALVE

& SEAT ASSY, fuel, carburetor assy 366463R93 & 385608R91

1шт.

14

274888R1

VALVE

& SEAT ASSY, fuel, carburetor assy 374204R93

1шт.

19451R1

SCREW, 8-36 x 3/8 hex-hd-slt mach

1шт.

15

35514D

AXLE, float

1шт.

16

368361R1

TUBE, idle filler 0.091" ID, 0.11" OD, 1.48" Length

1шт.

17

368349R92

BOWL ASSY, fuel, consists of (1) bowl (NSS), (1) filter 384327R91, (1) plug 53797D, (1) retainer 42191D, (1) tube 368361R1, (1) washer 21210D

1шт.

18

19270R91

SCREW W/SPRING LOCK WASHER, Serial Range: bowl-body

4шт.

19

31860D

PLUG

main jet passage

1шт.

20

12433D

WASHER

passage plug

1шт.

21

93328H

JET, main, carburetor assy 366463R93 & 374204R93

1шт.

21

55594D

JET, main, caburetor assy 385608R91

1шт.

22

12435D

SEALING WASHER

WASHER, main jet

1шт.

23

FOR444613

PLUG

1/8-27 C-z auto hex-hd pipe fuel bowl drain

1шт.

24

384327R91

FILTER

ASSY, drip plug

1шт.

25

368356R91

SHAFT

& LEVER ASSY, choke, carburetor assy 366463R93 & 385608R91

1шт.

25

369884R91

SHUTTER

SHAFT & LEVER ASSY, air shutter, carburetor assy 374204R93

1шт.

26

21210D

WASHER

choke shaft packing

1шт.

27

42191D

RETAINER

choke shaft packing

1шт.

28

454415

SCREW W/SPRING LOCK WASHER, 5-40 x 1-1/4 slt-fil-hd mach

4шт.

29

368355R91

SHUTTER

ASSY, air

1шт.

30

357150R1

PIN, friction, carburetor assy 366463893 & 385608R91

1шт.

31

357149R1

SPRING

friction pin, carburetor assy 366463R93 & 385608R91

1шт.

32

53797D

PLUG

choke & throttle shaft hole

2шт.

33

22846D

WASHER, discharge jet

1шт.

34

368354R91

JET

ASSY, discharge, carburetor assy 366463R93 & 374204R93

1шт.

34

372537R91

JET ASSY, discharge, carburetor assy 385608R91

1шт.

35

55536D

JEt, well vent, carburetor assy 366463R93 & 374204R93

1шт.

35

69624D

JEt, well vent, carburetor assy 385608R91

1шт.

36

53783D

FLOAT

ASSY

1шт.

37

357144R1

LARGE PLATE

PLATE, throttle valve

1шт.

38

368351R1

VENTURI, carburetor assy 366463R93 & 374204R93

1шт.

38

368350R1

VENTURI, carburetor assy 385608R91

1шт.

53786D

ADJUSTER

ADJUSTMENT, main jet, use w/carburetor assy 374204R93, 366462R94, 372096R93, 385608R91 for high altitude

1шт.

369885R91

BRACKET, air shutter assy, carburetor assy 374204R93

1шт.

131958

ELBOW

SCREW, 8-32 x 5/16 slt-fil-hd mach

2шт.

369886R1

CLAMP

brakcet tube, carburetor assy 374204R93

1шт.

19403R1

SCREW, 8-36 x 1/2 slt-hex-hd mach

1шт.

19404R1

NUT, 8-36 sq-hd mach

1шт.

368357R91

GASKET KIT

KIT, gasket, carburetor assy 385608R91

1шт.
