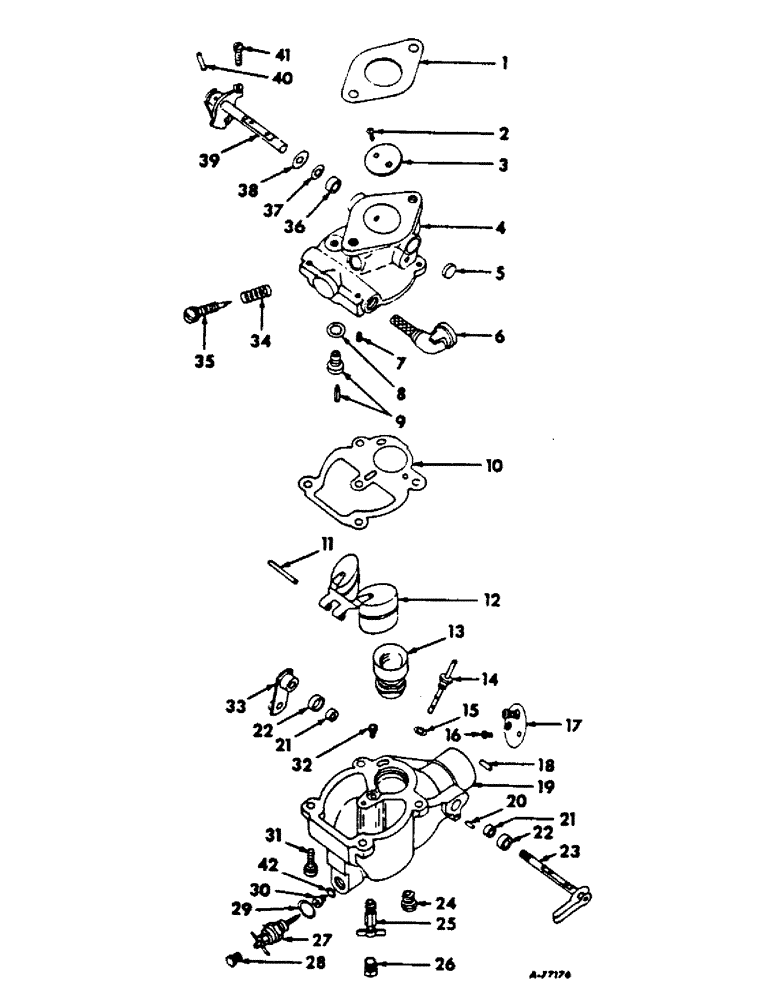

Запчасти Case IH C-123 (B-38) - CARBURETOR, ZENITH

375560R91

CARBURETOR

ASSY, gasoline, 100 and 100HC tractors, replaces Carter carburetor 373962R91

1шт.

For 375560R91 carburator, the kit is 355262R93, found in the I. H. parts counter merchandiser. bj

1шт.

377600R91

CARBURETOR

ASSY, distillate or kerosine, 100, 100HC, 130 and 130HC tractors, replaces Carter carburetor 373961R91

1шт.

1

24520D

GASKET

carburetor

1шт.

Not included with the carburetor assy.

1шт.

2

454515

SCREW W/LOCK WASHER, throttle valve plate

2шт.

3

357144R1

LARGE PLATE

PLATE, throttle valve

1шт.

4

376138R91

BODY ASSY, throttle

1шт.

Consists of (1) body (NSS), (1) elbow 53796D, (1) needle 13873D, (1) pin 135645H, (1) plate 357144R1, (1) plug 377798R1, (1) retainer 376139R1, (2) screw 454514, (1) seal 368358R2, (1) shaft 62170DA, (1) spring 12472D, (1) washer 54062D

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex, distillate or kerosine

2шт.

Not included with the carburetor assy.

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

Gasoline Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

Not included with the carburetor assy.

1шт.

G8603

STUD, carburetor, distillate or kerosine

1шт.

Not included with the carburetor assy.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Not included with the carburetor assy.

1шт.

5

377798R1

PLUG

throttle shaft hole

1шт.

6

53796D

ELBOW

W/STRAINER

1шт.

7

376179R1

JET, idling, gasoline

1шт.

7

352891R1

JET, idling, distillate or kerosine

1шт.

8

53792D

WASHER

fuel valve

1шт.

9

380977R91

VALVE

fuel

1шт.

10

53788DA

GASKET

, Serial Range: bowl-body

1шт.

11

62174D

PIN

AXLE, float

1шт.

12

53783D

FLOAT

ASSY

1шт.

13

352890R1

VENTURI

gasoline

1шт.

13

62171D

VENTURI, distillate or kerosene

1шт.

14

376178R1

TUBE,0.85, 0.8" Length

JET, discharge

1шт.

15

53794D

WASHER, discharge jet

1шт.

31847D

WASHER, discharge jet fibre

1шт.

16

454415

SCREW W/LOCK WASHER, choke valve plate

2шт.

17

53784D

PLATE ASSy, choke

1шт.

18

377897R1

PIN, choke stop

1шт.

19

376180R91

BOWL ASSY, fuel, consists of (1) bowl (NSS), (1) pin 53799D, (1) pin 377897R1, (2) retainer 42191D, (2) washer 21210D

1шт.

20

53799D

PIN, choke lever locating

1шт.

21

21210D

WASHER

choke shaft packing

2шт.

22

42191D

RETAINER

choke shaft packing

2шт.

23

376177R1

SHAFT

AND LEVER, choke

1шт.

24

384327R91

FILTER

ASSY, drip plug

1шт.

25

114981

VALVE

COCK, drain, distillate or kerosine

1шт.

26

FOR444613

PLUG

1/8-27 C-Z auto hex-hd pipe drain, gasoline

1шт.

27

55728D

JET, main, distillate or kerosine

1шт.

28

31860D

PLUG

main jet, gasoline

1шт.

29

12433D

WASHER

main jet

1шт.

30

62177D

JET

main, gsaoline

1шт.

31

19270R91

SCREW W/LOCK WASHER, bowl to body, will work for 359154R91

4шт.

32

106308H

JET, well vent, gasoline

1шт.

32

69624D

JET, well vent, distillate or kerosine

1шт.

33

280090R1

LEVER

choke

1шт.

34

12472D

SPRING

idle adj needle

1шт.

35

13873D

NEEDLE

NEEDLE, idle adj

1шт.

36

368358R2

RUBBER SEAL

throttle shaft

1шт.

37

376139R1

RETAINER

throttle shaft seal

1шт.

38

54062D

WASHER

WASHER, throttle lever spacer

1шт.

39

62170DA

SHAFT

ASSY, throttle w/lever

1шт.

40

135645H

PIN, throttle lever taper

1шт.

41

12455D

SCREW, throttle lever stop

1шт.

42

12435D

SEALING WASHER

WASHER, main jet, gasoline

1шт.
