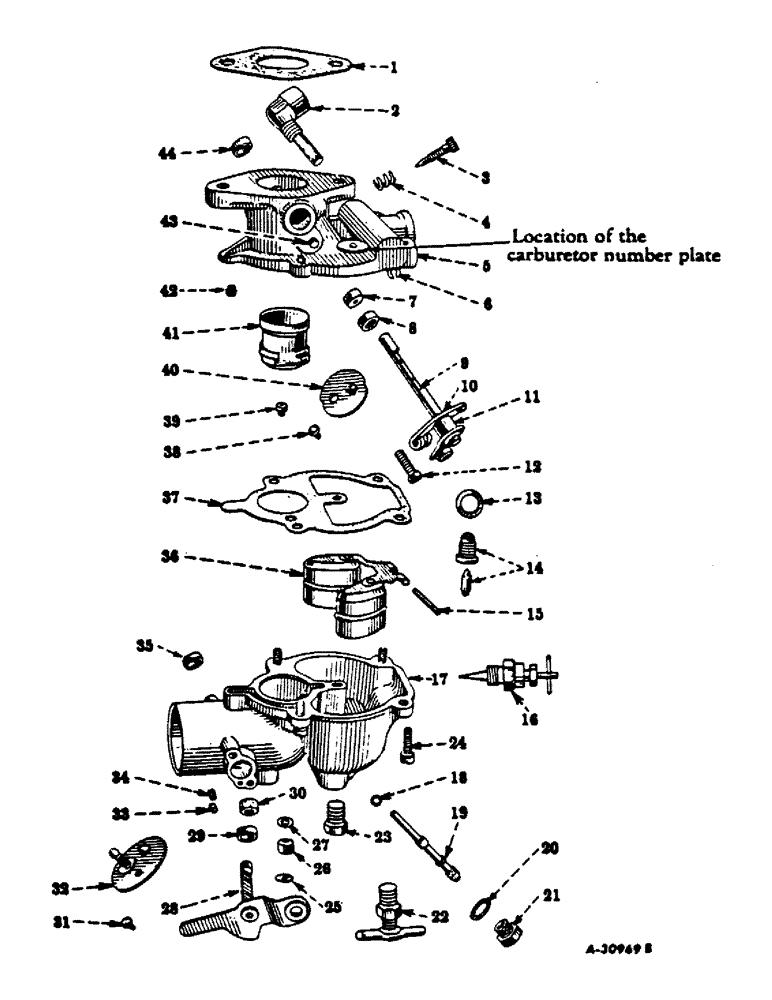

Запчасти Case IH C-123 (B-36) - CARBURETOR, ZENITH

362384R91

CARBURETOR

ASSY, gasoline, optional w/373962R91, order carburetor 375560R91, 100 and 100HC tractors

1шт.

356901R91

CARBURETOR

ASSY, distillate or kerosine, optional w/373961R91, order carburetor 377600R91, 100, 100HC, 130 and 130HC tractors

1шт.

1

24520D

GASKET

carburetor, see note

1шт.

Not included with the carburetor assy.

1шт.

2

53796D

ELBOW

W/STRAINER

1шт.

3

13873D

NEEDLE

VALVE, idle adj needle

1шт.

4

12472D

SPRING

idle adj needle valve

1шт.

5

357142R92

BODY ASSY, throttle, consists of (1) body (NSS), (1) bracket 53789D, (1) pin 54061D, (1) plate 357144R1, (1) plug 53797D, (1) retainer 42191D, (2) screw 145371, (2) screw 454415, (1) shaft 62170DA, (1) spacer 54170D, (1) washer 21210D

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex, distillate or kerosine

1шт.

Not included with the carburetor assy.

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

Gasoline Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

Not included with the carburetor assy.

1шт.

G8603

STUD, carburetor, distillate or kerosine

2шт.

Not included with the carburetor assy.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Not included with the carburetor assy.

1шт.

6

53789D

BRACKET, float

1шт.

145371

SCREW, no.2 x 1/4 cd-pltd rd-hd drive

2шт.

7

21210D

WASHER

throttle shaft packing

1шт.

8

42191D

RETAINER

throttle shaft packing

1шт.

9

62170DA

SHAFT

W/LEVER, screw and pin throttle

1шт.

10

54062D

WASHER

throttle lever

1шт.

11

135645H

PIN, taper

1шт.

12

(Not serviced)

1шт.

13

53792D

WASHER

fuel valve

1шт.

14

380977R91

VALVE

fuel

1шт.

15

62174D

PIN

AXLE, float

1шт.

16

53786D

ADJUSTER

VALVE W/BODY AND SLEEVE, needle main jet adj, distillate or kerosine

1шт.

17

357143R91

BOWL

fuel assy, consists of (1) bowl (NSS), (1) felt 40534D, (1) plug 53797D, (1) plug 40535D, (1) retainer 42191D, (1) washer 12469D, (1) washer 21210D

1шт.

18

357153R1

WASHER, discharge jet fibre

1шт.

19

357153R1

JET, main discharge, gasoline

1шт.

19

357886R91

JET, main discharge, distillate or kerosine

1шт.

20

12433D

WASHER

main passage fibre

1шт.

21

31860D

PLUG

lower, gasoline

1шт.

22

53791D

COCK, drain, distillate or kerosine

1шт.

23

54063D

PLUG

drain, gasoline

1шт.

24

19270R91

SCREW W/LOCK WASHER, bowl to body, will work for 357154R91

4шт.

25

40535D

PLUG

drip

1шт.

26

40534D

WASHER

FELT, drip plug

1шт.

27

12469D

WASHER, drip plug

1шт.

28

357148R91

LEVER

SHAFT W/LEVER, choke valve

1шт.

29

42191D

RETAINER

choke shaft packing

1шт.

30

21210D

WASHER

choke shaft packong

1шт.

31

454415

SCREW W/LOCK WASHER, choke valve plate

2шт.

32

357147R91

PLATE W/RIVET AND SPRING, choke valve

1шт.

33

357150R1

PIN, choke lever friction

1шт.

34

357149R1

SPRING

choke lever friction

1шт.

35

53797D

PLUG

choke shaft hole

1шт.

36

53783D

FLOAT

1шт.

37

357151R1

GASKET

, Serial Range: bowl-body

1шт.

38

454415

SCREW W/LOCK WASHER, throttle valve plate

1шт.

39

69624D

JET, well vent, distillate or kerosine

1шт.

39

94092H

JET, well vent, gasoline, will work for 352894R1

1шт.

40

357144R1

LARGE PLATE

PLATE, throttle valve

1шт.

41

62171D

VENTURI

1шт.

42

352891R1

JET, idling

1шт.

43

54061D

PIN, throttle lever stop

1шт.

44

53797D

PLUG

throttle shaft hole

1шт.
