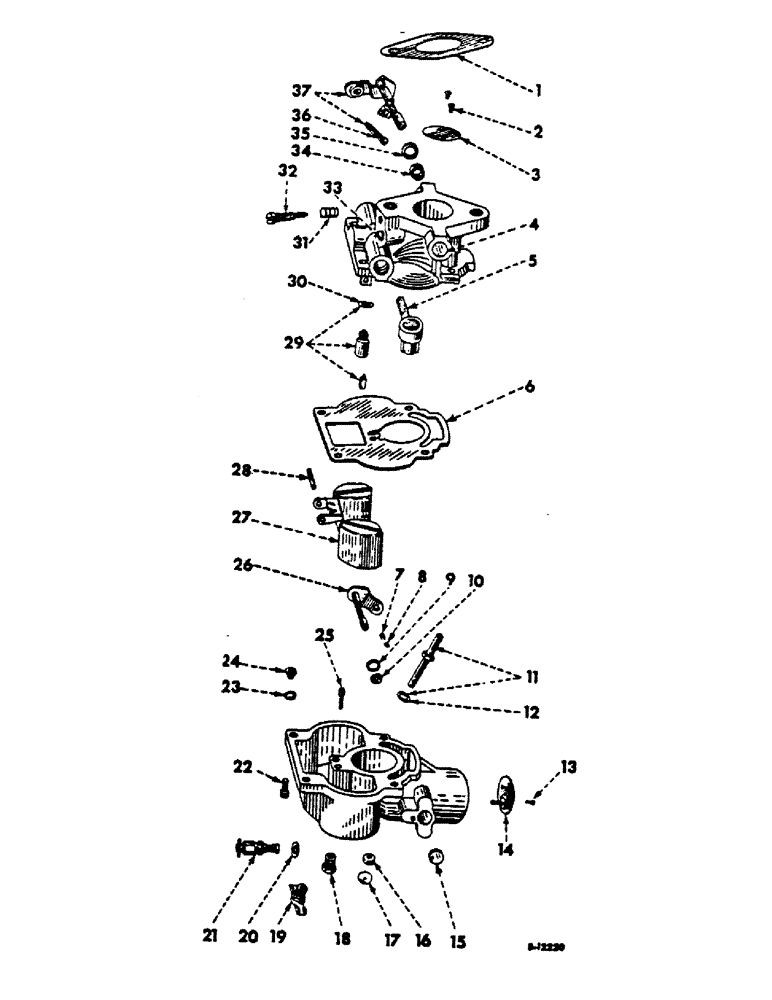

Запчасти Case IH C-123 (B-34) - CARBURETOR, CARTER

373962R91

CARBURETOR

ASSY, gasoline, order carburetor 375560R91, 100 and 100HC tractors

1шт.

373961R91

CARBURETOR

ASSY, distillate or kerosine, carburetor 377600R91, 100, 100HC, 130 and 130HC tractors

1шт.

1

24520D

GASKET

carburetor

1шт.

Not included with the carburetor assy.

1шт.

2

88962R1

SCREW

throttle valve plate

2шт.

3

354804R1

PLATE, throttle valve

1шт.

4

354817R1

PLUG, expansion

1шт.

5

354827R91

ELBOW

W/STRAINER

1шт.

6

373979R1

GASKET

body

1шт.

7

354826R1

PIN, choke lever lock

1шт.

8

354821R1

SPRING

choke lever lock pin

1шт.

9

354825R1

WASHER

choke lever dust seal ret

1шт.

10

354829R1

SEAL

chok lever shaft dust

1шт.

11

355718R91

NOZZLE INJECTION

NOZZLE, w/gasket 88976R1, gasoline

1шт.

11

356701R91

NOZZLE INJECTION

NOZZLE, w/gasket 88976R1, distillate or kerosine

1шт.

12

88976R1

GASKET

nozzle

1шт.

13

88962R1

SCREW

choke valve plate

2шт.

14

373974R91

VALVE

PLATE, choke valve

1шт.

15

354817R1

PLUG, expansion

1шт.

16

354830R1

PLUG

SEAL, air horn felt

1шт.

17

354824R1

WASHER, retainer air horn dust seal

1шт.

18

FOR444613

PLUG

1/8-27 C-Z hex-hd pipe drain, gasoline

1шт.

19

354818R91

COCK, drain, distillate or kerosine

1шт.

20

354815R1

GASKET

main jet adj needle valve, distillate or kerosine

1шт.

21

357125R91

VALVE W/SESL, main jet adj needle 354831R1, distillate or kerosine

1шт.

22

88963R91

SCREW W/WASHER, attaching

4шт.

23

68462R1

GASKET

main metering jet, gasoline

1шт.

24

362453R91

JET W/GASKET, main metering 68462R1, gasoline

1шт.

25

355719R91

JET, low speed

1шт.

26

373976R91

LEVER

SHAFT W/LEVER, choke

1шт.

27

373977R91

FLOAT

1шт.

28

354814R1

PIN

float lever

1шт.

29

373978R91

VALVE

W/SEAT AND GASKET, needle 88976R1

1шт.

30

373980R1

GASKET, needle valve set

1шт.

31

68472R1

SPRING, idle valve adj needle valve

1шт.

32

68469R1

ADJUSTMENT SCREW

VALVE, needle idle adj

1шт.

33

373975R1

RIVET, idle passage plug

1шт.

34

354829R1

SEAL

throttle shaft dust

1шт.

35

354825R1

WASHER

throttle shaft dust seal

1шт.

36

354822R1

SCREW, throttle adjusting

1шт.

37

373982R91

SHAFT W/LEVER AND SCREW, throttle 354822R1

1шт.

68457R1

RIVET, idle gas passage plug

1шт.
