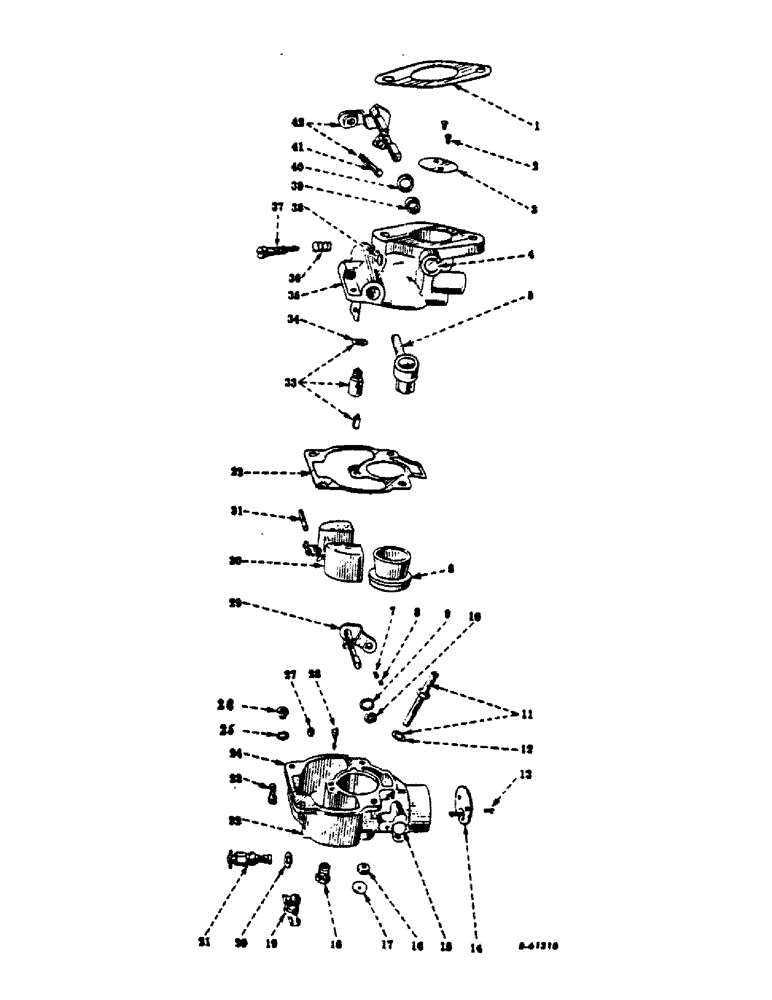

Запчасти Case IH C-123 (B-32) - CARBURETOR, CARTER

362385R91

CARBURETOR

ASSY, gasoline, order 375560R91, 100 & 100HC tractors

1шт.

356902R92

CARBURETOR

ASSY, distillate or kerosine, order 377600R91, 100, 100HC, 130, & 130HC tractors

1шт.

1

24520D

GASKET

carburetor, see note:

1шт.

2

88962R1

SCREW

throttle valve plate

2шт.

3

354804R1

PLATE, throttle valve

1шт.

4

354817R1

PLUG, expansion

1шт.

5

354827R91

ELBOW

w/strainer

1шт.

6

355707R1

VENTURI, no. 19, gasoline

1шт.

6

354820R1

VENTURI, no. 21, distillate or kerosine

1шт.

7

354826R1

PIN, choke lever lock

1шт.

8

354821R1

SPRING

choke lever lock pin

1шт.

9

354825R1

WASHER

choke lever shaft dust seal retainer

1шт.

10

354829R1

SEAL

choke lever shaft dust

1шт.

11

355718R91

NOZZLE INJECTION

NOZZLE, w/gasket 88976R1, gasoline

1шт.

11

356701R91

NOZZLE INJECTION

NOZZLE, w/gasket 88976R1, distillate or kerosine

1шт.

12

88976R1

GASKET

nozzle

1шт.

13

88962R1

SCREW

choke valve plate

2шт.

14

354806R91

PLATE, choke valve

1шт.

15

354817R1

PLUG, expansion

1шт.

16

354830R1

PLUG

SEAL, air horn felt

1шт.

17

354824R1

WASHER, retainer air horn dust seal

1шт.

18

354808R1

PLUG

drain, gasoline

1шт.

19

354818R91

COCK, drain, distillate or kerosine

1шт.

20

354815R1

GASKET

main jet adjusting needle valve

1шт.

21

357125R91

VALVE, main jet adjustment needle w/seal 354831R1, distillate or kerosine

1шт.

22

68456R1

RIVET, main gas passage plug, gasoline

1шт.

23

88963R91

SCREW W/WASHER, attaching

4шт.

24

(Not serviced)

1шт.

25

68462R1

GASKET

main metering jet, gasoline

1шт.

26

362453R91

JET W/GASKET, main metering 68462R1, gasoline

1шт.

27

362454R1

PLUG, screw, nozzle bleed, gasoline

1шт.

27

354809R1

PLUG, screw, nozzle bleed, distillate or kerosine

1шт.

28

355719R91

JET, low speed

1шт.

29

35481291

SHAFT W/LEVER, choke

1шт.

30

354813R91

FLOAT

1шт.

31

354814R1

PIN

float lever

1шт.

32

354823R1

GASKET

body

1шт.

33

88977R91

VALVE

W/SEAT AND GASKET, needle 88976R1

1шт.

34

88976R1

GASKET

needle valve seat

1шт.

35

354833R91

BODY

ASSY, throttle, consists of (1) body (NSS), (1) plate 354804R1, (1) plug 354817R1, (1) rivet 68459R1, (2) rivet 354807R1, (1) seal 354829R1, (2) screw 88962R1, (1) shaft 354805R92, (1) washer 354825R1

1шт.

10263J

NUT, 5/16-18NC hex, distillate or kerosine

2шт.

Not included with the carburetor assy.

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

Gasoline, C 123501 to 36000 Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

Not included with the carburetor assy.

1шт.

G8603

STUD, carburetor, distillate or kerosine

2шт.

Not included with the carburetor assy.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Not included with the carburetor assy.

1шт.

36

68472R1

SPRING, idle adjusting needle valve

1шт.

37

68469R1

ADJUSTMENT SCREW

VALVE, idle adjusting needle

1шт.

38

68459R1

RIVET, idle passage plug

1шт.

39

354829R1

SEAL

throttle shaft dust

1шт.

40

354825R1

WASHER

throttle shaft dust seal ret

1шт.

41

354822R1

SCREW, throttle adjusting

1шт.

42

354805R92

SHAFT W/LEVER AND SCREW, throttle

1шт.

354807R1

RIVET, balance passage plug

1шт.

68457R1

RIVET, idle gas passage plug

1шт.

354831R1

SEAL, adjustment needle valve, distillate or kerosine

1шт.
