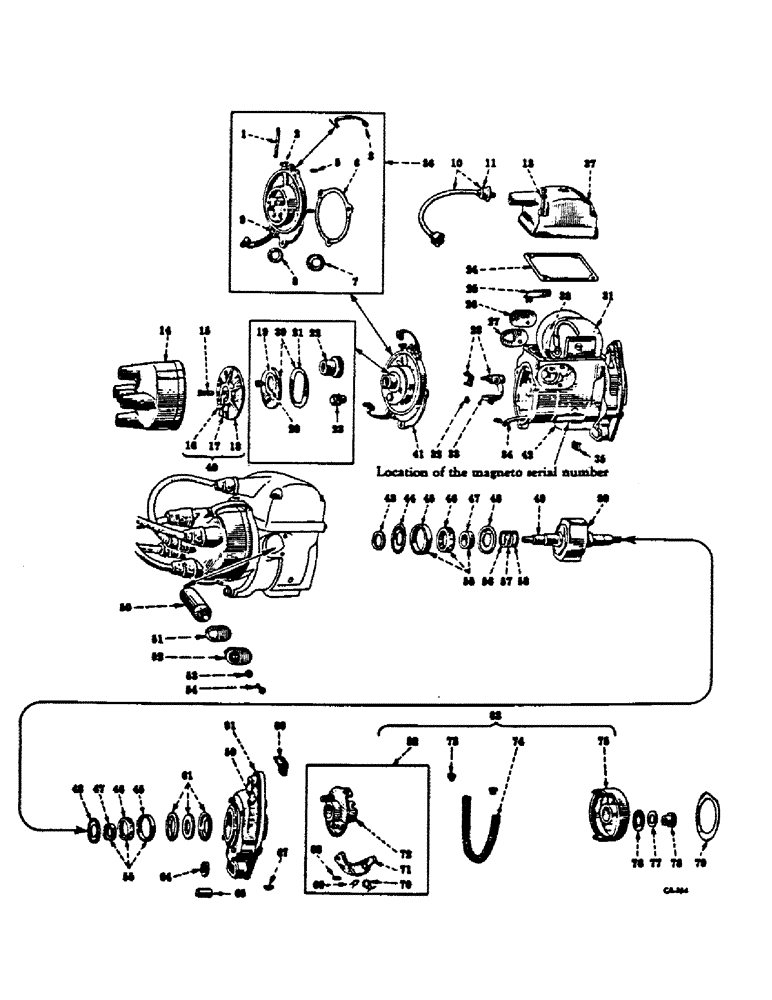

Запчасти Case IH C-123 (B-28) - MAGNETO

351218R92

MAGNETO

ASSY, H-4, consists of all unmarked parts and those marked unit A, order magneto 374867R91, 100 & 130 tractors

1шт.

363850R91

MAGNETO ASSY, H-4, consists of all unmarked parts and those marked unit B, order magneto 374864R91, 140 tractors

1шт.

1

E4216

FELT, oil well

1шт.

2

E4295

OILER

1шт.

3

51666D

SPRING, distributor cap

2шт.

4

(Not used in this application)

1шт.

5

47424D

PIN, distributor cap locating

1шт.

6

47408D

GASKET

distributor body

1шт.

7

49424D

RETAINER, distributor body felt seal

1шт.

8

49423D

SEAL, distributor body felt

1шт.

9

51667D

PIN, distributor cap spring

2шт.

10

356686R92

CABLE

W/TWO NIPPLES 251553R1, Serial Range: coil-distributor

1шт.

11

251553R1

BOOT

NIPPLE, coil to distributor cable

2шт.

12

(Not used in this application)

1шт.

13

38609DA

WASHER, coil cover mounting

4шт.

14

47413DYC

CAP

W/BRUSH, distributor

1шт.

15

32032DXA

BRUSH

W/SPRING, distributor

1шт.

16

47427D

NUT

distributor rotor, order 47425DY

1шт.

131181

WASHER, no. 6 cd-pltd lock

1шт.

17

47428DA

ARM

distributor, order 47425DY

1шт.

18

47425DX

ROTOR, distributor, order 47425DY

1шт.

19

49417D

RETAINER, distributor gear cover felt seal

1шт.

20

49418D

SEAL, distributor gear cover felt

1шт.

21

49419D

GASKET

distributor gear cover

1шт.

22

49420DX

PINION

GEAR, distributor, 24 teeth

1шт.

23

47417DX

PINION

distributor rotor, 12 teeth, w/plug

1шт.

24

47453D

GASKET

coil cover

1шт.

25

47452D

STRAP, secondary leadout

1шт.

436652

SCREW, 4-48 x 5/16 slt-pan-hd

1шт.

131093

WASHER, no. 4 cd-pltd lock

1шт.

26

55015D

COVER, condenser hole

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

no. 8-32 x 3/8 cd-pltd slt-rd-hd

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

27

359966R1

GASKET

condenser hole cover

1шт.

28

353171R91

CONTACT

POINT SET, magneto

1шт.

28

407017R91

CONTACT

POINT SET W/ CONDENSER

1шт.

436692

SCREW,Slotted Pan Hd, #8-32 x 5/16"

no. 8-32 x 5/16 cd-pltd slt-pan-hd

1шт.

29

(Not used in this application)

1шт.

30

(Not used in this application)

1шт.

31

49593D

INSULATOR, coil end

2шт.

32

21394D

WASHER

stationary point support

1шт.

33

47432D

ANCHOR

spring

1шт.

120622

NUT,#8-32

1шт.

133482

SCREW, no. 8-32 x 3/8 cd-pltd slt-fl-hd

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

34

47433DX

CABLE

primary leadout, breaker arm, Serial Range: anchor-condenser

1шт.

35

48339D

CLIP, condenser

1шт.

NLS

NO LONGER SERVICED

no. 8-32 x 1-1/4 cd-pltd slt-fil-hd

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

36

16112DB

GEAR

BODY ASSY, distributor, consists of (1) body (NSS), (1) felt E4216, (1) gasket 47408d, (1) oiler E4295, (1) pin 47424D, (2) pin 51667D, (1) retainer 49424D, (1) seal 49423D, (1) shaft (NSS), (2) spring 51666D

1шт.

37

47449DAY

COVER ASSY

COVER W/STRAP ASSY, coil, consists of (1) cover (NSS), (1) insert (NSS), (1) screw 436652, (1) strap 47452D, (1) washer 131093

1шт.

131997

SCREW, no. 8-32 x 1-1/2 cd-pltd slt-fil-hd

4шт.

38

21314DX

CORE

W/TWO SCREWS 133495, coil

1шт.

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

no. 8-32 x 5/8 cd-pltd slt-fil-hd mach

2шт.

38

47439DAX

COIL ASSY.

COIL W/CORE 57926DX

1шт.

38

57926DX

COIL

W/TWO INSULATORS 49593D & TWO SCREWS 133495

1шт.

39

49416DX

COVER ASSY, distributor gear, consists of (1) cover (NSS), (1) gasket 4919D, (1) gasket 49419D, (1) retainer 49417D, (1) seal 49418D

1шт.

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

8-32 x 1/2 cd-pltd stl-rd-hd

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

40

47425DY

CAP

ROTOR ASSY, distributor, consists of (1) arm 47428DA, (1) nut 47427D, (1) rotor 47425DX, (1) washer 131181

1шт.

41

56066DA

DISTRIBUTOR ASSY, consists of (1) body 6483DAY, (1) cover 49416DX, (1) gear 49420DX, (1) pinion 47417DX, (2) screw 132760, (2) washer 121841

1шт.

132124

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

no. 10-32 x 3/4 cd-pltd slt-fil-hd

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

42

6482DAY

FRAME ASSY, consists of (1) cover 55015D, (1) felt E4226, (1) frame (NSS), (2) gasket 359966R1, (1) post (NSS), (1) race ST601, (1) retainer 47454D, (2) screw 121832, (2) washer 121841

1шт.

43

E4226

FELT, bearing

1шт.

44

47454D

RETAINER, inner bearing felt

1шт.

45

ST601

RACE

outer, rotor shaft ball bearing

2шт.

46

ST602

BEARING

RETAINER W/BALLS, rotor shaft ball bearing

2шт.

47

ST600

BEARING

RACE, inner, rotor shaft ball bearing

2шт.

48

E4A324

FLINGER, oil

2шт.

49

60094D

CAM, breaker

1шт.

50

373892R91

CONDENSER

will work for 21409DB

1шт.

51

359966R1

GASKET

short circuiting terminal insulator

1шт.

52

359704R1

INSULATOR, short circuitig terminal

2шт.

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

3/32 x 1/2 cd-pltd slt-rd-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

38609DA

WASHER, terminal insulator screw

2шт.

53

359965R1

WASHER, terminal

1шт.

54

359967R1

TERMINAL, short circuiting

1шт.

121637

LOCK WASHER

WASHER, 104 light lock

1шт.

55

ST307

BALL BEARING,0.5906" ID x 1.378" OD x 0.315"

BEARING, ball, rotor shaft

2шт.

56

E4A305

SHIM LIGHT, rotor, .002 in.

1шт.

57

E4212

SHIM MEDUIM, rotor, .004 in.

1шт.

58

E4A372

SHIM HEAVY, rotor, .010 in.

1шт.

59

27311D

OILER W/CAP AND SPRING, impulse coupling

1шт.

60

46868D

CLIP

mounting

1шт.

61

353051R91

HOLDER

PACKAGE, oil seal service, consists of (1) seal (NSS), (1) shim (NSS), (2) shim E4212, (2) shim E4A305, (2) shim E4A372, (1) washer (NSS), (1) washer (NSS)

1шт.

62

(Not used in this application)

1шт.

63

(Not used in this application)

1шт.

64

24523D

WASHER

magneto bolt

1шт.

65

47468DA

PIN, impulse coupling stop

1шт.

66

(Not used in this application)

1шт.

67

106749

KEY

no. 3 woodruff

1шт.

68

24610D

WASHER, pawl pin

2шт.

69

30114D

RING, pawl pin snap

2шт.

70

51303D

VALVE SPRING

SPRING, pawl

2шт.

71

351367R91

PAWL W/WEIGHT

2шт.

72

351366R91

HUB W/DISC AND TWO PINS, impulse magneto member, see UNIT A

1шт.

72

363852R91

HUB W/DISC AND TWO PIND, impulse magneto member, see UNIT B

1шт.

73

251555R1

BUTTON

spring end

2шт.

74

47822D

SPRING

magneto coupling

1шт.

75

251558R11

MEMBER, drive

1шт.

76

24603D

WASHER, magneto drive member lock

1шт.

77

251591R1

WASHER, impulse coupling lock

1шт.

78

47470D

NUT, impulse coupling

1шт.

79

46168DB

GASKET

magneto flange

1шт.

80

47455DAR

ROTOR ASSY, consists of (1) cam 60094D, (2) flinger E4A324, (1) keeper 57314D, (1) key 106749, (2) race ST600, (2) retainer ST602, (1) rotor (NSS), (x) shim E4212, (x) shim E4A305, (x) shim E4A 372

1шт.

81

6515DAX

FLANGE ASSY, mounting, consists of (1) flange (NSS), (1) oiler 27311D, (1) oil seal (NSS), (1) pin 47468DA, (1) race ST601, (1) washer (NSS), (1) washer (NSS)

1шт.

173464

SCREW, 1/4-20 x 9/16 slt-fl-hd

4шт.

82

351434R91

MEMBER W/PAWLS ASSY, impulse magneto, see unit A, consists of (1) hub 351366R91, (2) pawl 351367R91, (2) ring 30114D, (2) spring 51303D, (2) 24610D

1шт.

82

363853R91

MEMBER W/PAWLS ASSY, impulse magneto, see unit B, consists of (1) hub 363852R91, (2) pawl 351367R91, (2) ring 30114D, (2) spring 51303D, (2) washer 24610D

1шт.

83

351365R91

ROTOR

UNIT ASSY, impulse rotating, see unit A, consists of (2) button 351555R1, (2) button 251555R1, (1) member 251558R11, (1) member 351434R91, (1) spring 47822D

1шт.

83

363851R91

UNIT ASSY, impulse rotating, see unit B, consists of (2) button 251555R1, (1) member 251558R11, (1) member 363853R9, (1) spring 47822D

1шт.

57755D

GAGE, breaker point

1шт.

21372D

GREASE, magneto, 1 oz. tube

1шт.

359766R91

GREASE, magneto ball bearing, 1 oz. tube, use as required

1шт.

57314D

KEEPER, magneto rotor magnet, usd to protect magnets when the rotor is disassembled from the magneto

1шт.

69398D

VARNISH, electrical insulating, 1 pint

1шт.
