(B-27) - MAGNETO, 6 VOLT

Запчасти Case IH C-123 (B-27) - MAGNETO, 6 VOLT

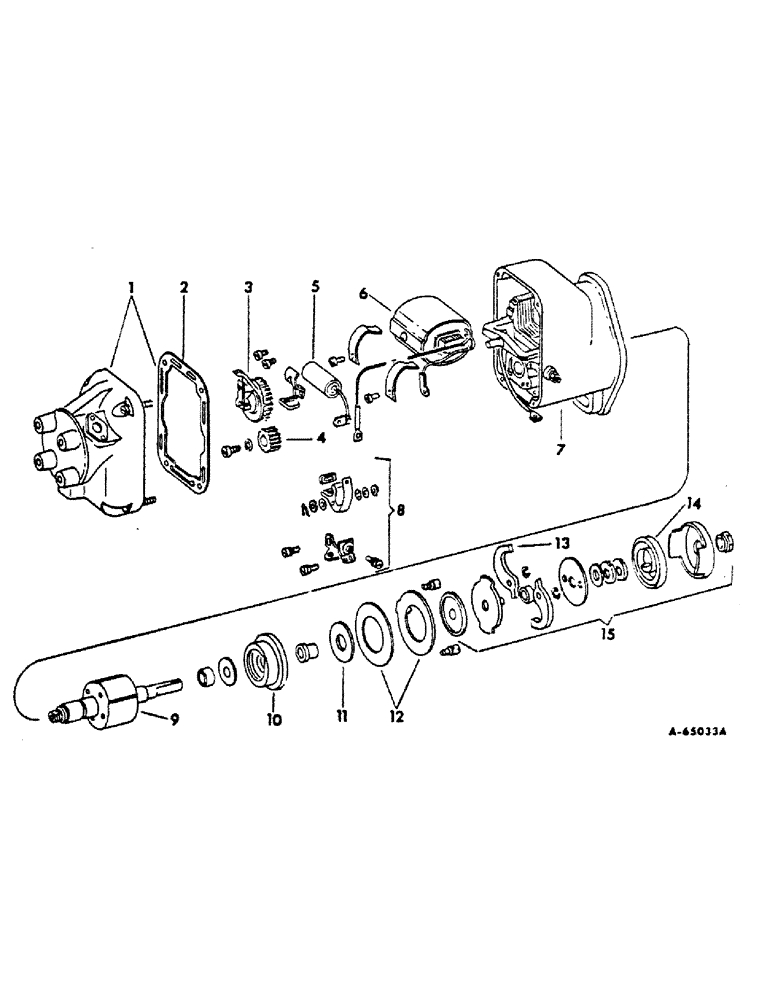

Схема запчастей Case IH C-123 - (B-27) - MAGNETO, 6 VOLT
11
10
2
7
12
5
4
6
15
1
3
13
8
14
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

374867R91

MAGNETO

ASSY, consists of all unmarked parts and those marked unit A, 100 and 130 tractors

1шт.

374864R91

MAGNETO ASSY, consists of all unmarked parts and those marked unit B, 140 tractors

1шт.

1

375302R91

CAP

ASSY, distributor

1шт.

2

375303R1

GASKET KIT

distributor cap

1шт.

3

375304R91

ROTOR

ARM ASSy, distributor

1шт.

4

375307R1

GEAR

pinion

1шт.

5

375306R91

CONDENSER

1шт.

6

375305R91

COIL ASSY.

COIL

1шт.

7

375309R91

HOUSING ASSY

1шт.

8

375308R91

POINT

SET, magneto

1шт.

9

375310R1

ROTOR

1шт.

10

375312R91

CAGE ASSY, bearing

1шт.

11

375313R1

OIL SEAL

1шт.

12

375314R1

STOP ASSY, impulse

1шт.

13

375320R1

ARM, trip

2шт.

14

375321R1

DRIVE ASSY.

SPRING, drive

1шт.

15

375317R91

COUPLING ASSY, impulse, see unit A

1шт.

15

375319R91

COUPLING ASSY, impulse, see unit B

1шт.
