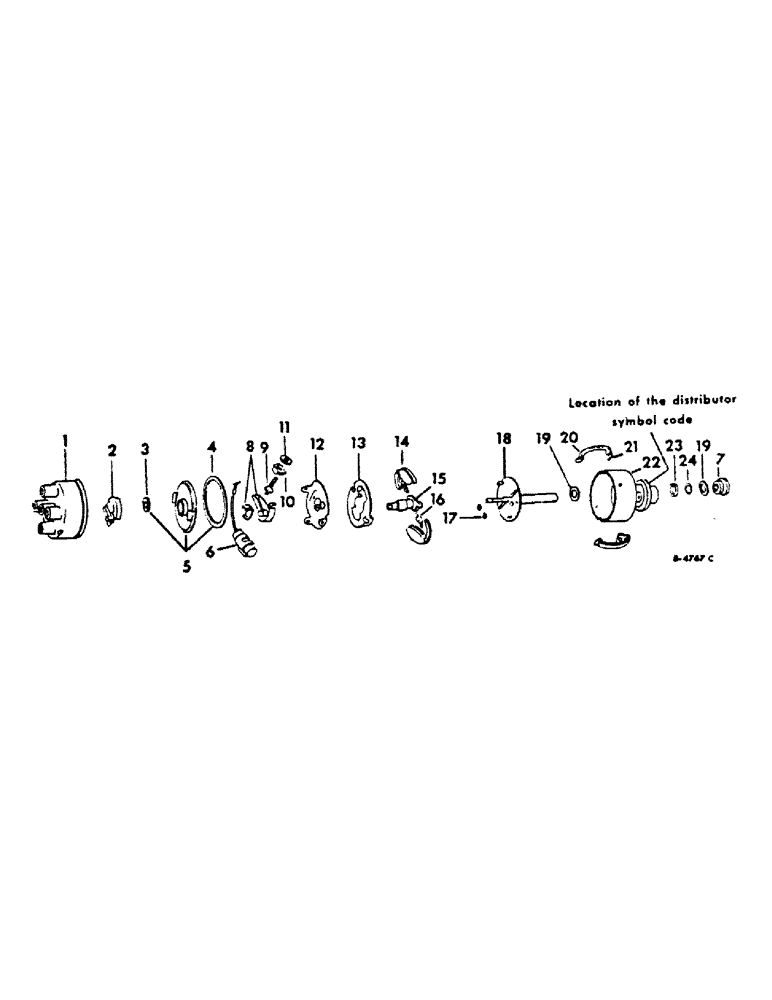

Запчасти Case IH C-123 (B-25) - DISTRIBUTOR

372712R91

DISTRIBUTOR

ASSY, AB symbol, 140 tractors w/serial no. 501 an above for distillate fuel, 140 tractors w/serial no. 501 to 23300 for gasoline fuel

1шт.

357935R91

OIL DISTRIBUTOR

DISTRIBUTOR ASSY, J symbol, 100 and 100HC tractors

1шт.

364696R92

DISTRIBUTOR

ASSY, T symbol, 140 and 140HC tractors w/serial no. 23301 and above

1шт.

366928R91

DISTRIBUTOR

ASSY, X symbol, 130 and 130HC tractors, t-4 crawler tractors and 57 twine or wire balers

1шт.

1

351693R92

DISTRIBUTOR,Cap

CAP ASSY, distributor

1шт.

2

353896R91

ROTOR ASSY.

ROTOR ASSY, distributor

1шт.

3

353901R2

FELT SEAL

FELT, breaker cover seal

1шт.

4

384830R1

GASKET

breaker cover

1шт.

5

384831R91

COVER

ASSY, breaker

1шт.

5

384831R91GV

COVER

Value, Breaker Cover

1шт.

6

353903R92

CONDENSER

ASSY

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

8-32 x 1/4 C-Z slt-fil-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

7

353902R1

GEAR

distributor

1шт.

354552R1

HARDWARE

PIN, distributor gear

1шт.

8

353172R91

BREAKER

POINT SET, distributor

1шт.

120622

NUT,#8-32

Breaker arm spring #8-32

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

8-32 x 3/16 slt-pan-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, , Breaker arm spring #8

1шт.

21394D

WASHER

stationary point

2шт.

9

353907R1

STUD

SCREW, terminal

1шт.

120622

NUT,#8-32

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

21394D

WASHER

terminal

1шт.

10

353906R1

PLUG

INSULATOR, spring anchor terminal

1шт.

11

251538R1

WASHER

terminal insulating

1шт.

12

352277R11

PLATE

ASSY, breaker

1шт.

132756

SCREW, no. 8 x 7/16 znp r/hds mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

352301R1

GUARD

governor weight

1шт.

131954

SCREW,Sl Fil Hd, #8 - 32 x 1/4"

8-32 x 1/4 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

14

353915R91

ARM

ASSY, weight

2шт.

15

355724R91

PACKAGE

CAM W/FELT, 355460R1, ASSY

1шт.

355460R1

FELT SEAL

FELT, cam oil hole

1шт.

16

373955R91

PACKAGE

SET, governor spring, consists of two springs, use w/364696R92

1шт.

16

366942R91

PACKAGE

SET, governor spring, consists of two springs, use w/366928R91

1шт.

16

358108R91

SPRING

SET, governor spring, consists of two springs, use w/357935R91

1шт.

16

372785R91

SPRING

SET, governor spring, consists of two springs, use w/372712R91

1шт.

17

352293R1

SHIM

SPACER, weight arm

4шт.

18

353926R91

SHAFT

ASSY, distributor, use w/364696R92

1шт.

18

354901R91

SHAFT

ASSY, distributor, use w/366928R91 & 357935R91

1шт.

18

362723R91

SHAFT

ASSY, distributor, use w/372712R91

1шт.

19

352298R1

THRUST WASHER

distributor thrust

2шт.

20

353894R1

VALVE SPRING

SPRING, distributor cap

2шт.

21

353895R1

SUPPORT

distributor cap spring

2шт.

132756

SCREW, 8-32 x 7/16 C-Z slt-rd-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

22

353898R11

HOUSING

ASSY, distributor, consists of (1) bushing (NSS), (1) housing (NSS), (1) o-ring 252739R1, (1) plug 125947, (1) retainer 353899R1

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1/8 C-Z slt-hdls pipe

1шт.

23

353899R1

STOP

RETAINER, distributor shaft oil seal

1шт.

24

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

1шт.

373577R91

KIT

PACKAGE, distributor shaft bushing, consists of (1) bushing 353921R1

1шт.

21372D

GREASE, distributor, 1 oz. tube

1шт.
