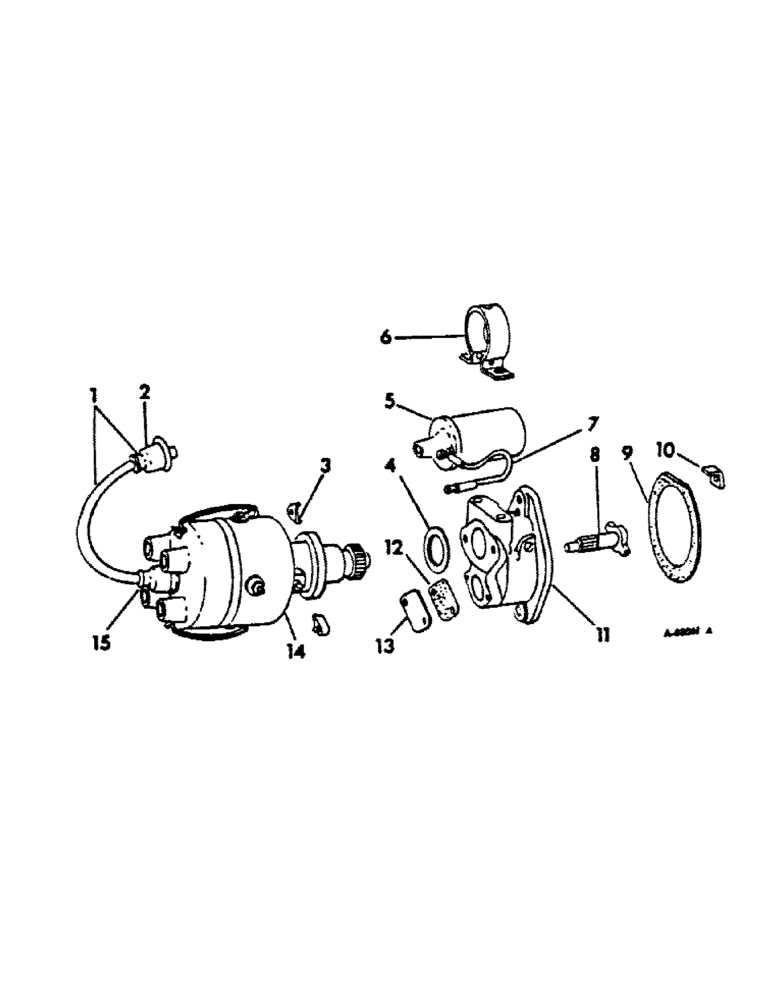

Запчасти Case IH C-123 (B-24) - BATTERY IGNITION UNIT

1

CABLE ASSY, coil to distributor, engines w/serial no. 133583 and above furnish package 70218C91

1шт.

1

373167R91

CABLE

ASSY, coil to distributor, engines w/serial no. 133582 and below

1шт.

1

356686R92

CABLE

ASSY, coil to distributor, used w/coil 353874R91, 353875R91 and package 356695R92 only

1шт.

2

372875R1

NIPPLE, LUBE

NIPPLE, ignition coil, used w/coil packages 396546R93 and 396547R93

1шт.

2

251253R1

NIPPLE, ignition coil, used w/coil 353874R91 and 353875R91

1шт.

3

353937R1

CLIP

CLAMP, distributor

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x C-Z hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

353936R2

GASKET

distributor

1шт.

5

396546R93

KIT

PACKAGE, ignition coil service, 100, 100HC, 130, 130HC tractors and T-4 crawler tractors, consists of (1) coil w/clamp (NSS), (2) washer 120217, (2) nut 120614, (1) nipple 372875R1

1шт.

5

396547R93GV

COIL

Value, Ignition Coil Kit

1шт.

5

396547R93

PACKAGE

ignition coil service, 140 & 140HC tractors and 57 twine or wire balers, consists of (1) coil w/clamp (NSS), (2) washer 120217, (2) nut 120614, (1) nipple 372875R1

1шт.

5

396547R93GV

COIL

Value, Ignition Coil Assy.

1шт.

5

CLAMP, ignition coil, furnish ignition coil service package 396546R93 or 396547R93

1шт.

177056

HUB

SCREW, 10-32 x 1-1/2 C-Z slt-rd-hd tap

1шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znp P-HDS mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

2шт.

7

357929R92

ELECTRIC CABLE

CABLE, coil to distributor primary

1шт.

8

353934R11

SHAFT

GEAR AND DRIVE SHAFT ASSY, distributor drive

1шт.

9

46168DB

GASKET

distributor drive housing

1шт.

10

46868D

CLIP

distributor mounting

1шт.

11

363749R91

HOUSING

PACKAGE, distributor drive housing & cover service, consists of (1) cover 363764R1, (1) gasket 363765R1, (1) housing (NSS), (2) screw 435429, (2) washer 120217

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , cd-pltd Slotted, Headless, 1/8" NPT

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

363765R1

GASKET

distributor drive housing hole cover, tractors w/o tachometer

1шт.

13

363764R1

COVER

distributor drive housing hole, tractors w/o tachometer

1шт.

435429

SCREW, 10-32 x 9/16 cd-pltd slt-rd-hd mach Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

14

DISTRIBUTOR ASSY, for components see list of parts under details of distributor

1шт.

15

251553R1

BOOT

NIPPLE, distributor cap terminal

1шт.
