Запчасти Case IH C-123 (B-21) - CYLINDER HEAD, VALVE COVER, VALVES AND VALVE LEVERS

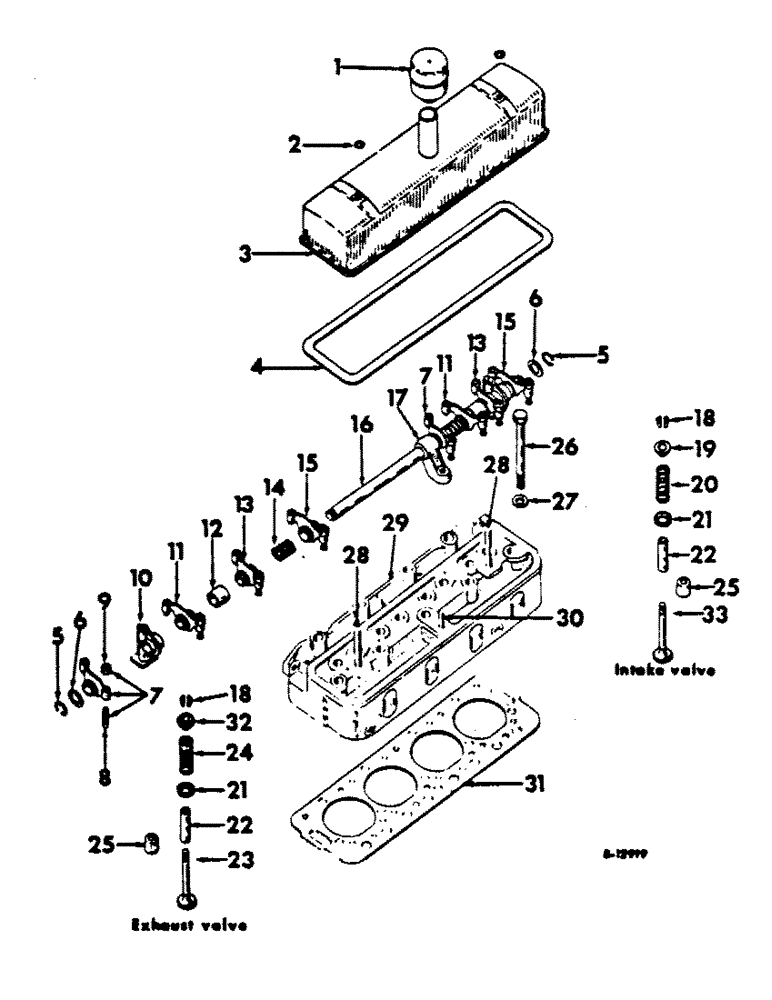

Схема запчастей Case IH C-123 - (B-21) - CYLINDER HEAD, VALVE COVER, VALVES AND VALVE LEVERS
25
5
26
10
7
1
19
25
23
12
6
13
15
22
28
5
24
6
21
18
29
17
16
3
28
13
9
27
21
30
15
20
22
2
7
31
18
4
11
11
14
32
33

Артикул

Название

Примечание

Количество

1

367677R91

BREATHER

ASSY, cyl head, 140 and 140HC tractors and T-4 crawler tractors

1шт.

1

364899R91

BREATHER

ASSY, cyl head, replaces 49049DX and 364899R91, 100, 100HC, 130, 130HC tractors and 57 twine or wire balers

1шт.

2

62866D

WASHER,5/64" Thk x 13/32" ID

valve housing stud nut, optional with 357374R1

2шт.

2

357374R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER, valve housing stud nut, optional with 62866D

2шт.

3

535002R1

HOUSING ASSY, valve lever, replaces 367673R91, 140 and 140HC tractors and T-4 crawler tractors

1шт.

3

HOUSING ASSY, valve lever, discontinued for service, 100, 100HC, 130, and 130HC tractors

1шт.

3

43379DBX

HOUSING ASSY, valve lever, 57 twine or wire balers

1шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

43378DD

GASKET

valve housing

1шт.

5

43375D

RING

valve lever shaft snap

2шт.

6

43374D

SPRING WASHER

valve lever shaft spring

2шт.

7

357291R92

LEVER

W/ADJ SCREW, LH exhaust valve, will work for 43363DBYA

2шт.

8

16067DA

ADJUSTMENT SCREW,3/8" - 24

valve lever adjusting

8шт.

9

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting

8шт.

10

42099DA

BRACKET

valve lever shaft end

2шт.

11

357292R92

LEVER

W/ADJ SCREW, RH intake valve, will work for 43364DBYA

2шт.

12

43.373D

SPACER, valve lever shaft, optional with 365776R1

2шт.

12

365776R1

SPACER, valve lever shaft, optional with 43373D

2шт.

13

357291R92

LEVER

W/ADJ SCREW, LH intake valve, will work for 43363DBYA

2шт.

14

24541D

SPRING

valve lever

2шт.

15

357292R92

LEVER

W/ADJ SCREW, RH exhaust valve, will work for 43364DBYA

2шт.

16

352521R11

SHAFT

ASSY, valve lever

1шт.

172528

PLUG,Exp, 9/16"

9/16 expansion

2шт.

17

6089DA

BRACKET

valve lever shaft center

1шт.

18

42026D

KEY

valve spring collar

16шт.

19

47278D

SEAT, VALVE

SEAT, upper intake valve spring, replaces 42040D

4шт.

20

406723R1

SPRING

intake valve, will work for 366304R1

4шт.

20

25544DA

SPRING, intake valve, distillate or kerosine, 100, 100HC, 130, 130HC, 140 and 140HC tractors

4шт.

21

356588R1

RETAINER

SEAT, valve spring lower

8шт.

22

356583R2

GUIDE

valve

8шт.

23

366303R4

VALVE

exhaust, not used w/100 series tractors

4шт.

23

57798D

VALVE

exhaust, 100 and 100HC tractors

4шт.

23

351647R1

STD EXHAUST VALVE

VALVE, exhaust, distillate or kerosine, 100, 100HC, 130, 130HC, 140 and 140HC tractors

4шт.

24

368450R1

SPRING

exhaust valve, not used w/100 series tractors

4шт.

24

406723R1

SPRING

exhaust valve, will not work for 366304R1, not used on engines equipped w/rotocap, not used w/100 & 100HC tractors

4шт.

24

356842R1

SPRING

exhaust valve, 100 and 100HC tractors

4шт.

24

25544DA

SPRING, exhaust valve, distillate or kerosine, 100, 100HC, 130, 130HC, 140, and 140HC tractors

4шт.

25

386192R1

SEAL

intake and exhaust valve stem, engines w/serial no. 105717 to 117685 8 required, engines w/serial no. 117686 and above 4 required

1шт.

26

20842R1

BOLT

cyl head, replaces 364789R1, machines w/engine serial no. 39400 and above

9шт.

26

24433D

STUD

cyl head, machines w/serial no. 39399 and below

9шт.

4097DA

NUT

cylinder head stud

9шт.

27

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

cyl head bolt, machines w/engine serial no. 39400 & above

9шт.

28

45574D

STUD

valve housing, all machines except T-4 crawler tractor

2шт.

28

373899R1

STUD

valve housing, T-4 crawler tractors

2шт.

29

393508R91

HEAD W/VALVES, cylinder, gasoline, will work for 251173R99

1шт.

Consists of (1) head 366299R13, (16) key 42026D, (4) rotocap 356841R91, (8) seal 386192R1, (4) seat 47267D, (8) seat 356588R1, (4) spring 406723R1, (4) spring 368450R1, (4) valve 366302R2, (4) valve 366303R4

1шт.

29

366299R13

HEAD ASSY, cylinder, gasoline, consists of (8) guide (NSS), (1) head (NSS), (1) plug 438159, (1) stud 355373R1, (2) stud 373899R1

1шт.

29

35164195

HEAD W/VALVES, cylinder, distillate or kerosine, 100, 100HC, 130, 130HC, 140 and 140HC tractors

1шт.

Consists of (8) guide (NSS), (1) head (NSS), (1) plug 438159, (8) seat 356588R1, (2) stud 45574D, (6) stud 251174R1, (1) stud 355373R1, (16) key 42026D, (8) seat 47278D, (8) spring 24544DA, (4) valve 351647R1, (4) valve 351648R1

1шт.

30

355373R1

STUD

valve lever shaft oiler

1шт.

103026

NUT,3/8"-24, G5

1шт.

31

366300R2

GASKET

cyl head

1шт.

32

356841R91

ROTATOR

ROTOCAP ASSY, exhaust

4шт.

32

47278D

SEAT, VALVE

SEAT, upper exhaust valve spring, ngines w/o rotocap

4шт.

33

366302R2

VALVE

intake, not used w/100 series tractors

4шт.

33

57797D

VALVE

intake, 100 and 100HC tractors

4шт.

33

351648R1

VALVE

intake, distillate or kerosine, 100, 100HC, 130, 130HC, 140, and 140HC tractors

4шт.

356840R91

ATTACHMENT, valve rotator, 100 and 100HC tractors, consists of (4) rotocap 356841R91, (4) spring 356842R1

1шт.

368449R91

ROTATOR

PARTS ACCESSORY, valve rotator, 130, 130HC, 140, 140HC and T-4 crawler tractors, consists of (4) rotocap 356841R91, (4) spring 368450R1

1шт.

Выбрано товаров: 60
