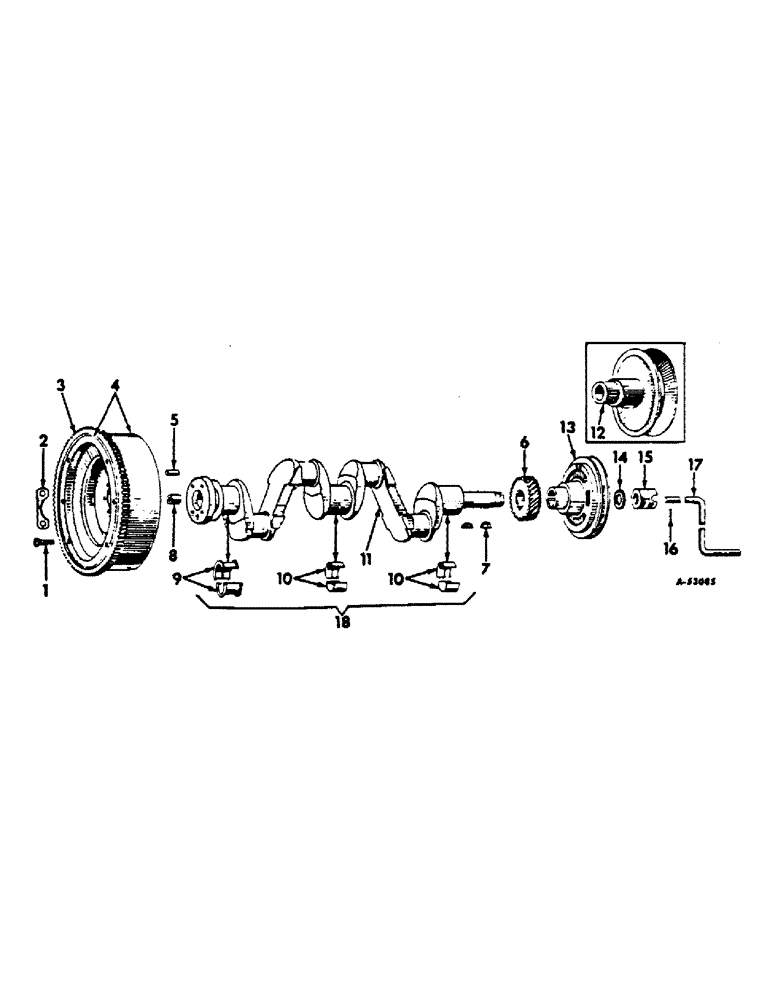

Запчасти Case IH C-123 (B-19) - CRANKSHAFT AND RELATED PARTS

1

25238R1

SCREW,Hex, 3/8"-24 x 1 1/8", G8, Full Thd

BOLT, 3/8-24 x 1-1/8 PHC hex-hd flywheel, 100, 100HC, 130, 130HC, 140, and 140HC tractors

1шт.

1

49123D

BOLT, flywheel, 57 twine or wire balers

4шт.

1

560172R1

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 8

flywheel, T-4 crawler tractors

4шт.

2

46349D

LOCK

flywheel bolt

2шт.

3

55755DB

SLEWING RING

GEAR, flywheel ring, 90 teeth, 100, 100HC, 130, 130HC, 140 and 140HC tractors

1шт.

3

13456VA

GEAR

flywheel ring, 112 teeth, 57 twine or wire balers and T-4 crawler tractors

1шт.

4

351217R31

FLYWHEEL

W/RING GEAR, 100, 100HC, 130, 130HC, 140 and 140HC tractors

1шт.

4

372436R11

FLYWHEEL W/RING GEAR, 57 twine or wire balers

1шт.

4

635093R11

FLYWHEEL W/RING GEAR, T-4 crawler tractors, for use w/standard transmission, torque amplifier or reverser

1шт.

4

635094R11

FLYWHEEL W/RING GEAR, T-4 crawler tractors, for use w/constant running PTO

1шт.

5

24550D

PIN

flywheel dowel

1шт.

6

46870DA

PINION

crankshaft, 33T

1шт.

7

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1/4 x 3/4 woodruff 91

2шт.

8

364527R2

BUSHING,22.23mm ID x 28.64mm OD x 25.65mm L

clutch pilot, optional with 399135R91

1шт.

8

399135R91

BEARING ASSY,0.875" ID x 1.126" OD x "

ASSY, clutch pilot needle, optional with 364527R2

1шт.

9

360221R11

BEARING

ASSY, crankshaft rear, std

1шт.

9

360223R11

CRANKSHAFT BEARING

ASSY, crankshaft rear, .002 U/S

1шт.

9

376641R11

BEARING

ASSY, crankshaft rear, .010 U/S

1шт.

9

376644R11

KIT

BEARING ASSY, crankshaft rear, .020 U/S

1шт.

9

360222R11

CRANKSHAFT BEARING

ASSY, crankshaft rear, .030 U/S

1шт.

10

360216R11

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front and center, std

2шт.

10

360218R11

BEARING SET

ASSY, crankshaft front and center, .002 U/S

2шт.

10

376640R11

BEARING ASSY

ASSY, crankshaft front and center, .010 U/S

2шт.

10

376643R11

BEARING ASSY

ASSY, crankshaft front and center, .020 U/S

2шт.

10

360217R11

CRANKSHAFT BEARING

ASSY, crankshaft front and center, .030 U/S

2шт.

11

368714R91

CRANKSHAFT ASSY, std, 140, 140HC tractors and T-4 crawler tractors, consists of (4) bearing 356304R11, (2) bearing 360216R11, (1) bearing 360221R11, (1) bushing 364527R2, (1) crankshaft (NSS), (1) pin 24550D

1шт.

11

360296R91

crankshaft assy, STD, 100, 100HC, 130, & 130HC tractors, 57 twine or wire balers, consists of (4) bearing 356304R11, (2) bearing 360216R11, (1) bearing 360221R11, (1) bushing 364537R2, (1) crankshaft (NSS), (1) pin 24550D

1шт.

12

6502DC

PULLEY

fan drive, 100, 100HC, 130, 130HC tractors and 57 twine or wire balers

1шт.

13

368665R3

PULLEY

front power take-off, 140, 140HC tractors and T-4 crawler tractors

1шт.

14

16025D

SHIM

LOCK, starting unit, 100, 100HC, 130, & 130HC tractors

1шт.

15

368569R1

NUT

starting, used w/pulley 6502DC

1шт.

15

425-1516

JAM NUT,Jam, 1"-14, G5

1-14 hex jam crankshaft, used w/pulley 368665R3

1шт.

16

15204D

PIN, starting crank

1шт.

17

53385DCX

CRANK

starting, 100, 100HC, 130, 130HC, 140, & 140HC tractors equipped w/magneto ignition w/o starting and lighting system

1шт.

18

NLS

NO LONGER SERVICED

(No longer available for service)

1шт.

69277D

PLUG, flywheel pilot

1шт.
