Запчасти Case IH C-123 (B-18) - CRANKCASE FRONT COVER

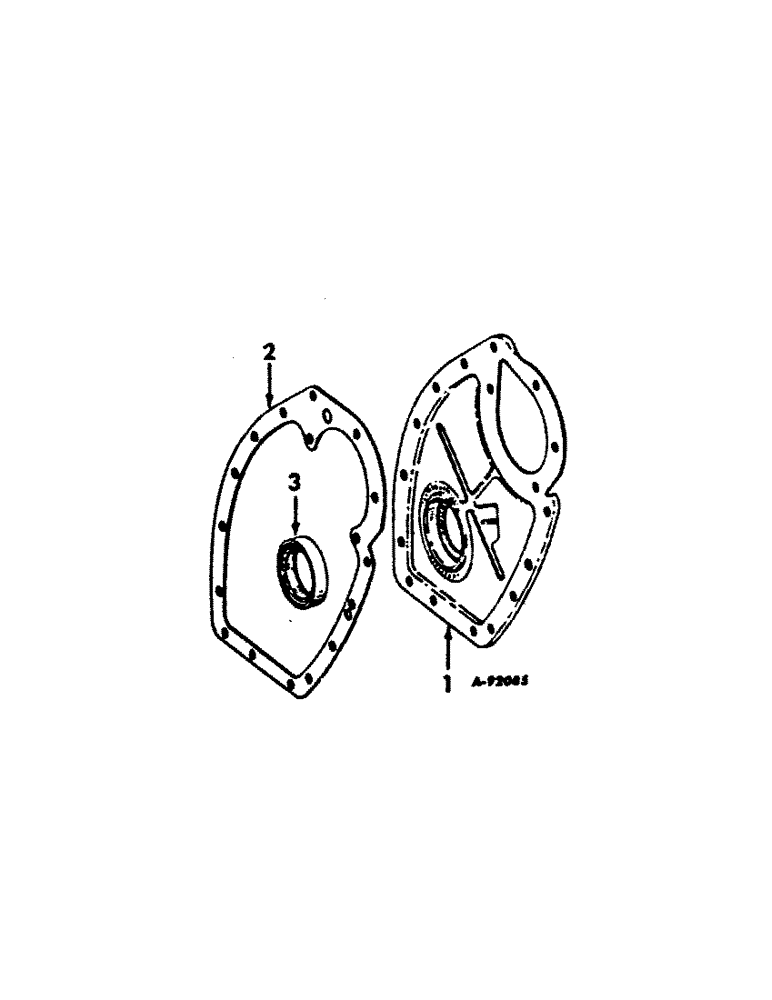

Схема запчастей Case IH C-123 - (B-18) - CRANKCASE FRONT COVER
1
3
2

Артикул

Название

Примечание

Количество

1

46122DDX

COVER

ASSY, crankcase front, machines w/engine serial no. 42289 and below also order seal w/ring 378193R91

1шт.

179814

SPACER

10шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Machines w/ S/N 51767 and above Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Machines w/serial no. 51767 and above 5/16"

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Machines w/serial no. 51766 and below 5/16"

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Machines w/ S/N 51767 and above 3/8"

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga, machines w/engine serial no. 51767 and above

10шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga, machines w/engine serial no. 51766 and below

12шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x 16 ga, machines w/engine serial no. 51767 and above

1шт.

251066R1

STUD, crankcase front cover, machines w/engine serial no. 51766 and below

1шт.

2

46179DC

GASKET

crankcase front cover

1шт.

3

378193R91

SEAL

W/RING, crankcase front cover oil, machines w/engine serial no. 92290 and above

1шт.

3

389407R92

OIL SEAL

crankcase front oil, replaces 49177D, machines w/engine serial no. 42289 and below order seal w/ring 378193R91

1шт.

Выбрано товаров: 13
