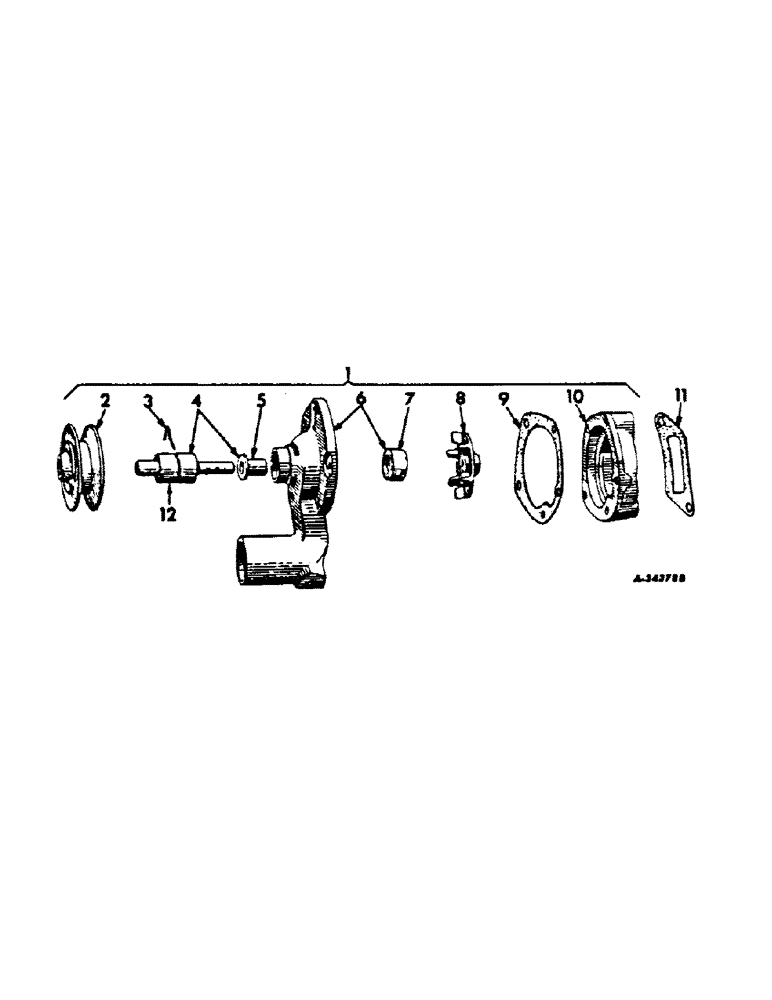

Запчасти Case IH C-123 (B-15) - WATER PUMP, 100, 100HC, 130, 130HC TRACTORS AND 57 TWINE OR WIRE BALERS

1

355760R93

PUMP

ASSY, water

1шт.

1

355760R93GV

WATER PUMP

Value, Water Assy.

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

143162

PLUG

3/8 sq-soc pipe

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

9102D

PULLEY

water pump

1шт.

3

355768R1

RETAINER

water pump brg

1шт.

4

362101R91

SHAFT

AND BEARING W/SLINGER, water pump

1шт.

5

362038R1

SLINGER

water pump

1шт.

6

355763R92

BODY W/SEAl, water pump

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

7

355762R91

SEAL

ASSY, water pump

1шт.

8

355766R1

IMPELLER

water pump

1шт.

9

355769R1

GASKET

water pump

1шт.

10

355764R1

BODY, water pump rear

1шт.

11

68104C1

GASKET

water inlet elbow or water pump

1шт.

12

355767R91

BALL BEARING

ASSY, fan and pump shaft ball

1шт.
