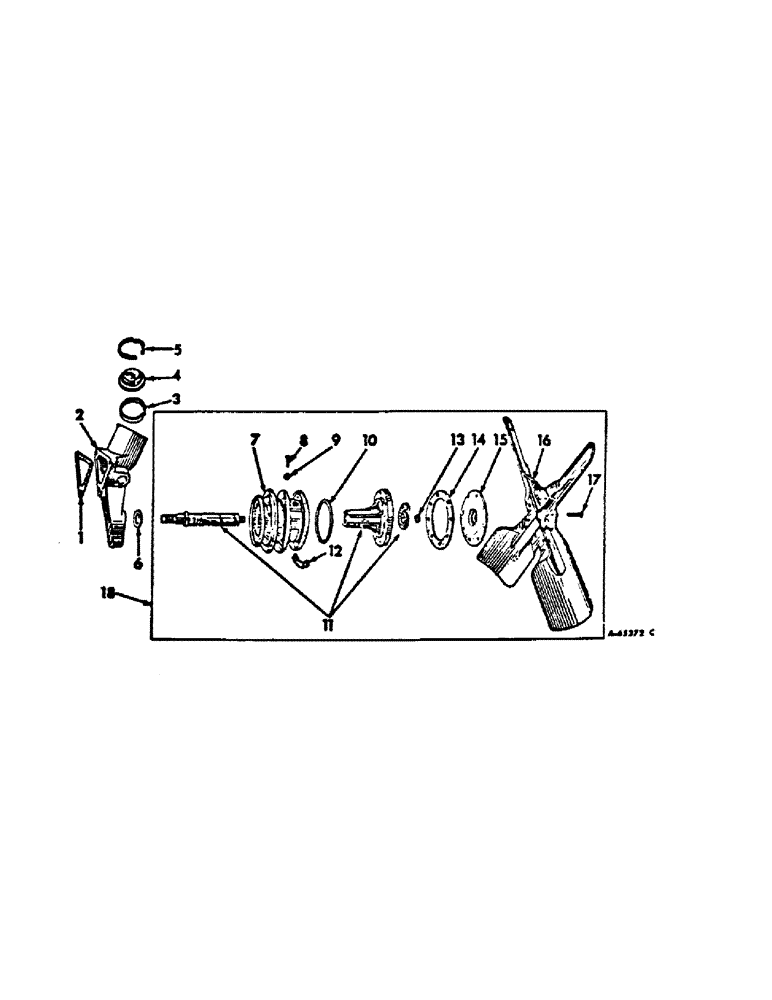

Запчасти Case IH C-123 (B-13) - FAN AND CONNECTIONS, 57 TWINE OR WIRE BALERS

1

43294D

GASKET

fan bracket

1шт.

2

9103DA

BRACKET, fan and water outlet

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 auto-sq-hd pipe

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

377604R1

SPACER, thermostat

1шт.

4

377602R91

PACKAGE, thermostat service

1шт.

5

60711D

RING, thermostat retainer

1шт.

6

43293D

WASHER

SPACER, fan belt

1шт.

7

251645R91

HUB

ASSY, order hub assy 131489C91, consists of Spindle and Bearing Assy, Hub Casting, and Snap Ring

1шт.

7

131489C91

HUB ASSY.

HUB ASSY, replaces 251645R91, composed of

1шт.

131488C1

BEARING,0.625" ID x 1.5" OD

fan pulley and water pump hub (NSS)

1шт.

160094R1

SNAP RING,1.50", Int, #150

RING, SNAP, 1.50", Int, #150

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

8

70206D

SCREW, oil retaining

1шт.

9

27948R1

O-RING,Rect, .25" ID x .375" OD, Cl 5

RING, 1/4 rectangular seal, replaces 70208D

1шт.

10

70207D

GASKET

fan hub

1шт.

11

251647R91

SPINDLE AND BEARNG ASSY, order hub assy 131489C91, consists of (1) cap 70204D, (1) gasket 70200D, (1) gasket 70207D, (1) nut 70209D

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

12

70203D

NUT, double

4шт.

13

9413243

LOCK NUT,3/8"-24, GB

NUT, 3/8-24 CDP P/T spindle lock, replaces 70209D

1шт.

14

70200D

GASKET

fan bearing

1шт.

15

70204D

CAP

fan bearing

1шт.

16

70214D

FAN

BLADE ASSY, fan

1шт.

17

100776

12-24 x 3/4 slt-rd-hd mach

8шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

8шт.

18

70134D

FAN

AND HUB ASSY, order hub assy 131489C91 and fan blades 70214D

1шт.
