Запчасти Case IH C-123 (B-12) - FAN, THERMOSTAT AND WATER PUMP, 140 TRACTORS AND T-4 CRAWLER

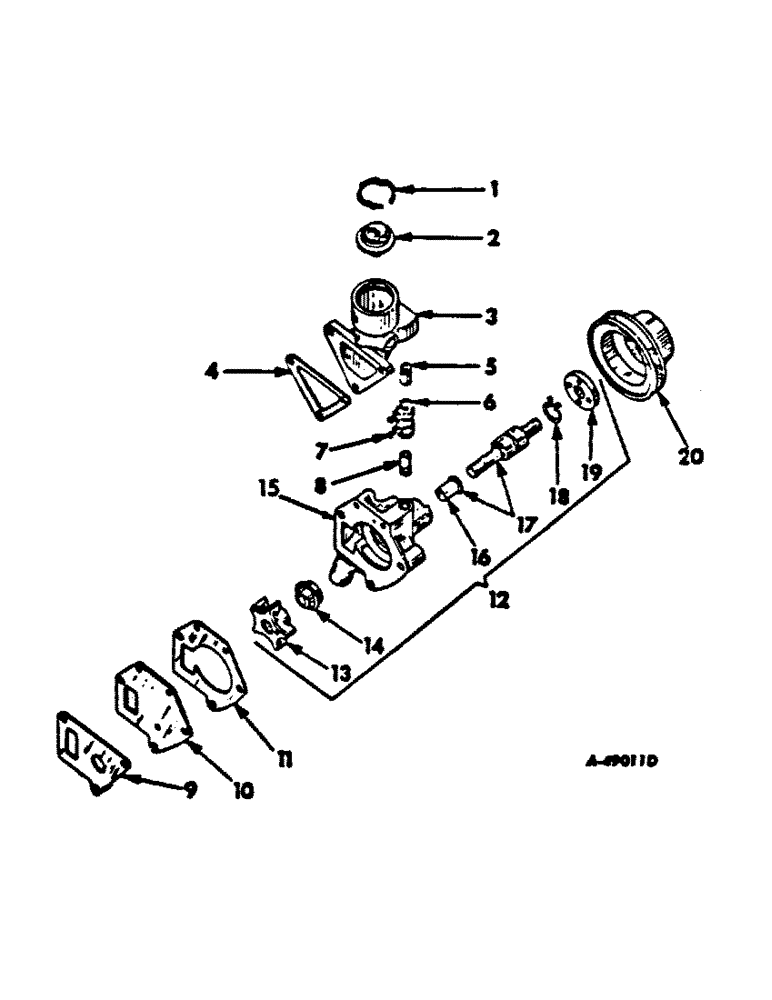

Схема запчастей Case IH C-123 - (B-12) - FAN, THERMOSTAT AND WATER PUMP, 140 TRACTORS AND T-4 CRAWLER
20
3
12
1
18
13
16
7
6
8
4
14
17
5
2
19
10
9
11
15

Артикул

Название

Примечание

Количество

1

257441R2

SEGMENT

RING, thermostat retainer

1шт.

2

369322R91

THERMOSTAT

180 deg

1шт.

3

367679R1

ELBOW

water outlet

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 automotive sq-hd pipe, water outlet elbow, 140 and 140HC tractors

1шт.

4

43294D

GASKET

water outlet elbow

1шт.

5

367680R1

FITTING

PIPE, upper by-pass

1шт.

6

HOSE, by-pass pipe, use 2 in. from bulk roll, 364358C1

1шт.

7

375061R91

CLAMP

by-pass pipe hose

2шт.

8

368556R1

FITTING

PIPE, lower by-pass

1шт.

9

375745R1

GASKET

water pump plate

1шт.

10

368559R1

SUPPORT

PLATE, water pump

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

367687R1

GASKET

water pump body

1шт.

12

375793R92

PUMP

ASSY, water, replaces 367683R91

1шт.

375793R92R

REMAN-WATER PUMP

C-123

1шт.

375793R92C

CORE-WATER PUMP

Return Number

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

186278

BOLT

SCREW, 3/8-16 x 2-5/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

13

367689R1

IMPELLER

water pump

1шт.

14

73296R93

SEAL

ASSY, water pump

1шт.

15

NSS

NOT SOLD SEPARAT

BODY, water pump, not serviced separately, order water pump assy

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto Hex Socket

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-hd pipe

1шт.

16

71351R1

SLINGER

water pump

1шт.

17

369147R91

SHAFT

AND BEARING W/SLINGER, water pump

1шт.

18

102069H

RING

front snap

1шт.

19

368501R2

HUB CAP

HUB, pulley

1шт.

20

367688R1

PULLEY

water pump

1шт.

Выбрано товаров: 33
