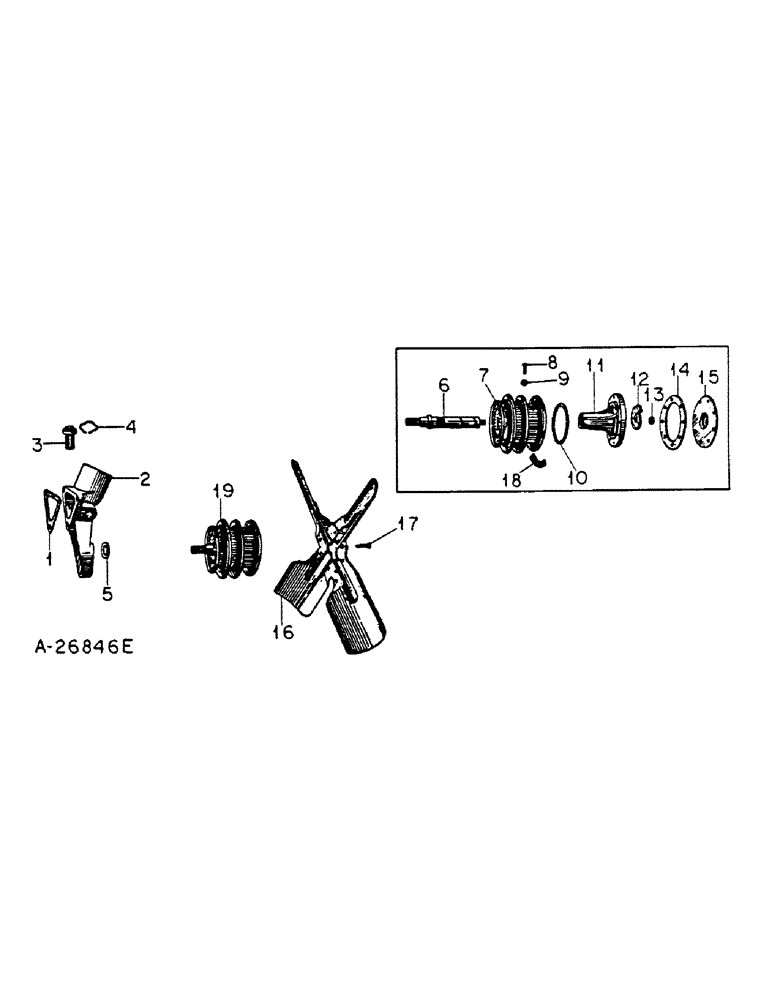

Запчасти Case IH C-123 (B-11) - FAN, THERMOSTAT AND CONNECTIONS, 100 AND 130 TRACTORS

1

43294D

GASKET

fan bracket

1шт.

2

257353R2

BRACKET, fan and water outlet

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

257440R91

THERMOSTAT

165 to 195 deg

1шт.

4

257441R2

SEGMENT

RETAINER, thermostat

1шт.

5

43293D

WASHER

fan shaft

1шт.

6

SPINDLE, fan, order hub assy 131486C91

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

7

357004R91

HUB CAP

HUB ASSY, order hub assy 131486C91, consists of (1) gasket 70200D, (1) gasket 70207D, (1) ring 27948R1, (1) hub (NSS), (1) screw 70206D

1шт.

8

70206D

SCREW, oil retaining

1шт.

9

27948R1

O-RING,Rect, .25" ID x .375" OD, Cl 5

RING, 1/4 rectangular seal, replaces 70208D

1шт.

10

70207D

GASKET

fan hub

1шт.

11

251647R91

SPINDLE AND BEARING ASSY, order hub assy 131486C91, consists of (1) bearing (NSS), (1) cap 70204D, (1) gasket 70200D, (1) gasket 70207D, (1) impeller (NSS), (1) nut 70209D, (1) spindle (NSS)

1шт.

12

IMPELLER, order hub assy 131486C91

1шт.

13

9413243

LOCK NUT,3/8"-24, GB

NUT, 3/8-24 CDP P/T lock, replaces 70209D

1шт.

14

70200D

GASKET

fan bearing

1шт.

15

70204D

CAP

fan bearing

1шт.

16

70214D

FAN

BLADE ASSY, fan

1шт.

17

1007760BS

PULLEY

12-24 x 3/4 slt-rd-hd mach, NOTE-older screws may be a 12-28 thread

8шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

8шт.

18

70203D

NUT, double

4шт.

19

131486C91

HUB ASSY.

HUB ASSY, replaces 357004R91, composed of

1шт.

131488C1

BEARING,0.625" ID x 1.5" OD

fan pulley & water pump hub (NSS)

1шт.

160094R1

SNAP RING,1.50", Int, #150

RING, SNAP, 1.50", Int, #150

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.
