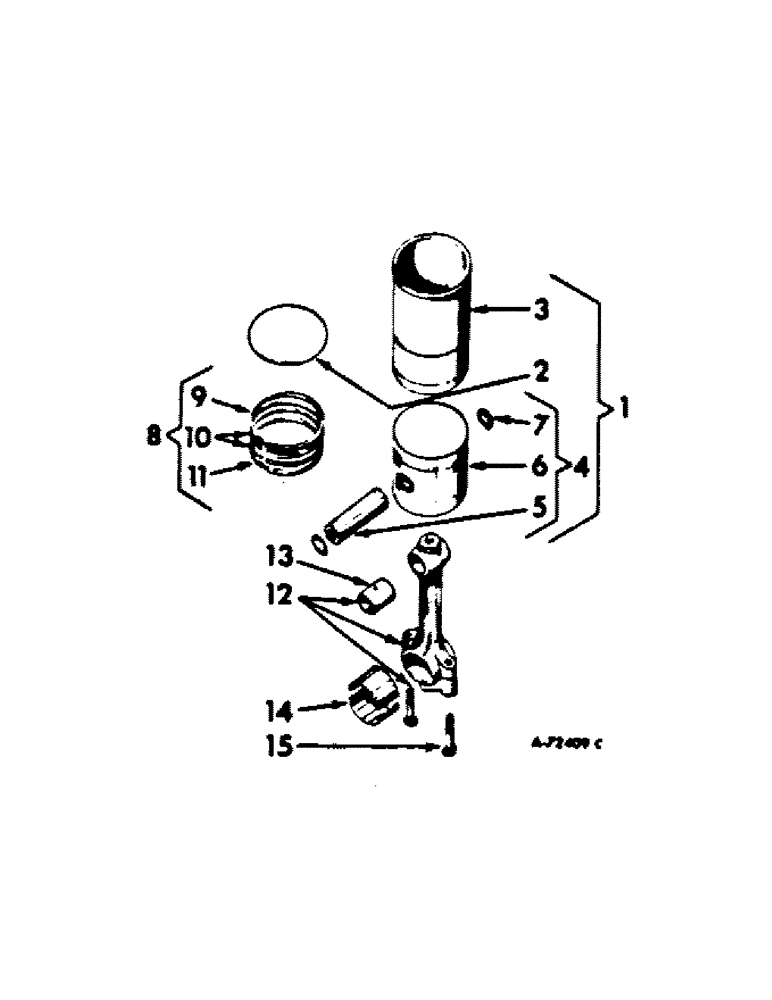

Запчасти Case IH BC-144 (H-05) - CONNECTING RODS, SLEEVES AND PISTONS
№
Артикул
Название
Примечание
Количество
1
3044201R92
SLEEVE CYLINDER
SLEEVE SET, crankcase, consists of four sleeves, 3044202R92
1шт.
1
3044202R92
PISTON
SLEEVE W/PISTON ASSY, cylinder, consists of (1) piston 3044203R93, (1) ring 704100R1, (1) sleeve 704092R1
1шт.
2
704100R1
SEALING RING,5.46mm Thk x 91.06mm ID
RING, cylinder sleeve packing
4шт.
3
704092R1
LINER, ENGINE CYLIND
SLEEVE, cylinder
4шт.
4
3044203R93
PISTON
W/RINGS ASSY, consists of (1) pin 704094R1, (1) piston 3044207R3, (2) retainer 704095R1, (1) ring 3044204R1, (2) ring 3044205R1, (1) ring 705993R1
1шт.
5
704094R1
LARGE PIN
PIN, piston, standard
4шт.
5
706411R1
PIN
piston, .005 oversize
1шт.
6
3044207R3
PISTON
4шт.
7
704095R1
SNAP RING,M28, Int
RETAINER, piston pin
8шт.
8
3044208R91
PACKAGE
RING SET, piston, consists of (4) ring 3044204R1, (8) ring 3044205R1, (4) ring 705993R1
1шт.
9
3044204R1
PISTON RING
RING, compression piston, top groove, not serviced separately, order piston ring set
4шт.
10
3044205R1
PISTON RING
RING, compression piston, second and third groove, not serviced separately, order piston ring set
8шт.
11
705993R1
RING, oil control piston, bottom groove, not serviced separately, order piston ring set
4шт.
12
3061216R91
CONNECTING ROD
ROD ASSY, connecting, consists of our rod assemblies, 3061214R91
1шт.
12
704088R91
ROD, CONNECTING
ROD ASSY, connecting, machines with engine serial no. 2723 and below
4шт.
12
3061214R91
PITMAN ASSY.
ROD ASSY, connecting, machines with engine serial no. 2724 and above
4шт.
13
3043611R1
BUSHING
piston pin, optional w/711045R1 bushing
4шт.
13
711045R1
BUSHING
piston pin, optional w/3043611R1 bushing
4шт.
14
3070536R11
BEARING
ASSY, connecting rod, 2 halves, standard size
4шт.
14
3070538R11
JOURNAL
BEARING ASSY, connecting rod, 2 halves, .015 undersize
4шт.
14
3070537R11
BEARING
ASSY, connecting rod, 2 halves, .030 undersize
4шт.
15
3043216R1
BOLT,3/8" - 24 x 2"
connecting rod
8шт.
Выбрано товаров: 22
