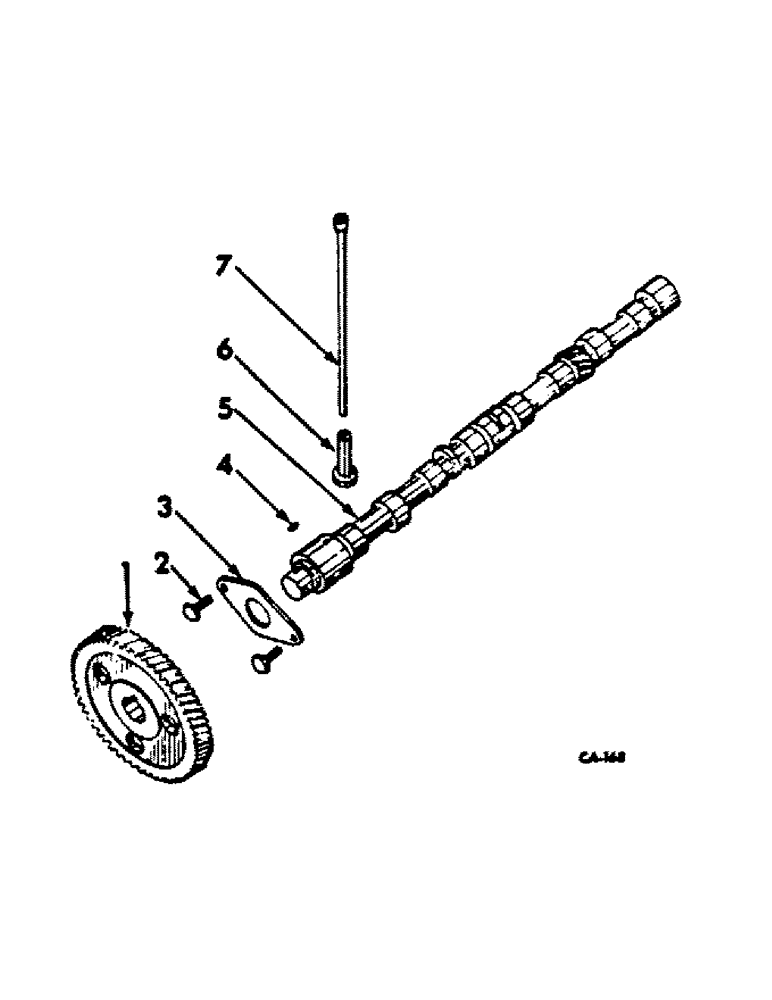

Запчасти Case IH BC-144 (H-04) - CAMSHAFT, CAMSHAFT GEAR AND RELATED PARTS

1

703812R1

GEAR

camshaft, 66 teeth, machines w/engine serial no. 3563 and below

1шт.

1

3063924R1

GEAR

camshaft, 66 teeth, all machines except B-414 tractors w/engine serial no. 3564 and above

1шт.

1

3064085R1

PINION

GEAR, camshaft, 66 teeth, B-414 tractors with engine serial no. 3564 and above

1шт.

2

26058D

SCREW

camshaft thrust plate

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

3

43249D

PLATE

camshaft thrust

1шт.

4

218217

KEY

3/16 x 5/8 Woodruff 61

1шт.

5

709450R1

CAMSHAFT

machines w/engine serial no. 3563 and below

1шт.

5

3063953R91

CAM

SHAFT W/GEAR, 3063924R1, key, 218217 and plate, 43249D, all machines w/engine serial no. 3564 and above except B-414 and 3414 dozer tractors

1шт.

5

3063934R1

CAMSHAFT

B-414 tractors and 3414 dozer tractors with engine serial no. 3564 and above

1шт.

6

704782R1

TAPPET

valve

8шт.

7

3044192R1

ROD

valve push

8шт.
