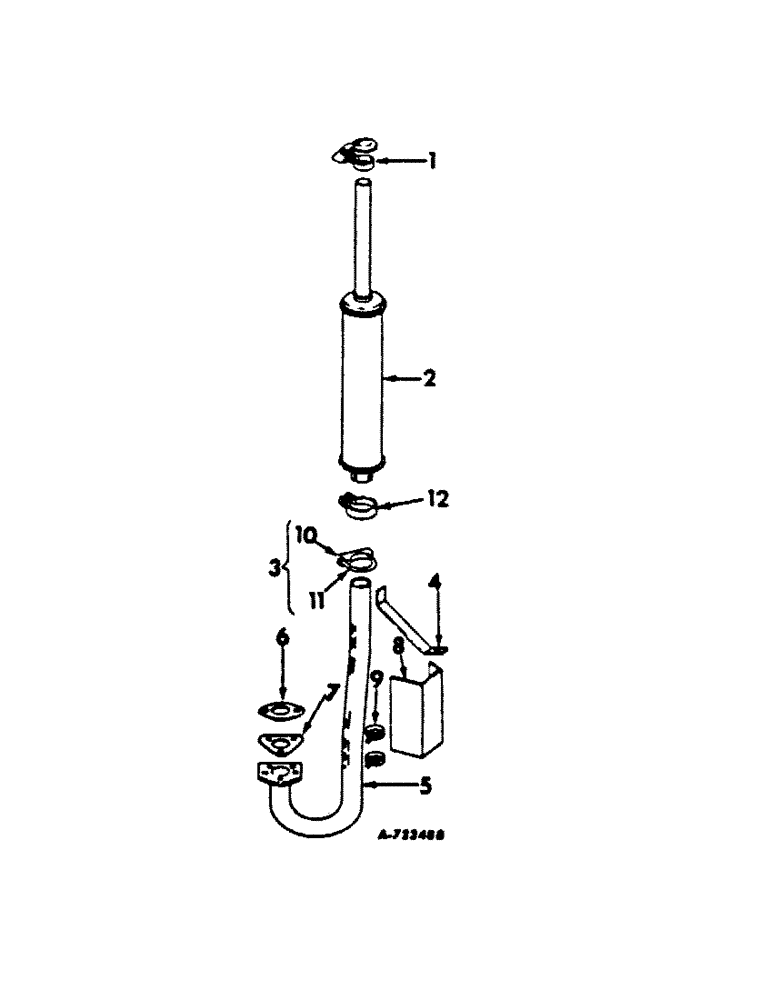

Запчасти Case IH BC-144 (H-30) - EXHAUST SYSTEM, VERTICAL EXHAUST, 3414 LOADER, 3414 DOZER AND 3444 TRACTORS

1

403827R1

CAP

ASSY, exhaust

1шт.

2

403825R1

MUFFLER

exhaust

1шт.

2

403825R1GV

MUFFLER

Value, Muffler

1шт.

3

170572R91

CLAMP

U-BOLT, bracket clamp w/two nuts, 120386 and washers 120214

1шт.

120368

NUT,5/16"-24, G5

Exhaust pipe and muffler clamp 5/16"-24, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

378930R1

BRACKET, exhaust support

1шт.

5

388256R91

PIPE ASSY, exhaust, machines with torque converter

1шт.

5

378928R12

PIPE

ASSY, exhaust, machines w/out torque converter

1шт.

280136

NUT,3/8"-16, G8

Exhaust pipe stud 3/8"-16, G8

2шт.

Used on engines with two stud exhaust pipe mounting.

1шт.

NLS

NO LONGER SERVICED

3шт.

Used on engines with three bolt exhaust pipe mounting.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Used on engines with two stud exhaust pipe mounting.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

Used on engines with three bolt exhaust pipe mounting.

1шт.

6

704613R1

GASKET

exhaust pipe flange

1шт.

Used on engines with two stud exhaust pipe mounting.

1шт.

7

3060566R1

GASKET

exhaust pipe flange

1шт.

Used on engines with three bolt exhaust pipe mounting.

1шт.

8

391668R11

SHIELD ASSY, heat, machines with torque converter

1шт.

9

39149H

HOSE CLAMP

CLAMP, heat shield to exhaust pipe, machines with torque converter

2шт.

10

190910R1

CLAMP

SADDLE CLAMP

1шт.

11

190907R1

BOLT

U-BOLT BRACKET CLAMP

1шт.

12

403826R1

CLAMP

exhaust muffler

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16, 1-1/2 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.
