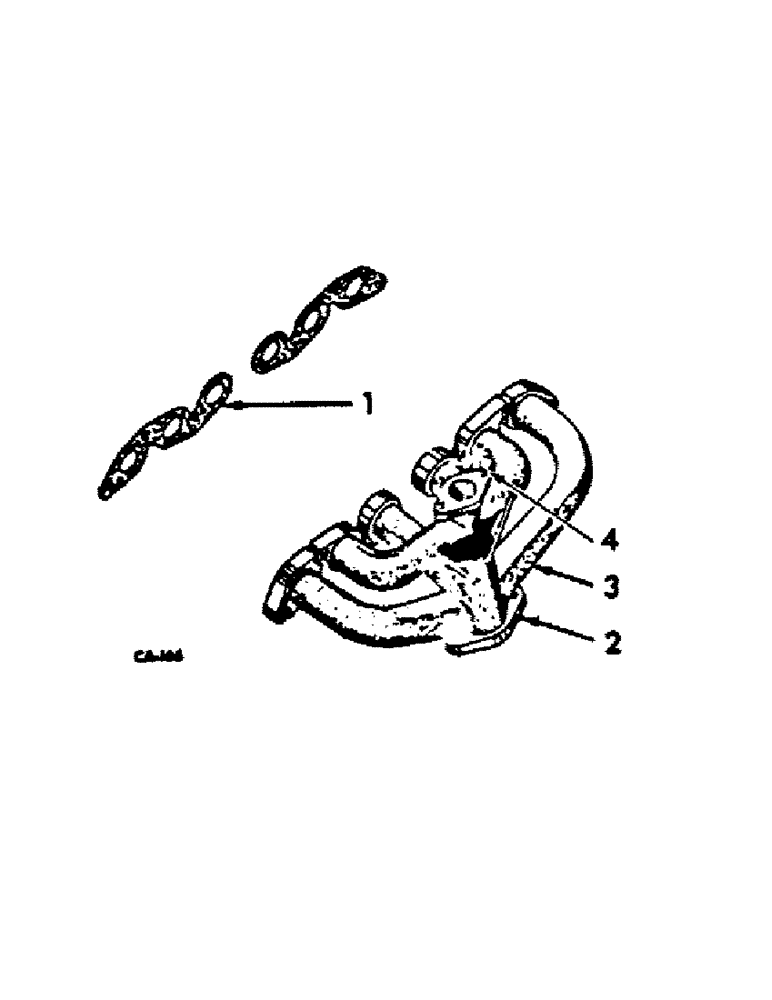

Запчасти Case IH BC-144 (H-28) - MANIFOLD

1

3044210R1

GASKET

intake and exhaust manifold

2шт.

2

3060306R1

INSERT, 3/8 heli-coil threaded

6шт.

3

3044236R91

MANIFOLD

ASSY, intake and exhaust, 2 stud exhaust pipe mounting, consists of (1) manifold 3044237R1, (2) stud 3047734R1, (2) stud 703874R1

1шт.

280136

NUT,3/8"-16, G8

Intake and exhaust manifold stud 3/8"-16, G8

6шт.

24523D

WASHER

intake and exhaust manifold stud

2шт.

3044180R1

STUD

manifold to cylinder head

6шт.

3

3060305R11

MANIFOLD

ASSY, intake and exhaust, 3 bolt exhaust pipe mounting, consists of (2) stud 3047734R1, (3) insert 3060306R1

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24523D

WASHER

intake and exhaust manifold stud

2шт.

4

3047734R1

STUD, carburetor

2шт.
