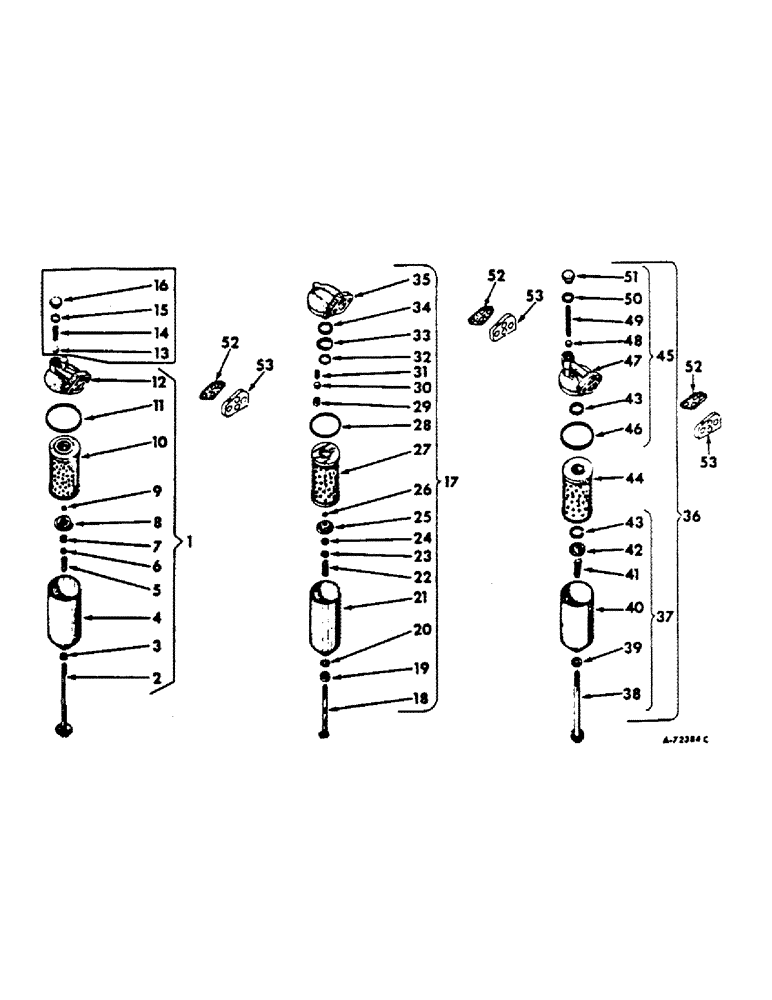

Запчасти Case IH BC-144 (H-27) - LUBRICATING OIL FILTER

1

3042420R92

FILTER

ASSY, oil, telcalemit, order filter assy, 3066851R91

1шт.

179846

LEVER

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

3069976R91

BOLT

ASSY, center

1шт.

3

3042425R1

WASHER

center bolt sealing

1шт.

4

3043289R1

BODY

CONTAINER

1шт.

5

3043291R1

SPRING

pressure plate

1шт.

6

3043292R1

WASHER

pressure plate spring

1шт.

7

3042428R1

WASHER

felt

1шт.

8

3043293R1

PLATE

ASSY, pressure

1шт.

9

3065965R1

RING

CIRCLIP, center bolt

1шт.

10

376364R91

ELEMENT

PACKAGE, element service

1шт.

11

3042423R1

SEALING WASHER

RING, sealing

1шт.

12

3043284R1

HEAD

filter, for filters with external relief valve, in head, order head assy, 3069975R91

1шт.

12

3069975R91

HEAD

ASSY, filter, for filters with internal relief valve, in head

1шт.

13

3043285R1

BALL

relief valve, order head assy, 3069975R91

1шт.

14

3043286R1

SPRING

relief valve, order head assy, 3069975R91

1шт.

15

3043288R1

WASHER, plug, order head assy, 3069975R91

1шт.

16

3043287R1

PLUG, relief valve, order head assy, 3069975R91

1шт.

17

3066851R91

FILTER

ASSY, oil, purolator

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

3069112R1

BOLT

center

1шт.

19

707862R1

DISC

COLLAR, center bolt

1шт.

20

707863R1

O-RING,0.139" Thk x 0.296" ID, -203, Cl 5, 75 Duro

1шт.

21

707866R1

SUMP

1шт.

22

703789R1

SPRING

1шт.

23

3069114R1

WASHER

1шт.

24

3069109R1

WASHER

SEAL, center spindle

1шт.

25

(Not used in this application)

1шт.

26

3069110R1

CIRCLIP

1шт.

27

376364R91

ELEMENT

PACKAGE, element service

1шт.

28

707859R1

SEALING RING

SEAL, head

1шт.

29

(Not used in this application)

1шт.

30

(Not used in this application)

1шт.

31

(Not used in this application)

1шт.

32

(Not used in this application)

1шт.

33

3069108R1

GUIDE

element

1шт.

34

(Not used in this application)

1шт.

35

3069113R91

HEAD

ASSY

1шт.

36

705612R91

FILTER

ASSY, oil, AC, order filter assy, 3066851R91

1шт.

179846

LEVER

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

37

705731R91

SHELL

ASSY, consists of (1) bolt 705732R1, (1) retainer 705734R1, (1) seal 705735R1, (1) shell 705736R1, (1) spring 705737R1, (1) washer 705733R1

1шт.

705732R1

BOLT

center

1шт.

39

705733R1

WASHER

bolt

1шт.

40

705736R1

SHELL

1шт.

41

705737R1

RETAINER

SPRING, element retainer

1шт.

42

705734R1

RETAINER

lower seal

1шт.

43

705735R1

SEAL

element

1шт.

44

376364R91

ELEMENT

PACKAGE, element service

1шт.

45

705738R91

HEAD

COVER ASSY, consists of (1) ball 705743R1, (1) cover 705742R1, (1) gasket 705744R1, (1) gasket 705740R1, (1) plug 705739R1, (1) seal 705735R1, (1) spring 705741R1

1шт.

46

705744R1

GASKET

cover

1шт.

47

705742R1

COVER

1шт.

48

705743R1

BALL

engine relief valve

1шт.

49

705741R1

VALVE SPRING

SPRING, engine relief valve

1шт.

50

705740R1

GASKET, valve plug

1шт.

51

705739R1

PLUG, valve

1шт.

52

706592R1

GASKET

lubricating oil filter base

2шт.

53

3069246R1

SPACER

oil filter mounting

1шт.
