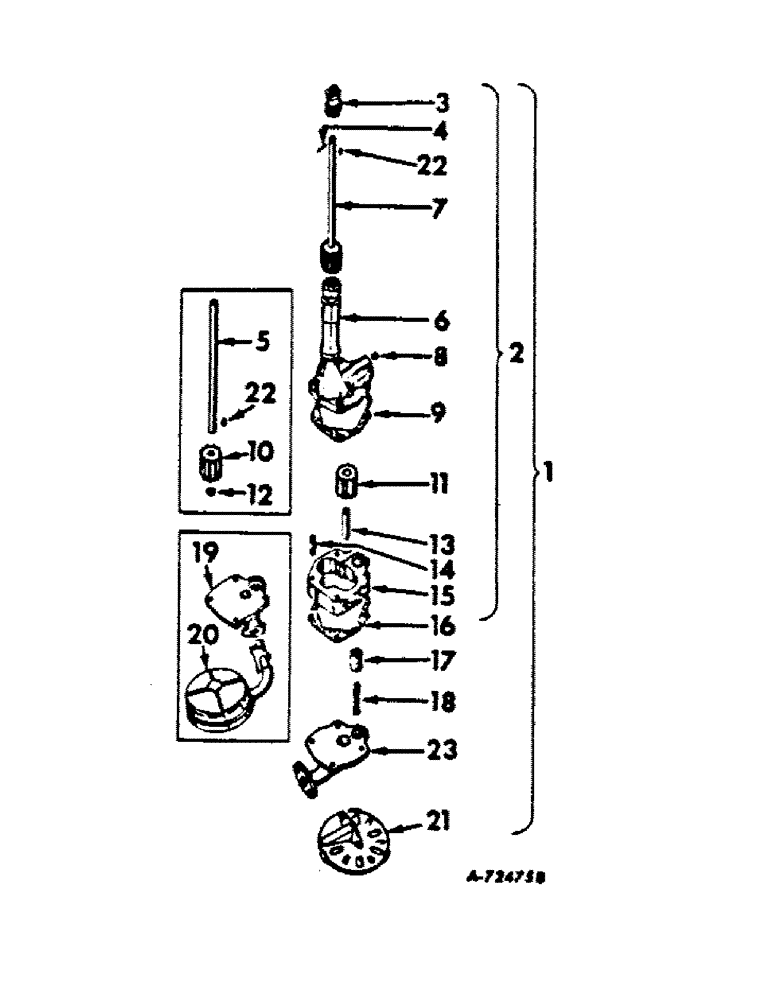

Запчасти Case IH BC-144 (H-26) - OIL PUMP
№
Артикул
Название
Примечание
Количество
1
3043827R93
PUMP
ASSY, oil, machines w/engine serial no. 5594 and below
1шт.
1
3064064R91
PUMP
ASSY, oil, machines w/engine serial no. 5595 and above
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, 3/8-16 x 1-1/8 hex-hd cap
1шт.
115549
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
1шт.
2
3045828R93
BODY
ASSY, oil pump
1шт.
3
3043830R1
GEAR
PINION, oil pump drive
1шт.
4
932204R1
LOCK PIN,M3 x 20, Slotted
PIN, roll, 3 mm dia x 20 mm long
1шт.
5
712095E1
SHAFT, oil pump drive, machines w/engine serial no. 4765 and below
1шт.
6
751831R92
BODY ASSY, oil pump, machines w/engine serial no. 4765 and below
1шт.
6
3042570R92
CASE
BODY ASSY, oil pump, machines w/engine serial no. 4766 and above, consists of (1) body (NSS), (1) case (NSS), (1) gasket 706628R1, (2) pin 932205R1, (1) plug 103883, (1) shaft (NSS)
1шт.
7
3062345R91
SHAFT
ASSY, oil pump drive, machines w/engine serial no. 4766 and above
1шт.
8
103883
PIPE PLUG,Slotted, Headless, 1/8" NPT
PLUG, PIPE, Slotted, Headless, 1/8" NPT
1шт.
9
706628R1
GASKET
oil pump body
1шт.
10
751656R1
GEAR
oil pump body, machines w/engine serial no. 4765 and below
1шт.
11
751657R1
GEAR
oil pump body, machines w/engine serial no. 4765 and below
1шт.
11
3063757R1
GEAR
oil pump body, machines w/engine serial no. 4766 and above
1шт.
12
27999H
RING
RETAINER, oil pump body gear, machines w/engine serial no. 4765 and below
1шт.
13
NSS
NOT SOLD SEPARAT
SHAFT, oil pump idler, not serviced separately
1шт.
14
932205R1
LOCK PIN,M10 x 40, Slotted
PIN, roll, 10 mm dia x 40 mm long
1шт.
15
NSS
NOT SOLD SEPARAT
CASE, oil pump gear, not serviced separately
1шт.
16
711558R1
GASKET
oil pump gear
1шт.
17
751830R2
VALVE
oil pressure regulating
1шт.
18
751829R1
SPRING
oil pressure regulating valve
1шт.
19
751828R1
COVER
oil pump, machines w/engine serial no. 5594 and below
1шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
2шт.
179826
BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
179828
BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5
2шт.
115548
LOCK WASHER,Int Tooth, 5/16"
WASHER, LOCK, Int Tooth, 5/16"
4шт.
20
56108D
FILTER SCREEN
SCREEN, oil pump, machines w/engine serial no. 5594 and below
1шт.
108635
PIN,1/8" x 1 1/8"
Split (Cotter), 1/8" x 1 1/8"
1шт.
21
3064062R91
FILTER SCREEN
SCREEN, oil pump, machines w/engine serial no. 5595 and above
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
22
126-111
WOODRUFF KEY,#5, 1/8" x 5/8", HT
KEY, 1/8 x 5/8 Woodruff 5, machines w/engine serial no. 4765 and below
1шт.
23
3064061R1
COVER
oil pump, machines w/engine serial no. 5595 and above
1шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
2шт.
179826
BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
179828
BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5
2шт.
115548
LOCK WASHER,Int Tooth, 5/16"
WASHER, LOCK, Int Tooth, 5/16"
4шт.
Выбрано товаров: 39
