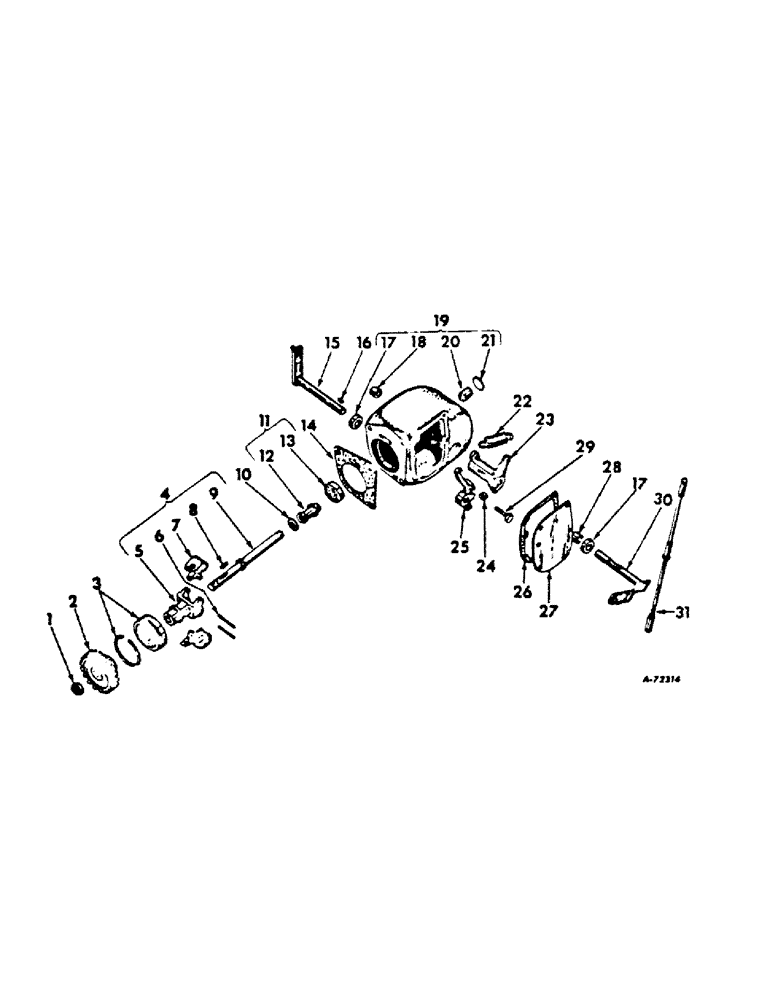

Запчасти Case IH BC-144 (H-24) - GOVERNOR AND CONNECTIONS

1

451074

NUT, 9/16-18 type LIJ hex. jam

1шт.

2

3043832R1

GEAR, governor, 33 teeth

1шт.

3

ST289

BEARING, BALL,25mm ID x 62mm OD x 17mm W

BALL BEARING, governor shaft

1шт.

4

3043838R91

WEIGHT

CARRIER AND WEIGHT ASSY, governor

1шт.

5

48256DA

CARRIER

governor weight

1шт.

6

45656DA

PIN,6.35mm OD x 38.1mm L

governor weight

2шт.

7

3043837R1

WEIGHT, governor

2шт.

8

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

9

3043836R1

SHAFT, governor

1шт.

10

3043835R1

WASHER, governor sleeve thrust

1шт.

11

351910R91

BEARING ASSY

SLEEVE ASSY, governor and bearing

1шт.

12

48250D

SLEEVE

governor

1шт.

13

ST506

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

BEARING, governor thrust ball

1шт.

14

3044212R1

GASKET

governor housing

1шт.

15

3043840R91

LEVER ASSY, governor speed change

1шт.

16

106749

KEY

1/8 x 1/2 Woodruff 3

1шт.

17

45667D

SEAL

governor housing oil

2шт.

18

3043848R91

BEARING, rockshaft RH

1шт.

19

3043849R11

HOUSING ASSY, governor

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

3шт.

20

48227D

BUSHING

governor housing

1шт.

21

41-3014

PLUG,Exp, 7/8"

7/8 dia expansion

1шт.

22

3045514R1

SPRING, governor

1шт.

23

3043847R11

LEVER W/TWO PINS, 48254D, governor rockshaft

1шт.

3043842R1

SCREW, 3/16 x 7/8 hex-soc-hd cap

1шт.

48254D

PIN, governor rockshaft lever thrust

2шт.

115546

WASHER,Int Tooth, #12

LOCK, Int, Tooth, #12

1шт.

24

3043843R1

KEY, governor rockshaft lever

1шт.

25

3043841R1

LEVER, governor spring

1шт.

109084

NUT,1/4"-20, G5

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

3044211R1

GASKET

governor housing cover

1шт.

27

3043833R1

COVER, governor housing

1шт.

10958D

SCREW, governor housing cover

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

28

45775D

NEEDLE BEARING,Needle, 12.74mm ID x 17.48mm OD x 12.7mm W

rockshaft LH

1шт.

29

3048289R1

BOLT, governor spring lever long

1шт.

109084

NUT,1/4"-20, G5

1шт.

30

3043846R91

LEVER

W/PIN, 706204R1

1шт.

706204R1

PIN, carburetor control lever

1шт.

31

3070914R91

ROD

governor to carburetor control, replaces 3043831R91

1шт.
