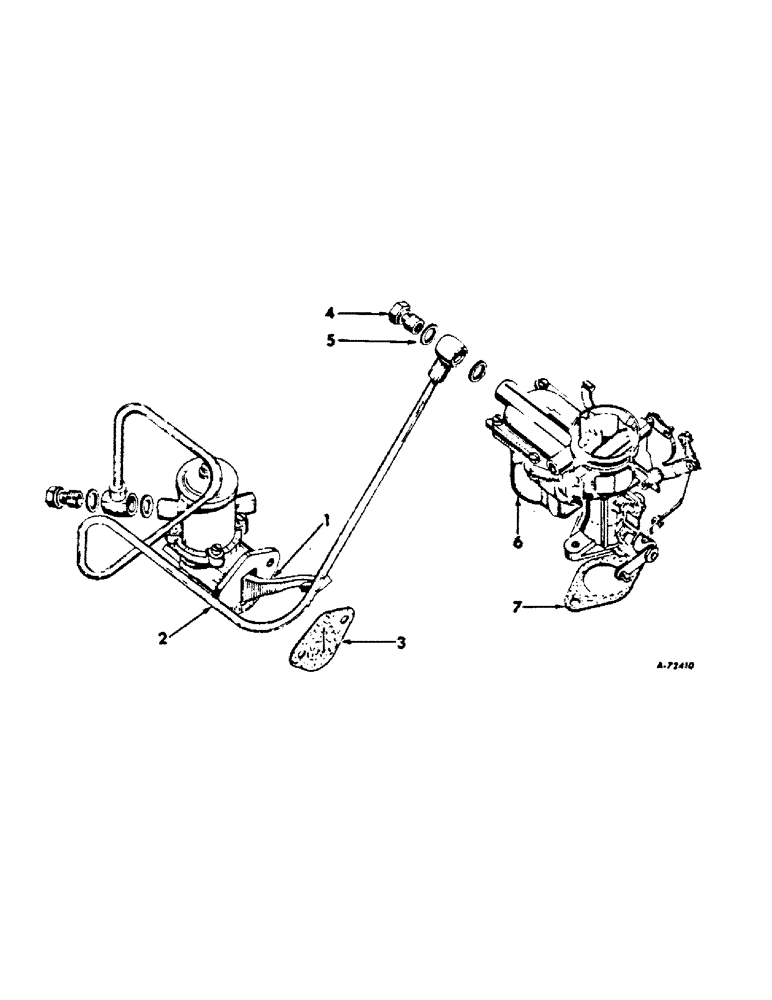

Запчасти Case IH BC-144 (H-18) - CARBURETOR, FUEL PUMP AND PIPES

1

3044197R92

PUMP

ASSY, fuel, for components see list of parts under details of fuel pump

1шт.

3063872R1

BOLT

SCREW, fuel pump

2шт.

2

3044198R94

PIPE

ASSY, pump to carburetor fuel

1шт.

3

3043370R1

GASKET

fuel pump

1шт.

3

3061658R1

GASKET

fuel pump, used in conjunction with gasket, 3043370R1

1шт.

4

708296R1

CONNECTOR, ELEC

BOLT, banjo

2шт.

5

708297R1

GASKET

WASHER, banjo, inlet and outlet

4шт.

6

CARBURETOR ASSY, for components see list of parts under details of carburetor

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

3047295R91

GASKET

carburetor

1шт.
