(H-16) - DISTRIBUTOR WITH TACHOMETER DRIVE GEAR, MACHINES WITH POWER TRAIN NUMBER 6344 AND ABOVE

Запчасти Case IH BC-144 (H-16) - DISTRIBUTOR WITH TACHOMETER DRIVE GEAR, MACHINES WITH POWER TRAIN NUMBER 6344 AND ABOVE

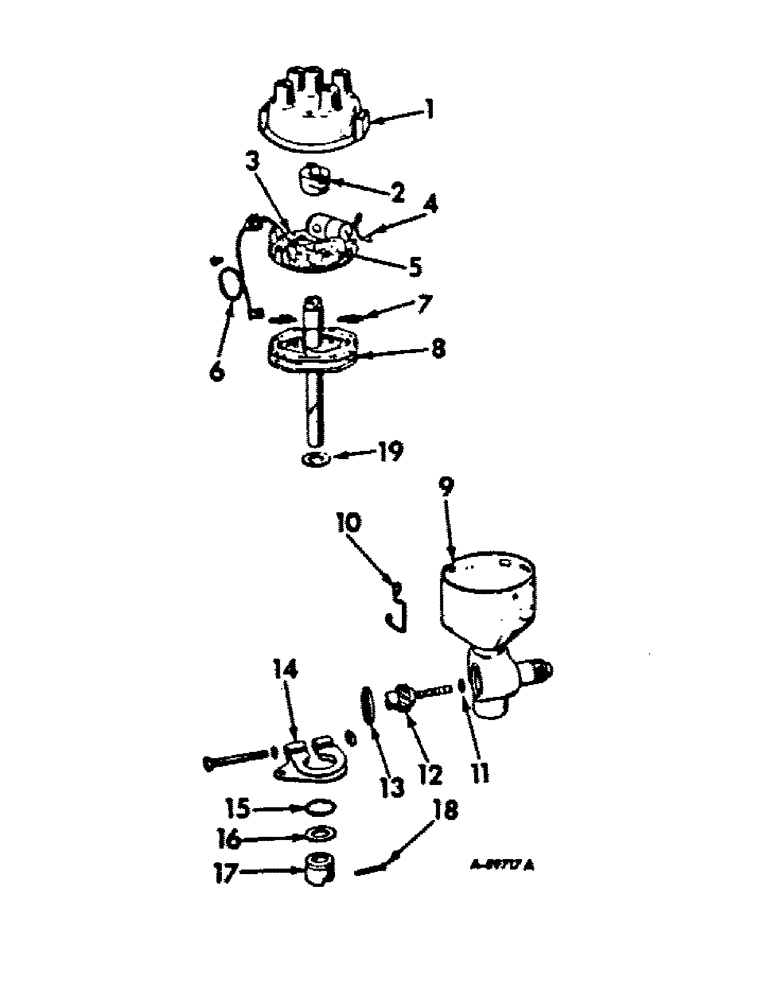

Схема запчастей Case IH BC-144 - (H-16) - DISTRIBUTOR WITH TACHOMETER DRIVE GEAR, MACHINES WITH POWER TRAIN NUMBER 6344 AND ABOVE
2
5
8
12
17
6
18
13
10
16
14
3
1
7
4
11
9
19
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3068973R92

DISTRIBUTOR

ASSY

1шт.

1

811735

COVER ASSY

CAP, distributor

1шт.

2

3069778R1

ROTOR

distributor

1шт.

3

3072997R91

BREAKER

ASSY, includes ref nos. 4, 5 & 6

1шт.

4

3073003R91

CONDENSER

1шт.

3073004R1

SCREW

condenser mounting

1шт.

5

3072998R91

MULTIPOLE CONNECTOR

SET, contact

1шт.

3073002R91

SCREW

contact point locking

1шт.

6

3069884R91

ELECTRICAL WIRE

LEAD W/GROMMET

1шт.

7

3069783R91

SPRING

advance weight set

1шт.

8

3073007R91

SHAFT

MAINSHAFT AND CAM ASSEMBLY

1шт.

9

3074039R91

HOUSING ASSY

1шт.

3064781R1

WICK, felt oil

1шт.

10

3069785R1

CLIP

cap

2шт.

3069786R1

SCREW

cap clip

2шт.

11

3069788R1

WASHER

tachometer drive gear thrust

1шт.

12

3069789R1

GEAR

tachometer drive

1шт.

13

3069790R1

PLUG

1шт.

14

3069791R91

CLAMP ASSY, distributor housing

1шт.

15

3069792R1

SEALING RING

oil

1шт.

16

3069793R1

WASHER

shaft lower

1шт.

17

3069794R1

COUPLING, BREAK AWAY

COUPLING

1шт.

18

3069795R1

PIN, coupling

1шт.

19

3069784R1

WASHER, shaft upper

1шт.
