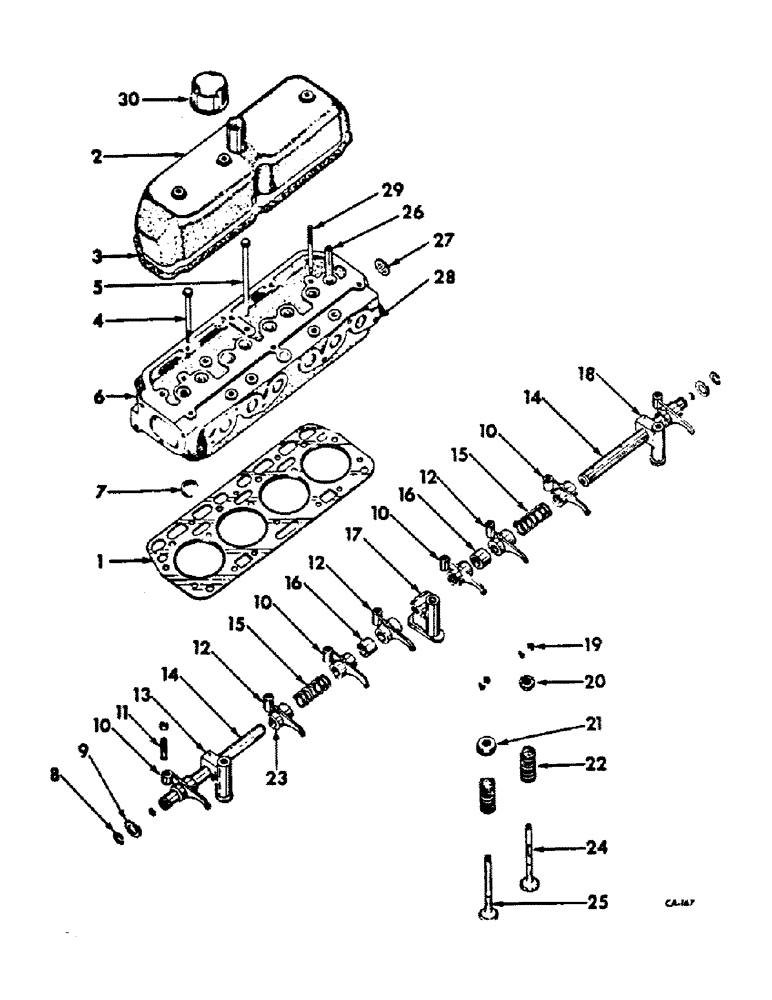

Запчасти Case IH BC-144 (H-12) - CYLINDER HEAD

1

3045854R1

GASKET

cylinder head

1шт.

2

703894R21

COVER

ASSY, valve housing, optional w/3064720R11

1шт.

2

3064720R11

COVER ASSY, valve housing, optional w/703894R21

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

3

3069767R1

GASKET

valve cover, replaces 703896R1

1шт.

4

708331R1

BOLT

BOLT, cylinder head short

13шт.

63116D

WASHER

cylinder head bolt

13шт.

5

708332R1

BOLT,Cyl Hd

cylinder head long

1шт.

63116D

WASHER

cylinder head bolt

1шт.

6

3062529R91

HEAD, w/valves, cylinder, all machines except B-414 tractors, consists of (4) cup 3049610R91, (1) head 3062527R91, (16) lock 3049609R1, (4) rotor 356841R91, (8) spring 3049608R1, (4) valve 3044174R1, (4) valve 3044175R1

1шт.

6

3062527R91

HEAD ASSY, cylinder less valves, all machines except B-414 tractors, consists of (1) guide 3049607R1, (4) guide 3044179R1, (1) head (NSS), (4) insert 3044181R1, (3) plug 444691, (1) plug 172574, (6) insert 3060306R1, (2) stud 3062528R1

1шт.

6

3049604R92

HEAD W/VALVES ASSY, cylinder, B-414 tractors, consists of (4) cup 3049610R1, (1) head 3049605R92, (16) lock 3049609R1, (4) rotator 356841R91, (8) spring 3049608R1, (4) valve 3044174R1, (4) valve 3044175R1

1шт.

6

3049605R92

HEAD ASSY, cylinder less valves, B-414 tractors, consists of (1) guide 3049607R1, (4) guide 3044179R1, (1) head (NSS), (4) insert 3044181R1, (3) plug 444691, (1) plug 172574, (6) insert 3060306R1, (2) stud 703875R1

1шт.

7

3044181R1

INSERT

exhaust valve seat

4шт.

8

43375D

RING

valve lever shaft snap

2шт.

9

43374D

SPRING WASHER

valve lever shaft spring

2шт.

10

3045211R11

LEVER

W/BUSHING, 24564DA, optional w/3073952R1

4шт.

10

3073952R1

LEVER

intake and exhaust valve, optional w/3045211R11, intake and exhaust valve RH

1шт.

11

3108732R1

ADJUSTMENT SCREW

valve lever adjusting, will work for 16067DA

8шт.

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

8шт.

12

3045210R11

LEVER

W/BUSHING, 24564DA, optional w/3073951R1

4шт.

12

3073951R1

LEVER

intake and exhaust valve, optional w/3045210R11, intake and exhaust valve LH

1шт.

13

703886R2

SUPPORT

BRACKET, valve lever shaft front

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, Grooved, 3/16" x 1 1/4", Type B

1шт.

14

703884R21

CAMSHAFT

SHAFT W/PLUG, 172528, valve lever

2шт.

172528

PLUG,Exp, 9/16"

9/16 expansion

2шт.

15

45949D

SPRING

valve lever

2шт.

16

703893R2

SPACER

valve lever

2шт.

17

703885R1

SUPPORT

BRACKET, valve lever shaft center

1шт.

18

703887R2

SUPPORT

BRACKET, valve lever shaft rear

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, Grooved, 3/16" x 1 1/4", Type B

1шт.

19

3049609R1

LOCK

valve spring

16шт.

20

3049610R1

CUP, intake valve spring retainer

4шт.

21

356841R91

ROTATOR

ASSY, exhaust valve

4шт.

22

3049608R1

SPRING

valve

8шт.

23

24564DA

BUSHING

valve lever

8шт.

24

3044174R1

VALVE

intake

4шт.

25

3044175R1

VALVE

exhaust

4шт.

26

3049607R1

GUIDE

intake valve

4шт.

26

3044179R1

GUIDE

exhaust valve

4шт.

27

172574

PLUG,Exp, 1 1/2"

1-1/2 expansion

1шт.

28

3060306R1

INSERT, 3/8 heli-coil threaded

6шт.

29

3062528R1

STUD

rocker shaft end bracket, all machines except B-414 tractors

2шт.

29

703875R1

STUD

rocker shaft end bracket, B-414 tractors

2шт.

30

3049701R91

FILTER, ELEMENT

BREATHER ASSY, optional w/364901R91

1шт.

Consists of (1) cap 3060552R1, (1) clip, retaining 3060553R1, (1) element, long 3060549R1, (1) element, short 3060550R1, (1) tube 3060547R91, (1) washer, cap 3060551R1, (1) washer, element 3060548R1, (1) washer, tube 3060554R1

1шт.

30

364901R91

BREATHER

ASSY, optional w/3049701R91

1шт.

30

364901R91GV

CAP

Value, Breather Assy.

1шт.
