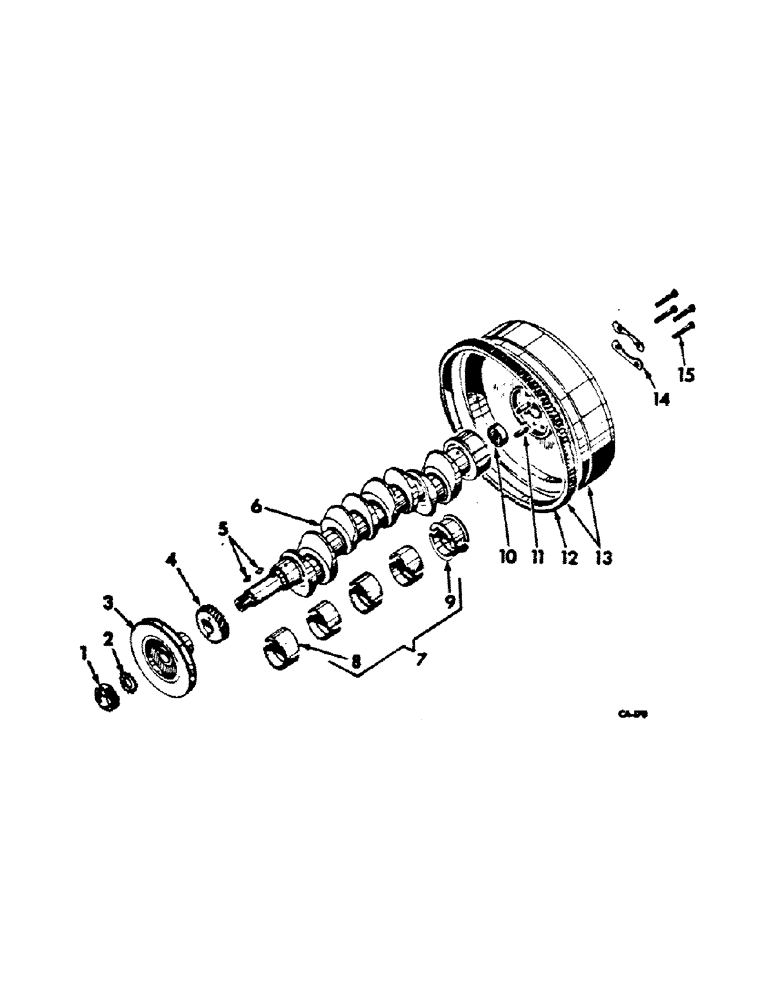

Запчасти Case IH BC-144 (H-11) - CRANKSHAFT, FLYWHEEL AND BEARINGS
№
Артикул
Название
Примечание
Количество
2
(Not used in this application)
1шт.
3
3048133R2
PULLEY
fan drive
1шт.
4
703865R1
GEAR
PINION, crankshaft, 33 teeth, machines with engine serial no. 3563 and below
1шт.
4
3064088R1
GEAR
PINION, crankshaft, 33 teeth, machines with engine serial no. 3564 and above
1шт.
5
218211
DRIVING SPROCKET
1/4 x 3/4 Woodruff 91, crankshaft pinion
2шт.
6
384599R91
PACKAGE
CRANKSHAFT ASSY, standard, consists of (1) bearing ST553, (4) bearing assy 710318R11, (1) bearing assy 708910R91, (4) bearing assy 710768R91, (1) crankshaft (NSS), (2) pin 24550D
1шт.
7
(No longer available for service)
1шт.
8
3064523R11
CRANKSHAFT BEARING
BEARING ASSY, crankshaft front and center, 2 halves, standard
4шт.
8
3064524R11
BEARING LINER
BEARING ASSY, crankshaft front and center, 2 halves, .030 undersize
4шт.
8
3064525R11
BEARING LINER
BEARING ASSY, crankshaft front and center, 2 halves, .015 undersize
4шт.
9
708910R91
BEARING ASSY
crankshaft rear, 2 halves, standard size
1шт.
9
708911R91
BEARING ASSY
crankshaft rear, 2 halves, .030 undersize
1шт.
9
708915R91
BEARING ASSY
crankshaft rear, 2 halves, .015 undersize
1шт.
10
ST553
BEARING, BALL,20mm ID x 47mm OD x 14mm W
BEARING, clutch pilot
1шт.
11
24550D
PIN
flywheel dowel
1шт.
12
704436R1
SPROCKET
GEAR, flywheel ring, machines with torque converter
1шт.
12
3044171R1
GEAR
flywheel ring, machines w/out torque converter
1шт.
13
3045089R11
FLYWHEEL
W/GEAR, 3044171R1 assy, dual clutch, machines w/out torque converter
1шт.
13
3047594R11
FLYWHEEL W/GEAR, 3044171R1 and two pins, 141223, single clutch, machines w/out torque converter
1шт.
13
3069117R11
FLYWHEEL W/GEAR, 704436R1, machines with torque converter
1шт.
14
3069118R2
SHEET
LOCK, flywheel bolt
2шт.
15
709515R1
BOLT,Hex, 7/16" - 20 x 1 1/4"
flywheel, machines with dual clutch
4шт.
15
709517R1
BOLT,Hex, 7/16" - 20 x 1 3/4"
flywheel, machines with single clutch or torque converter
4шт.
Выбрано товаров: 24
