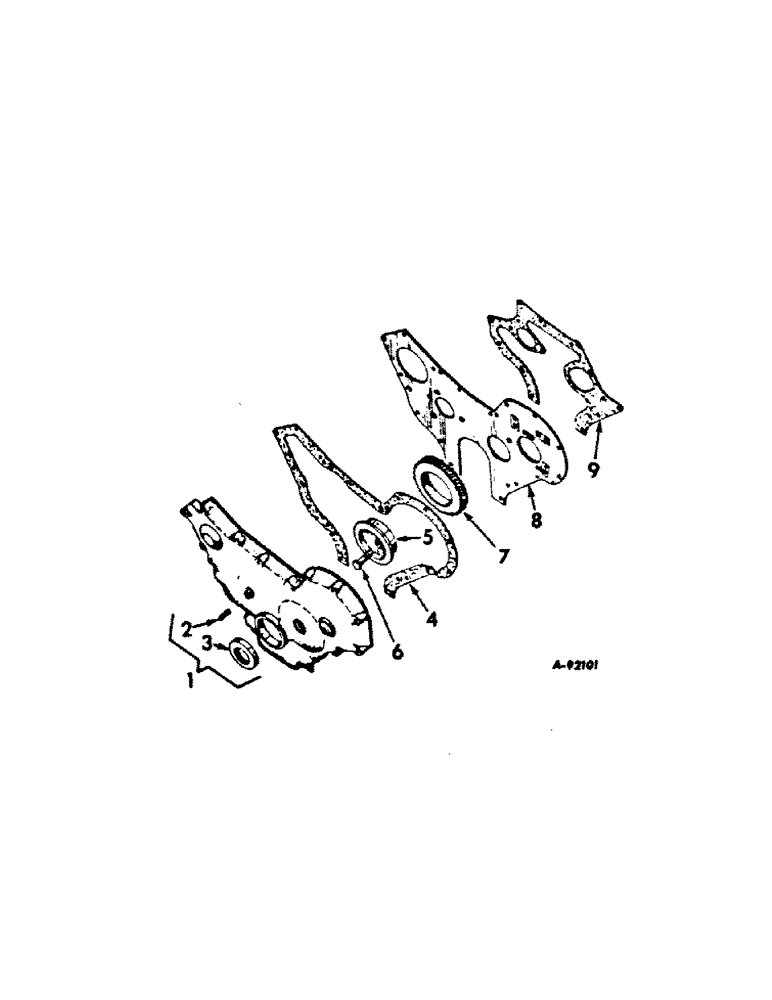

Запчасти Case IH BC-144 (H-10) - CRANKCASE FRONT COVER

1

3044166R92

COVER, w/oil seal, 703844R91 and pointer, 712064R1, crankcase front

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

4шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

2

712064R1

POINTER, timing

1шт.

3

703844R91

OIL RESERVOIR

SEAL, crankshaft front oil

1шт.

4

708285R1

GASKET

crankcase front cover

1шт.

5

3044191R1

SHAFT, idler gear

1шт.

6

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

SCREW, 1/2-10 x 1-7/8 hex-hd cap

1шт.

7

3044190R1

X

GEAR, idler

1шт.

8

3044164R91

PLATE, w/three locks, 46250D and three rivets, 110638, crankcase front

1шт.

3047230R1

SCREW

crankcase front plate

2шт.

9

709903R2

GASKET

crankcase front plate

1шт.
