(H-10[A]) - CRANKCASE OIL PAN

Запчасти Case IH BC-144 (H-10[A]) - CRANKCASE OIL PAN

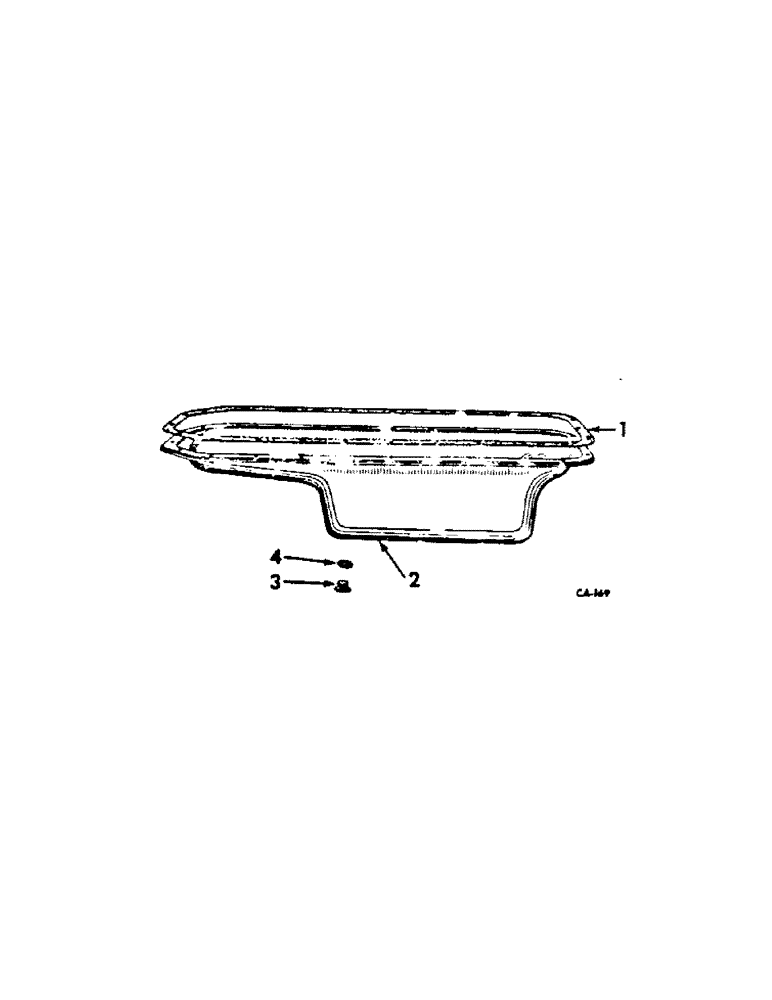

Схема запчастей Case IH BC-144 - (H-10[A]) - CRANKCASE OIL PAN
2
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

703840R1

GASKET

crankcase pan

1шт.

2

704712R21

HOUSING

PAN ASSY, crankcase oil, machines with engine serial no. 5594 and below

1шт.

2

3064063R11

SUMP

PAN ASSY, crankcase oil, machines with engine serial no. 5595 and above

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

14шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

3

359875R1

PLUG

crankcase pan drain

1шт.

4

3405H

GASKET

crankcase pan drain plug

1шт.
