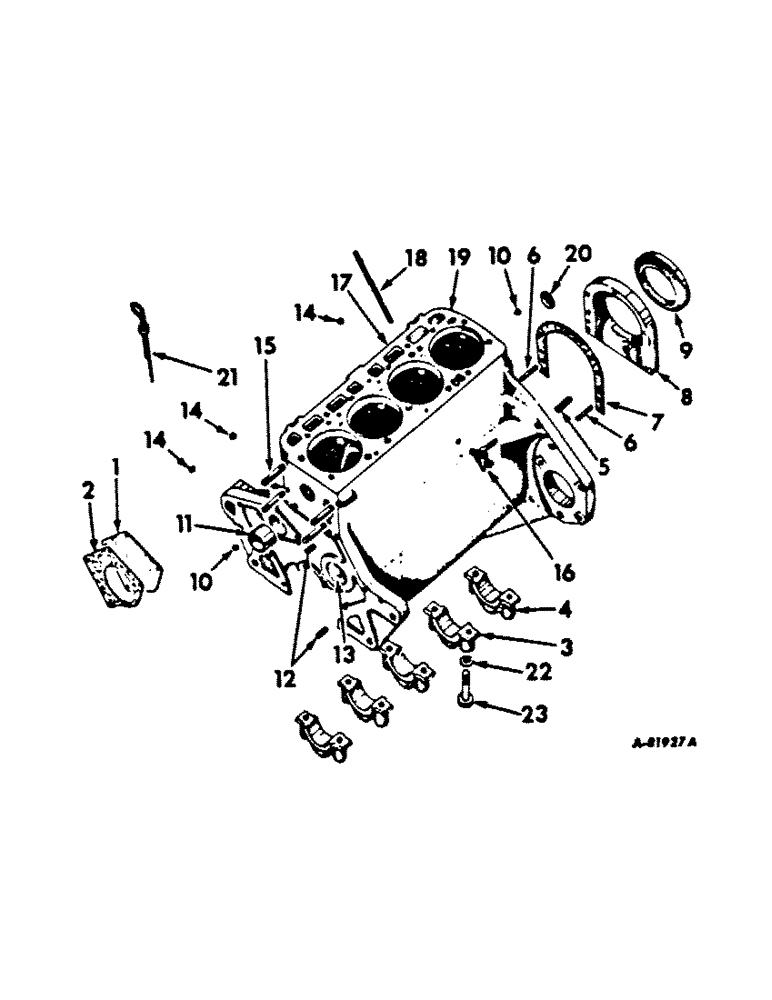

Запчасти Case IH BC-144 (H-09) - CRANKCASE AND RELATED PARTS

1

703850R1

COVER

hydraulic pump opening, B-414 tractors

1шт.

1798285

SCREW, 5/16-18 x 1-7/8 hex-hd cap

3шт.

13-534

BOLT,Hex, 5/16" - 18 x 2-1/8", Gr 5

SCREW, 5/16-18 x 2-1/8 hex-hd cap

1шт.

397

WASHER, 11/32 x 3/4 x 16 ga

1шт.

2

703851R1

GASKET

hydraulic pump

1шт.

3

NSS

NOT SOLD SEPARAT

CAP, crankshaft bearing, not serviced separately, order crankcase assy

1шт.

4

NSS

NOT SOLD SEPARAT

CAP, crankshaft bearing rear, not serviced separately, order crankcase assy

1шт.

5

141287

DOWEL,1/2" x 1 1/2"

PIN, 1/2 x 1-1/2 dowel

2шт.

6

141223

DOWEL,5/16" x 1"

PIN, 5/16 x 1 dowel, crankshaft rear oil seal retainer

2шт.

7

708907R2

OIL SEAL

crankshaft rear oil seal retainer

1шт.

8

708904R1

RETAINER

crankshaft rear oil seal

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

crankshaft rear oil seal retainer

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

9

3072092R91

OIL SEAL

crankshaft rear oil, replaces seal, 708903R91

1шт.

10

103884

PLUG,Slotted, 1/4" NPT

1/4 slotted headless pipe

2шт.

11

703827R1

CAMSHAFT BEARING

BUSHING, camshaft front

1шт.

11

703828R1

CAMSHAFT BEARING

BUSHING, camshaft center

1шт.

11

703829R1

CAMSHAFT BEARING

BUSHING, camshaft rear

1шт.

12

NLS

NO LONGER SERVICED

3/8 x 1 dowel, crankshaft front

2шт.

13

751610R1

INSERT

lock idler gear bolt screw

1шт.

14

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

15

703832R1

STUD

water pump

4шт.

16

106794

VALVE

COCK, 1/4 type A water drain

1шт.

17

3048130R31

CRANKCASE ASSY, all machines except B-414 tractors

1шт.

Consists of (10) bolt 3061211R1, (1) bushing 703827R1, (1) bushing 703828R1, (1) bushing 703829R1, (4) cap (NSS), (1) cap (NSS), (1) insert 751610R1, (14) insert 751834R1, (2) pin 141287, (2) pin 141244, (2) pin 141223, (3) plug 103883, (2) plug 103884, (1) plug 172578, (4) stud 703832R1, (1) tube 751826R1, (10) washer 3061325R1

1шт.

17

3044162R94

CRANKCASE

ASSY, B-414 tractors

1шт.

Consists of (10) bolt 3061211R1, (1) bushing 703827R1, (1) bushing 703828R1, (1) bushing 703829R1, (4) cap (NSS), (1) cap (NSS), (1) cock 106794, (1) crankcase (NSS), (1) insert 751610R1, (14) insert 751834R1, (2) pin 141287, (2) pin 141244, (2) pin 141223, (3) plug 103883, (2) plug 103884, (1) plug 172578, (4) stud 703832R1, (1) tube 751826R1, (10) washer 3061325R1

1шт.

18

751826R1

TUBE,0.375" OD, 5.75" Length

dipstick

1шт.

19

751834R1

INSERT

7/16 heli-coil thread

14шт.

20

172578

PLUG,Exp, 1 3/4"

1-3/4 dia type 1 expansion

1шт.

21

706977R91

DIPSTICK

GAGE, oil level

1шт.

22

3061325R1

WASHER

crankshaft bearing cap bolt

10шт.

23

3061211R1

BOLT,1/2" - 13 x 2.875"

crankshaft bearing cap

10шт.
