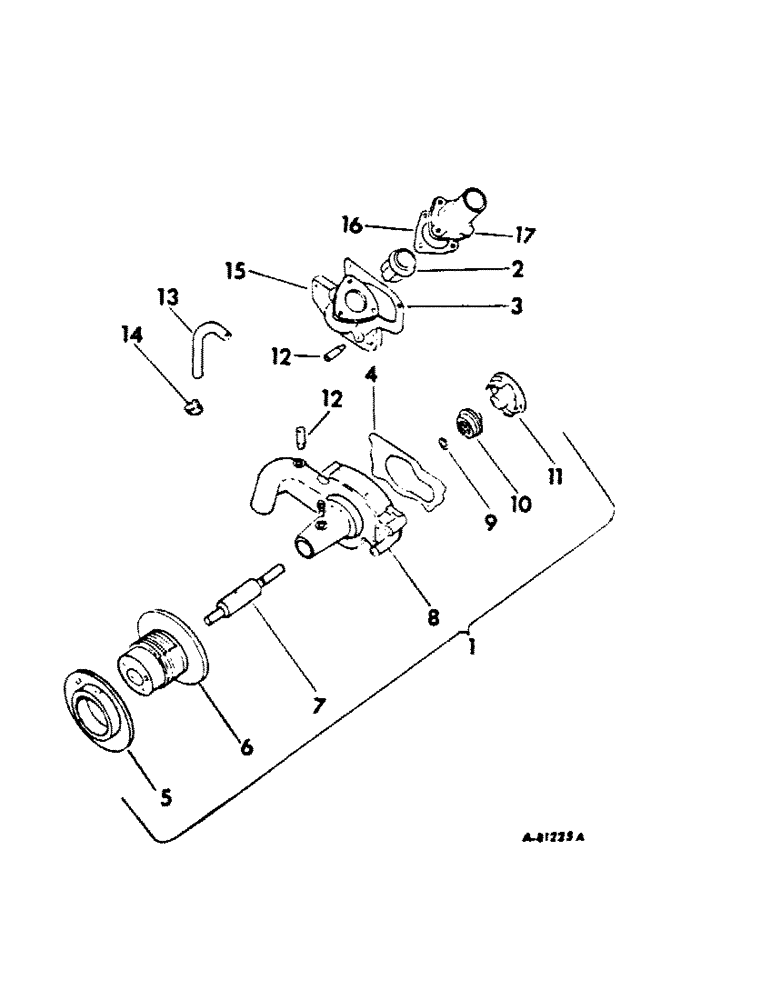

Запчасти Case IH BC-144 (H-07) - THERMOSTAT AND WATER PUMP, MACHINES WITH ENGINE SERIAL NUMBER 6029 AND ABOVE

1

703820R94

WATER PUMP

PUMP ASSY, water, consists of (1) bearing 704217R91, (1) body 704216R4, (1) bolt 704218R1, (1) flange 703825R11, (1) hub 704222R1, (1) impeller 709909R2, (1) o-ring 352221R1, (1) seal 703822R91, (1) tube 3065123R1, (1) washer 103319

1шт.

1

703820R95GV

WATER PUMP

Value, Water Pump Assy.

1шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

3042303R91

THERMOSTAT

170 to 190 deg opening

1шт.

3

703815R1

GASKET

thermostat housing

1шт.

4

703816R1

GASKET

water pump

1шт.

5

703825R11

FLANGE

w/screw, 102831 and nut, 114502 water pump pulley

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

Hdls-dog-pt set Jam, 5/16"-18, G5

1шт.

6

704222R1

HUB

water pump pulley

1шт.

7

704217R91

NO LONGER SERVICED

BEARING, water pump spindle

1шт.

8

704216R4

BODY

water pump

1шт.

704218R1

BOLT,1/4" - 20 x 1/2"

water pump bearing retaining

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

water pump spindle

1шт.

10

703822R91

SEAL

water pump

1шт.

11

709909R2

TURBINE

IMPELLER, water pump

1шт.

12

3065123R1

TUBE

connecting, thermostat by-pass hose

2шт.

13

3065127R1

HOSE,5.20", SAE 20R4 CLASS SC

5.20", SAE 20R4, Class SC, Thermostat By-Pass

1шт.

14

3065128R91

COLLAR CLAMP

CLIP, thermostat by-pass hose

2шт.

15

3069642R11

HOUSING

thermostat

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

3065125R1

GASKET

thermostat housing cover

1шт.

17

3065126R1

COVER

thermostat housing

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.
