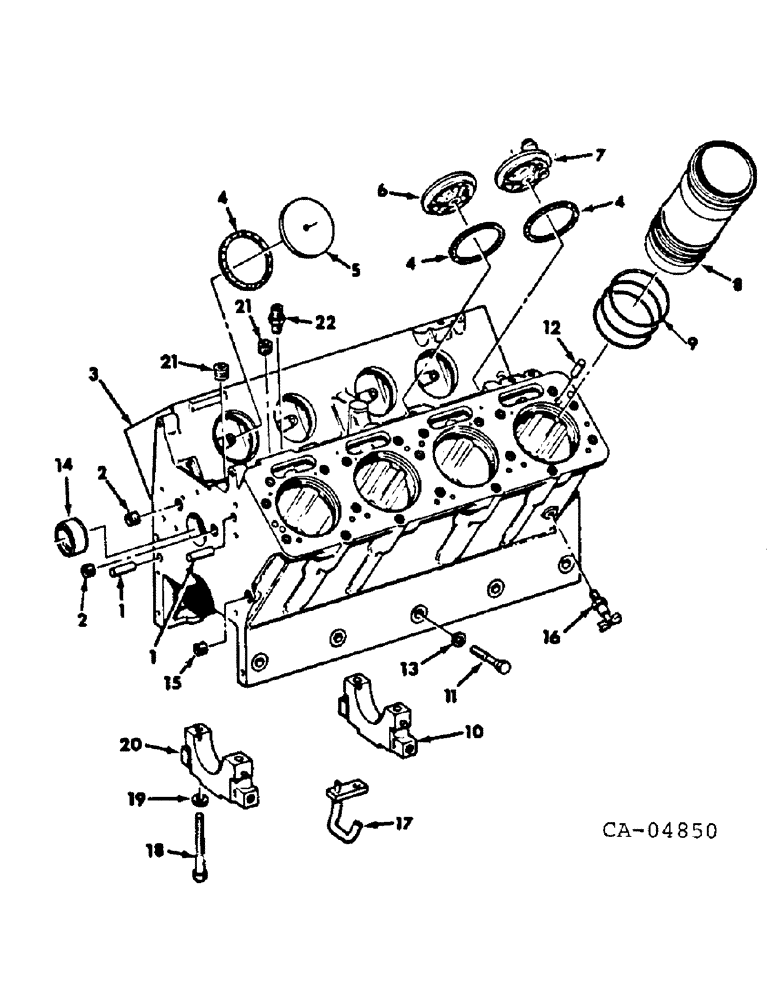

Запчасти Case IH V-800 (B-08) - CRANKCASE AND RELATED PARTS

1

19843R1

DOWEL, 5/8 x 1-3/4 hardened, front and rear

4шт.

2

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto. sq-soc pipe

4шт.

3

676670C91

CRANKCASE ASSY, Composed of Ref. 3A - 3O (Not Illustrated)

1шт.

3a

326620R1

JOURNAL

BEARING

5шт.

3b

671174C1

BOLT

10шт.

3c

671330C1

BOLT

10шт.

3d

684218C1

CAP

1шт.

3e

684220C1

CAP

4шт.

3f

606885C1

CONNECTOR, ELEC

CONNECTOR

1шт.

3g

NSS

NOT SOLD SEPARAT

CRANKCASE

1шт.

3h

19843R1

DOWEL

4шт.

3i

20024R1

PIN

DOWEL

4шт.

3j

50410DA

PLUG

2шт.

3k

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG

6шт.

3l

315365R1

PLUG

1шт.

3m

31729D

VALVE

2шт.

3n

39422D

WASHER

10шт.

3o

671175C1

WASHER

10шт.

4

328798R2

GASKET

tappet access cover, Order tube of liquid gasket, 446839C1

8шт.

5

601858C1

COVER

tappet access

6шт.

25499R1

SCREW,Hex, 3/8"-16 x 1 7/8", G8

3/8-16 x 1-7/8 phc hex-hd cap

6шт.

340092R1

WASHER

WASHER, 13/32 nylon

6шт.

6

601860C1

COVER, tappet access w/drain holes

1шт.

25499R1

SCREW,Hex, 3/8"-16 x 1 7/8", G8

3/8-16 x 1-7/8 phc hex-hd cap

1шт.

340092R1

WASHER

WASHER, 13/32 nylon

1шт.

7

678008C1

COVER, tappet access w/drain holes

1шт.

25499R1

SCREW,Hex, 3/8"-16 x 1 7/8", G8

3/8-16 x 1-7/8 phc hex-hd cap

1шт.

340092R1

WASHER

WASHER, 13/32 nylon

1шт.

8

676947C1

SLEEVE

cylinder, Also available in package 684192C91

8шт.

9

RING, cylinder sleeve packing, Order ring package, 684193C91

24шт.

10

684220C1

CAP, rear and intermediate main bearing

4шт.

11

671174C1

BOLT, crankcase cross

10шт.

12

20024R1

PIN

DOWEL, 3/8 x 1 hardened, cylinder head

4шт.

13

671175C1

WASHER

cross bolt

10шт.

14

326620R1

JOURNAL

BEARING, camshaft

5шт.

15

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto. sq-soc pipe

2шт.

16

31729D

VALVE

drain

2шт.

17

671007C2

TUBE

piston cooling

8шт.

685158C1

SLEEVE

tube

8шт.

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

SCREW, 3/8-16 x 1 hex-hd cap nylok

8шт.

18

671330C1

BOLT

main bearing cap

10шт.

19

39442D

WASHER, main bearing cap bolt

10шт.

20

684218C1

CAP, main bearing front

1шт.

21

50410DA

PLUG

1/8 pipe

2шт.

22

606885C1

CONNECTOR, ELEC

CONNECTOR

1шт.

315365R1

PLUG

1/8 metering

1шт.

684193C91

STRIPPER PACKAGE

PACKAGE, cylinder sleeve o-ring service, Consists of three rings

1шт.

684212C92

PACKAGE

cylinder sleeve shim service, Consists of eight shims

1шт.

687699C1

INSERT

crankcase service, Used to repair corroded or damaged crankcase, As required

8шт.
