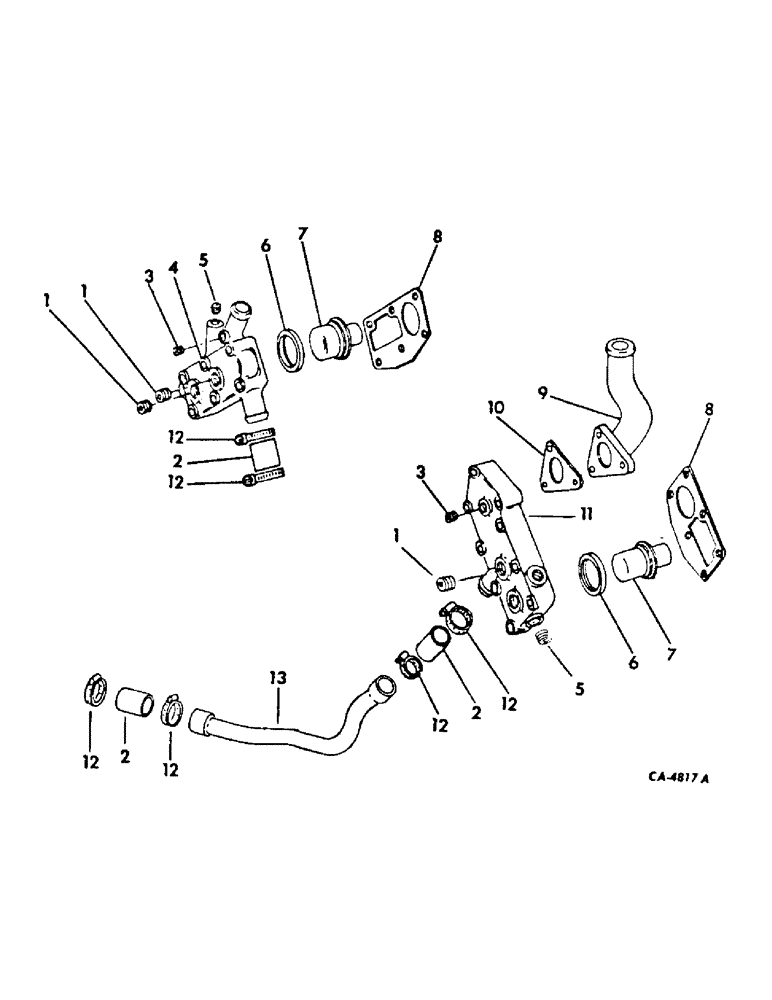

Запчасти Case IH V-800 (B-07) - THERMOSTAT, THERMOSTAT HOUSING AND CONNECTIONS

1

9409949

DRAIN PLUG

3/4-14 auto. sq-soc pipe

3шт.

2

HOSE, thermostat by-pass to water pump, 1-1/4 ID x 2-1/2 in. long Order from bulk hose, 407001R1

3шт.

3

444687

PLUG,Hex Soc, 1/8"-27

Auto, Pipe Hex Soc, 1/8"-27

2шт.

4

685981C1

HOUSING, thermostat RH

1шт.

275804R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

SCREW, 3/8-16 x 3 phc hex-hd cap

6шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

13/32 x 13/16 x .134 phc hardened

6шт.

5

445751

1/2-14 auto. sq-soc pipe

2шт.

6

SEAL, thermostat, Order package, 1801194C91

2шт.

7

THERMOSTAT, 180 to 202 degrees, Order package, 1801194C91

2шт.

8

671082C1

GASKET

thermostat housing

2шт.

9

686797C1

ELBOW

water outlet

1шт.

277232R1

BOLT,Hex, 3/8" - 18 x 2 3/4", Gr 8

SCREW, 3/8-16 x 2-3/4 phc hex-hd cap

3шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

13/32 x 13/16 x .089 phc hardened

3шт.

10

671956C1

GASKET

water outlet elbow

1шт.

11

671045C2

HOUSING, thermostat LH

1шт.

275804R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

SCREW, 3/8-16 x 3 phc hex-hd cap

7шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

13/32 x 13/16 x .134 phc hardened

7шт.

12

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, hose

6шт.

13

677289C1

TUBE, thermostat housing crossover, Serial no. 3959 and below

1шт.

13

685931C1

TUBE, thermostat housing crossover, Serial no. 3560 and above

1шт.

1801194C91

PACKAGE

thermostat and seal, Replaces seal, 615175C91 and thermostat, 672569C1

1шт.
