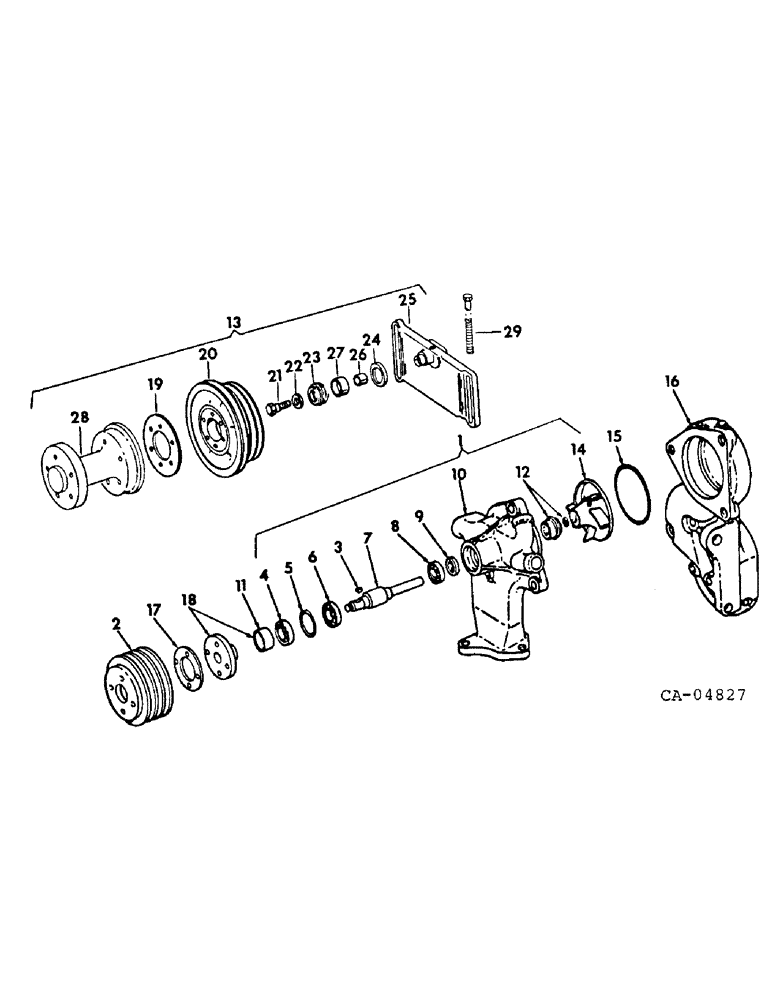

Запчасти Case IH V-800 (B-05) - FAN PULLEY, WATER PUMP AND RELATED PARTS

1

674788C93

PUMP, WATER

PUMP ASSY, water, new, Serial no. 3959 and below

1шт.

1

749233C92

REMAN-WATER PUMP

PUMP ASSY, water, Renewed for water pump, 674788C93

1шт.

1928135C1

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

1

686541C92

SPARE PART PUMP ASSY, water, new, Serial no. 3960 and above

1шт.

1

749702C92

REMAN-WATER PUMP

PUMP ASSY, water, Renewed for water pump, 686541C92

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

SCREW, 1/2-13 x 1-3/8 phc hex-hd cap

2шт.

25546R1

WASHER,17/32" x 1 1/16" x .188", HDN

WASHER, 17/32 x 1-1/16 x .188 phc hardened

2шт.

2

680568C1

PULLEY

SPARE PART PULLEY, water pump

1шт.

3

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

4

606677C91

SEAL

SEAL, water pump oil front

1шт.

5

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

1шт.

6

677441C91

BALL BEARING,0.7874" ID x 2.0472" OD x 0.5906"

BEARING, front

1шт.

7

677580C2

SHAFT

SHAFT, water pump

1шт.

9411658

LOCK NUT,5/8"-11, GC

NUT, 5/8-18 hex. conelok

1шт.

8

ST286

BALL BEARING,17mm ID x 47mm OD x 14mm W

BEARING, rear ball

1шт.

9

338394R91

SEAL

SEAL, water pump oil rear

1шт.

10

NSS

NOT SOLD SEPARAT

BODY, water pump, Not serviced separately, Order water pump assy

1шт.

9409949

DRAIN PLUG

PLUG, 3/4-14 auto. sq-soc pipe

1шт.

11

606676C1

BUSHING

SLEEVE, water pump pulley, Not furnished as part of pump assy

1шт.

12

687161C91

PACKING

PACKAGE, water pump seal, Replaces 701331C92

1шт.

13

PULLEY AND BRACKET ASSY, fan, Order component parts

1шт.

14

671038C1

IMPELLER

IMPELLER, water pump

1шт.

15

3046999R1

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

O-RING, water pump housing

1шт.

16

612241C1

HOUSING

HOUSING, water pump volute

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

BOLT, , Early production engines Hex, 3/8"-16 x 1 1/4", G8, Full Thd

7шт.

95-11041

WASHER,3/8"

WASHER, .406 x .812 x .051 pln, Early production engines

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Early production engines 3/8"

1шт.

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

BOLT, Hex, 3/8"-16 x 1 1/2 inch, G8, Late production engines

3шт.

277232R1

BOLT,Hex, 3/8" - 18 x 2 3/4", Gr 8

BOLT, 3/8 x 2-3/4 phc type 8, Late production engines

1шт.

25500R1

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 8

BOLT, 3/8 x 3-1/4 phc type 8, Late production engines

2шт.

115093

LOCK WASHER,3/8"

WASHER, LOCK, , Late production engines 3/8"

3шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

WASHER, .406 x .812 x .089 phc hdn, Late production engines

6шт.

17

674695C1

SPARE PART SHIM, pulley

1шт.

18

674696C91

ADAPTER

ADAPTER, w/sleeve, 606676C1, pulley

1шт.

The bolts for ref. 18 674694c91 adapter, w/sleeve are qty 4 326-620 and the washers are 92-11038 qty 4. 10/30/97 SP & MH

1шт.

19

609418C1

GASKET

GASKET, fan spacer

1шт.

20

690537C1

PULLEY

SPARE PART PULLEY, fan, Replaces 680596C1

1шт.

21

24878R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

BOLT, , S/N 5947 and below Hex, 5/8"-11 x 2 3/4", G8

1шт.

21

25511R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

BOLT, 5/8-11 x 4-1/4, Serial no. 5948 and above

1шт.

22

671164C2

WASHER

WASHER, retaining

1шт.

23

621256C91

ROLLER BEARING,1.3758" ID x 2.5635" OD x 1.59"

BEARING, fan pulley

1шт.

24

674176C91

SEAL

SEAL, oil

1шт.

25

690650C1

BRACKET

BRACKET, fan pulley, Replaces 688063C1, 5947 and below, Also order stud 690651C1 and bolt 25511R1

1шт.

676683C1

SPARE PART PLATE, 2 hole threaded

1шт.

676684C1

SPARE PART PLATE, 3 hold threaded

1шт.

25507R1

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 8

SCREW, 1/2-13 x 3-3/4 phc hex-hd cap

4шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

WASHER, 17/32 x 1-1/4 x .188 phc hardened

4шт.

26

683000C1

SPACER

SPACER, inner bearing

1шт.

27

681999C1

SPACER

SPACER, outer bearing

1шт.

28

671238C2

SPACER

SPACER, fan

1шт.

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

BOLT, Hex, 3/8"-16 x 2 1/4", G8

6шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

WASHER, 13/32 x 13/16 x .134 phc hardened

6шт.

29

688055C1

BOLT

SPARE PART BOLT, fan adjusting, Serial no. 5947 and below

1шт.

673958C1

SPARE PART WASHER, fan adjusting bolt

1шт.

29

690651C1

STUD

STUD, fan adjusting, Serial no. 5948 and above

1шт.

673958C1

SPARE PART WASHER, fan adjusting

1шт.

25522R1

NUT,3/8"-16, G8

NUT, 3/8 phc type 8

1шт.

674795C92

PACKAGE

KIT, water pump repair, Consists of ref nos 4 through 9, 11, 12, 14, 15 gasket, 601836C2 and nut, 9416488

1шт.
