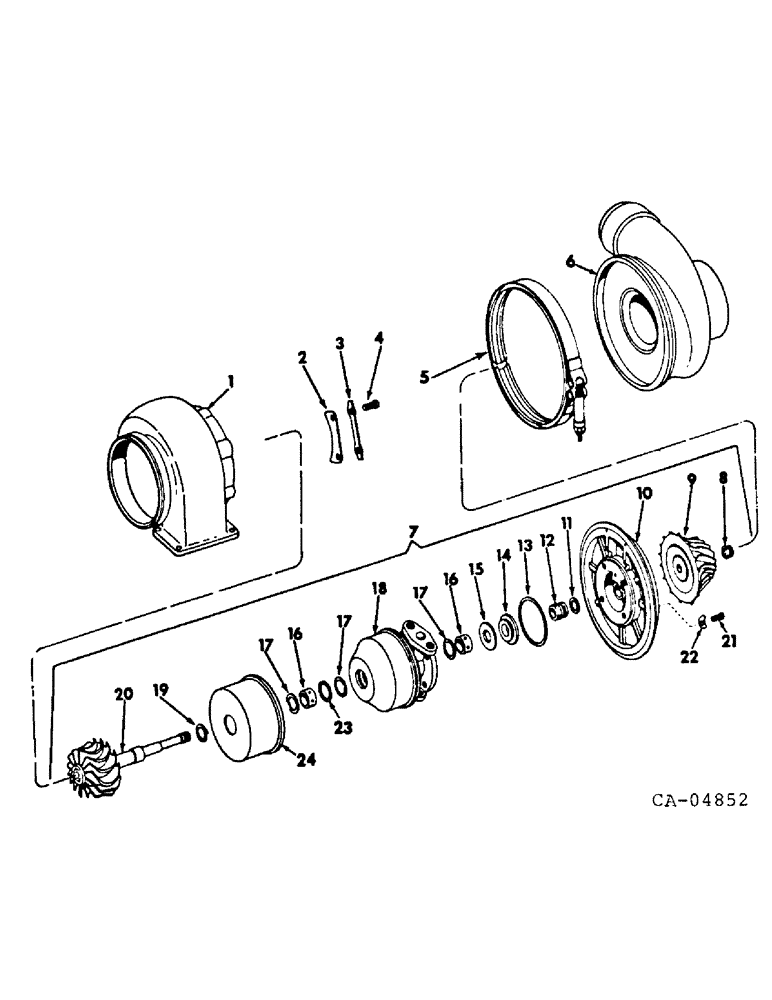

Запчасти Case IH V-800 (B-33) - TURBOCHARGER, AIRESEARCH

681440C92

TURBOCHARGER

TURBOCHARGER ASSY, model THO8A-61

1шт.

749254C91

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1928001C1

CORE-TURBOCHARGER

Return number

1шт.

1

625693C1

SPARE PART HOUSING, turbine

1шт.

2

619461C1

PLATE

SPARE PART CLAMP, housing

3шт.

3

619460C1

PLATE

PLATE, lock

3шт.

4

619459C1

SPARE PART SCREW, hex-hd cap

6шт.

5

625692C91

CLAMP

SPARE PART CLAMP W/NUT, v-band

1шт.

6

681476C2

SPARE PART HOUSING, compressor

1шт.

7

681479C92

ROTOR ASSY.

CORE ASSY

1шт.

8

338530R1

NUT

NUT, impeller lock

1шт.

9

681477C2

RIM

WHEEL WHEEL, impeller

1шт.

10

681478C1

SPARE PART PLATE, back

1шт.

11

321379R1

RING

SPARE PART RING, piston

1шт.

12

631075C1

SPACER

SPACER, thrust

1шт.

13

619466C1

RING

RING, plate seal

1шт.

14

619467C1

COLLAR

COLLAR, thrust

1шт.

15

688703C1

THRUST BEARING

BEARING, inboard thrust, Replaces 338525R1

1шт.

16

684005C1

BALL BEARING

BEARING, shaft

2шт.

17

21225R1

SNAP RING,1.00", Int, #100

Ring, Snap, 1.00", Int, #100

3шт.

18

702978C1

SPARE PART HOUSING, rotating

1шт.

19

619468C1

RING

RING, piston seal

1шт.

20

702976C1

SPARE PART WHEEL AND SHAFT, turbine

1шт.

21

25484R1

BOLT (SPREADER),Hex, 1/4" x 1 1/8", Gr 8

SCREW, hex-hd cap

4шт.

22

625676C1

SPARE PART PLATE, bolt lock

4шт.

23

619470C1

WASHER

WASHER, bearing

2шт.

24

619463C1

SPARE PART SHROUD, turbine wheel

1шт.

681480C92

REMAN-ROTOR ASSY

CORE ASSY, remanufactured, Individual components making up remanufactured core assemblies are not serviceable by themselves

1шт.
