Запчасти Case IH V-800 (B-31) - TURBOCHARGER AND CONNECTIONS

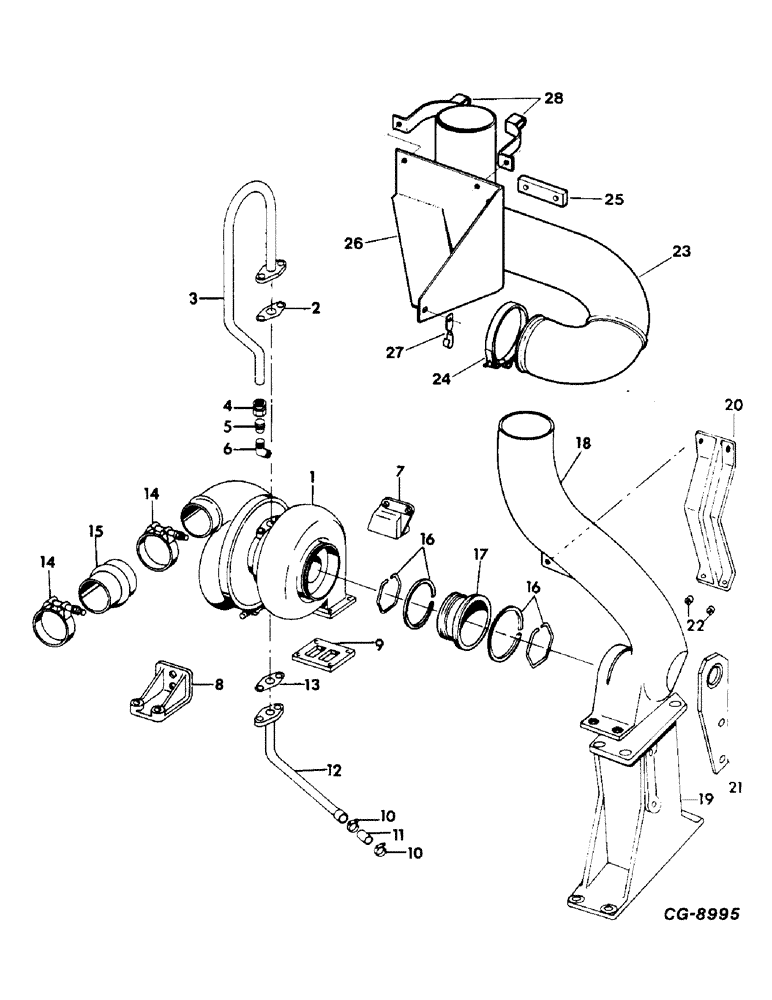

Схема запчастей Case IH V-800 - (B-31) - TURBOCHARGER AND CONNECTIONS
10
13
1
2
14
6
12
20
18
10
11
17
14
24
22
3
21
16
16
28
15
19
23
27
7
25
26
5
8
4
9

Артикул

Название

Примечание

Количество

1

TURBOCHARGER ASSY, For components see list of parts under details of turbocharger

1шт.

304451R1

NUT

3/8-24 special lock

4шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

13/32 x 13/16 x .134 phc hardened

2шт.

2

618560C1

GASKET

oil inlet tube flange

1шт.

3

671146C1

TUBE

turbocharger oil inlet

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

3/8 hardened

2шт.

4

277738R1

NUT

oil inlet tube

1шт.

5

277737R1

SLEEVE

oil inlet tube

1шт.

6

338699R1

ELBOW UNION

ELBOW, oil inlet tube

1шт.

7

682263C2

SUPPORT

turbocharger RH

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

13/32 x 13/16 x .134 phc hardened

5шт.

25523R1

NUT,3/8"-24, G8

3/8-24 phc hex.

2шт.

8

682262C2

SUPPORT

turbocharger LH

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

1шт.

25774R1

BOLT,Hex, 3/8" - 24 x 2", Gr 8

SCREW, 3/8-24 x 2 phc hex-hd cap

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

13/32 x 13/16 x .134 phc hardened

5шт.

25523R1

NUT,3/8"-24, G8

3/8-24 phc hex.

2шт.

9

670354C1

GASKET

turbocharger

1шт.

10

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, hose

2шт.

11

677553C1

HOSE

Turbo Drain

1шт.

12

671148C1

TUBE

turbocharger oil drain

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

13/32 x 13/16 x .134 phc hardened

2шт.

13

670355C1

GASKET

turbo oil drain tube

1шт.

14

687457C1

CLAMP

hose, Replaces 397257R1

1шт.

15

670353C3

HOSE,2.96" ID x 2.30", SAE J200

Turbo Compressor Outlet, Replaces 677713C1 2.96" ID x 2.30", SAE J200

1шт.

16

603573C91

SEAL

RING, seal, All except 4586 tractors w/engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

2шт.

17

349406R1

SLEEVE CYLINDER

SLEEVE, turbo exhaust, All except 4586 tractors w/engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

1шт.

18

671440C1

ELBOW UNION

ELBOW, turbocharger exhaust, All except 4586 tractors w/engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

1шт.

24865R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

Hex, 1/2"-13 x 2 1/4", G8

4шт.

26273R1

WASHER

17/32 x 1-1/16 x .134 phc hardened

8шт.

25526R1

NUT,1/2"-13, G8

1/2-13 phc hex

4шт.

19

686645C1

SUPPORT, turbocharger exhaust elbow, All except 4586 tractors w/ engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

1шт.

24863R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-1/2 phc hex-hd cap

4шт.

26273R1

WASHER

17/32 x 1-1/16 x .134 phc hardened

4шт.

116121

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

20

686741C1

BRACKET, turbocharger exhaust elbow

1шт.

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

1шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

3шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

13/32 x 1-1/8 x .134 phc hardened

4шт.

25522R1

NUT,3/8"-16, G8

3/8-16 phc hex.

2шт.

21

688004C1

EYE, lifting rear, 4568 tractors, 4586 tractors w/engine serial no. 7377 and below, 4786 tractors w/engine serial no. 7434 and below

1шт.

24863R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

2шт.

26273R1

WASHER

17/32 x 1-1/16 x .134 phc hardened

2шт.

116121

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

22

686900C1

SPACER

exhaust elbow bracket

2шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

23

690568C1

ELBOW

turbocharger exhaust, 4586 tractors w/engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

1шт.

24

683954C91

CLAMP

COUPLING V-RETAINER, 4586 tractors w/engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

1шт.

25

690801C1

SPACER

exhaust elbow brace, 4586 tractors w/engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

1шт.

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

2шт.

25522R1

NUT,3/8"-16, G8

3/8 phc type 8

2шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

.406 x 1.125 x .134 phc hdn

4шт.

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

26

690953C1

BRACKET

exhaust elbow, 4586 tractors w/engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

1шт.

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

1шт.

25522R1

NUT,3/8"-16, G8

3/8 phc type 8

1шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

.406 x 1.125 x .134 phc hdn

2шт.

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

107518R1

CLIP, cable, Replaces 103213H, 4586 tractors w/engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

1шт.

28

690970C1

CLAMP, exhaust, 4786 tractors w/engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

4шт.

25500R1

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 8

3/8 x 3-1/4 phc type 8

2шт.

25522R1

NUT,3/8"-16, G8

3/8 phc type 8

6шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 phc hdn

12шт.

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.
