Запчасти Case IH V-800 (B-30) - INTAKE AND EXHAUST MANIFOLD

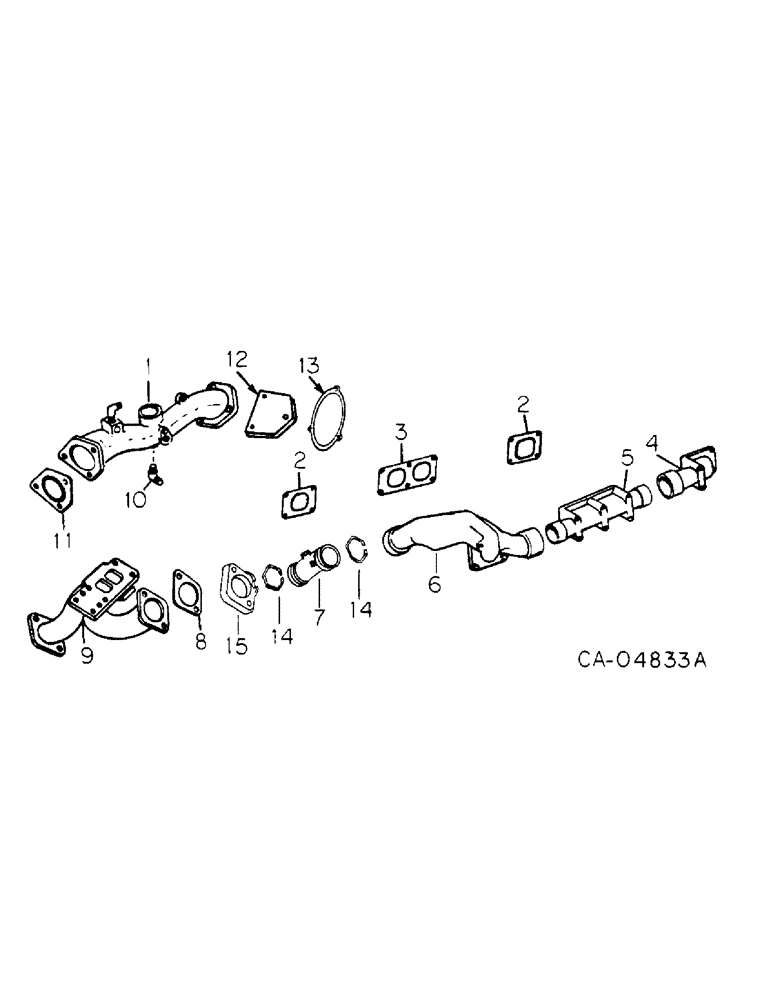

Схема запчастей Case IH V-800 - (B-30) - INTAKE AND EXHAUST MANIFOLD
2
6
4
14
12
13
15
11
8
2
3
10
14
7
9
5
1

Артикул

Название

Примечание

Количество

1

684325C92

MANIFOLD

air inlet intake

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 C-Z auto. sq-hd pipe

2шт.

444577

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG, 1/4-18 C-Z auto. sq-hd pipe, 1 used on 4568 tractors, 2 used on 4586 and 4786 tractors

1шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

SCREW, 3/8-16 x 1-1/4 phc hex-hd cap

5шт.

27346R1

SCREW, 3/8-16 x 2-1/4 phc hex-hd cap Locking, 3/8"-16 x 2 1/4", G8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

13/32 x 13/16 x .089 phc hardened

6шт.

2

675885C1

GASKET

exhaust manifold, front and rear

4шт.

3

675886C1

GASKET

exhaust manifold, center

2шт.

4

601925C2

MANIFOLD

front exhaust

2шт.

24863R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

4шт.

24867R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

SCREW, 1/2-13 x 3-1/2 phc hex-hd cap

2шт.

677779C1

WASHER

1/2 hardened

6шт.

5

601926C2

MANIFOLD, center exhaust

2шт.

25507R1

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 8

SCREW, 1/2-13 x 3-3/4 hc hex-hd cap

5шт.

677779C1

WASHER

1/2 hardened

2шт.

6

601927C3

MANIFOLD

left rear exhaust

1шт.

24863R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1шт.

24870R1

BOLT,Hex, 1/2" - 13 x 5", Gr 8

SCREW, 1/2-13 x 5 phc hex-hd cap

1шт.

25285R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

SCREW, 1/2-13 x 3-1/4 phc hex-hd cap

1шт.

677779C1

WASHER

1/2 hardened

3шт.

6

601928C4

MANIFOLD

right rear exhaust

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

SCREW, 1/2-13 x 1-3/8 phc hex-hd cap

1шт.

24863R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

SCREW, 1/2-13 x 2-3/4 phc hex-hd cap

1шт.

677779C1

WASHER

1/2 hardened

3шт.

7

688774C1

NIPPLE, LUBE

ADAPTER, exhaust manifold, Replaces 671043C1, On orders for 671043C1 furnish adapters, 688774C1, flange, 688775C1, rings, 672643C2 and cap screws 25281R1

2шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 phc type 8

4шт.

677779C1

WASHER

1/2 hardened

8шт.

25526R1

NUT,1/2"-13, G8

1/2-13 phc hex.

4шт.

8

675887C1

GASKET

exhaust flange

2шт.

9

671137C92

MANIFOLD

turbocharger exhaust inlet, Together w/four stud 256333R1 and four stud 636432R1 will work for manifold 671229C1

1шт.

444612

PLUG

1/8-27 pln h/hd auto pipe

4шт.

636432R1

BOLT

STUD, 3/8-16 x 3/8-24 x 1-21/32 in. long

4шт.

256333R1

STUD

3/8-16 x 3-8-24 x 1-3/4 in. long

4шт.

10

606296C1

90 ELBOW

aneroid tube

1шт.

11

673992C1

GASKET

intake manifold

2шт.

12

328752R1

PLATE

COVER, intake manifold

1шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

SCREW, 3/8-16 x 1-1/4 phc hex-hd cap

2шт.

27346R1

SCREW, 3/8-16 x 2-1/4 phc hex-hd cap, Not used on 4586 tractors Locking, 3/8"-16 x 2 1/4", G8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

13/32 x 13/16 x .089 phc hardened

3шт.

13

328753R3

GASKET

intake manifold cover

1шт.

14

672643C2

SEAL,67.92mm ID x 73.76mm OD x 2.92mm Thk

seal

4шт.

15

688775C1

FLANGE

adapter

2шт.

Выбрано товаров: 43
