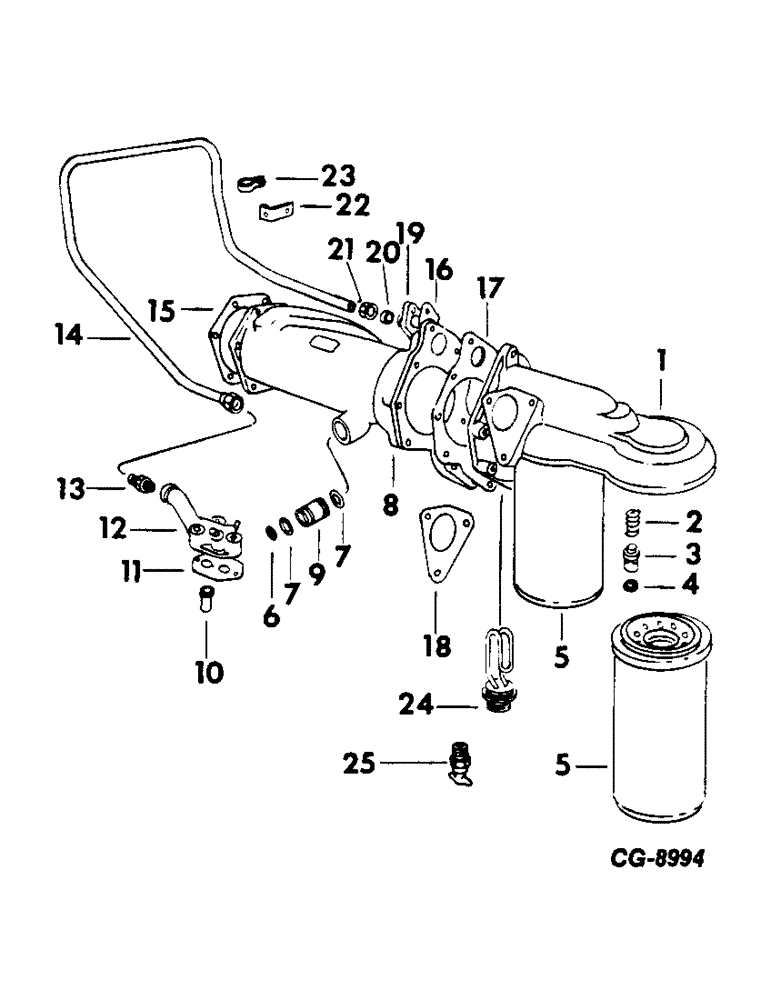

Запчасти Case IH V-800 (B-29) - OIL COOLER, FILTER AND CONNECTIONS

1

684434C91

HEAT-EXCHANGER

HEADER ASSY, oil filter, Replaces 688229C91, Composed of Ref. 1A - 1F

1шт.

1a

NSS

NOT SOLD SEPARAT

HEADER

1шт.

1b

NSS

NOT SOLD SEPARAT

RETAINER

2шт.

1c

336919R1

RING,0.625", Int, #62

Snap, 0.625", Int, #62

1шт.

1d

601916C1

SPRING

1шт.

1e

31729D

VALVE

1шт.

1f

601917C1

VALVE

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

Early production engines Hex, 3/8"-16 x 1 1/4", G8, Full Thd

1шт.

277232R1

BOLT,Hex, 3/8" - 18 x 2 3/4", Gr 8

3/8 x 2-3/4 phc type 8, Early production engines

1шт.

26490R1

BOLT,Hex, 3/8" - 16 x 5 7/8", Gr 8

3/8 x x 5-7/8 phc type 8, Early production engines

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn, Early production engines

3шт.

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8, Late production engines

4шт.

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

3/8 x 2-1/2 phc type 8, Late production engines

3шт.

115093

LOCK WASHER,3/8"

WASHER, LOCK, , Late production engines 3/8"

4шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn, Late production engines

7шт.

2

601916C1

SPRING

by-pass valve

1шт.

3

601917C1

VALVE

filter by-pass

1шт.

4

336919R1

RING,0.625", Int, #62

Snap, , by-pass valve 0.625", Int, #62

1шт.

5

684206C2

FILTER

ASSY, lube oil

2шт.

687111C1

GASKET

oil filter

2шт.

6

343396R2

SEALING RING

O-RING, 1.09 x 1.387 x .139

2шт.

7

343398R2

RING

O-RING, 1.234 x 1.512 x .139

2шт.

8

677475C1

COOLER

ASSY, oil

1шт.

444624

PLUG,Hex Hd, 3/8"-18

3/8-18 auto. hex-hd filler and drain

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

3шт.

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

4шт.

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

SCREW, 3/8-16 x 2-1/2 phc hex-hd cap

3шт.

277232R1

BOLT,Hex, 3/8" - 18 x 2 3/4", Gr 8

SCREW, 3/8-16 x 2-3/4 phc hex-hd cap

1шт.

25500R1

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 8

SCREW, 3/8-16 x 3-1/4 phc hex-hd cap

2шт.

670278C1

WASHER

3/8 hardened

13шт.

9

677292C1

SPACER

SLEEVE, oil

1шт.

10

341195R92

VALVE

pressure regulating

1шт.

11

345246R1

GASKET

oil inlet elbow

1шт.

12

683008C1

ELBOW, oil inlet

1шт.

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

3/8 x 2-1/2 phc type 8

3шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

13/32 x 13/16 x .089 phc hardened

3шт.

13

9402713

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

CONNECTOR, 1 in. NPTF x 1-5/16-12 C-Z 37 deg hyd flared tube

1шт.

14

685457C1

TUBE

oil cooler to oil inlet elbow

1шт.

15

601836C2

GASKET

oil cooler, pump end

1шт.

16

612056C2

GASKET

oil cooler, Serial Range: tube-flange

1шт.

17

612053C1

GASKET

oil cooler, filter end

1шт.

18

328911R1

GASKET

water outlet

1шт.

19

685465C1

FLANGE AND NIPPLE ASSY

1шт.

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

2шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

2шт.

20

687331C1

SEAL

RING ASSEMBLY AND FERRULE

1шт.

21

279472R91

NUT

AND COLLAR ASSEMBLY

1шт.

22

676861C1

BRACKET, oil cooler tube

1шт.

23

322499R1

CLIP, oil cooler tube

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

688292C91

PACKAGE

engine coolant head, Consists of Ref. 24A - 24B (Not Illustrated)

1шт.

NSS

NOT SOLD SEPARAT

HEATER

1шт.

71150C1

CABLE

CORD

1шт.

25

31729D

VALVE

drain

1шт.

NLS

NO LONGER SERVICED

ADAPTER, 1 to 3/8 pln out/h/hd pipe

1шт.
