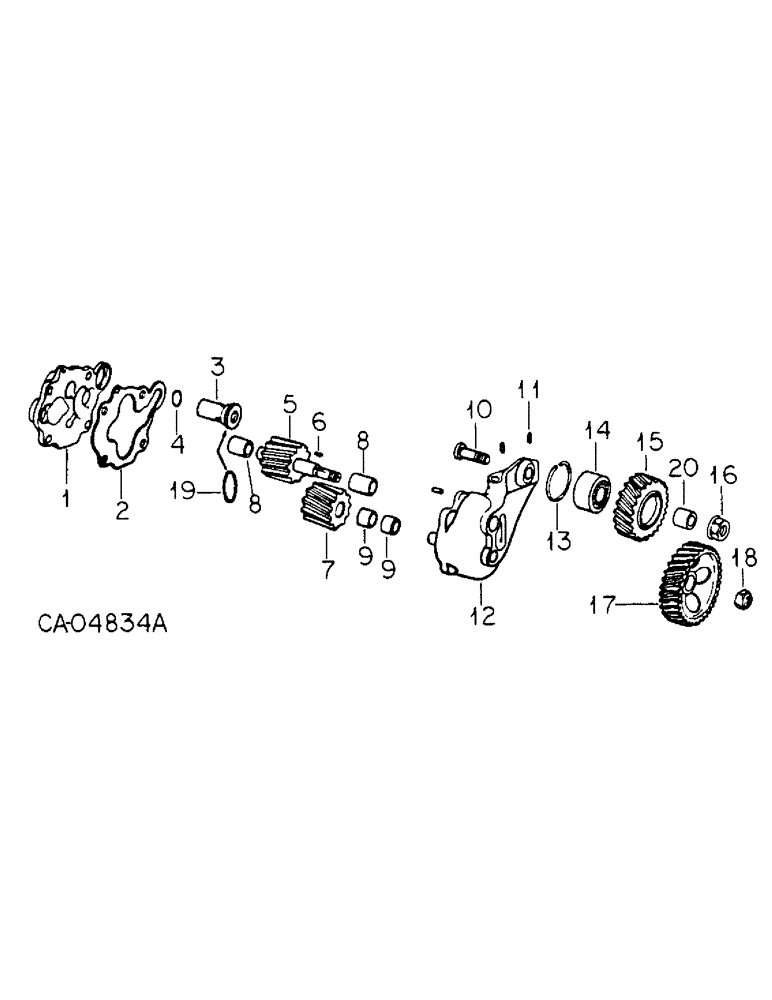

Запчасти Case IH V-800 (B-28) - OIL PUMP

670275C93

PUMP

ASSY, oil, Order pump assy 691136C91

1шт.

691136C91

PUMP, ENGINE OIL

PUMP ASSY, oil, Will work for pump assy, 670275C93, Consists of the following parts

1шт.

1

349064R11

COVER W/BUSHING, 345292R1, oil pump

1шт.

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

4шт.

25534R1

WASHER

.406 x .812 x .065 phc hdn

4шт.

2

349065R1

GASKET

oil pump cover

1шт.

3

345161R91

VALVE

ASSY, safety

1шт.

4

349055R2

RING

sealing, In lube oil pump

1шт.

5

326765R12

SHAFT

W/GEAR ASSY, oil pump drive

1шт.

6

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

7

326767R21

PINION

GEAR W/TWO BUSHINGS, 326768R1, oil pump idler

1шт.

8

345292R1

BEARING

BUSHING, drive shaft

2шт.

9

326768R1

BUSHING

idler gear

2шт.

10

670277C2

SHAFT

oil pump drive idler, Part of pump assy 670275C93, Order the following parts: Ref. 10A - 10G (Not Illustrated)

1шт.

10a

691137C91

CASE

BODY ASSY

1шт.

10b

513010R1

SNAP RING,2", Int, #200

Ring, Snap, 2", Int, #200

1шт.

10c

691135C1

GEAR

RING

1шт.

10d

691128C1

SHAFT

1шт.

10e

691133C1

NUT

1шт.

10f

691132C1

BUSHING

1шт.

10g

691177C91

BALL BEARING,0.7874" ID x 2.0472" OD x 0.875"

BEARING

1шт.

10

691126C1

SHAFT, oil pump drive idler, Part of pump assy 691136C91

1шт.

11

19841R1

DOWEL,1/4" x 1/2"

PIN, 1/4 x 1/2 dowel

4шт.

12

691137C91

CASE

BODY ASSY, oil pump, Replaces 670276C21, Composed of Ref. 12A - 12D (Not Illustrated)

1шт.

12a

NSS

NOT SOLD SEPARAT

BODY

1шт.

12b

345292R1

BEARING

BUSHING

1шт.

12c

19841R1

DOWEL,1/4" x 1/2"

PIN

1шт.

12d

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

13

376219R1

SNAP RING,1.653, Int, #165

Ring, Snap, 1.653", Int, #165, part of pump assy 670275C93

1шт.

13

513010R1

SNAP RING,2", Int, #200

Ring, Snap, , part of pump assy 691136C91 2", Int, #200

1шт.

14

51791H

BALL BEARING,0.5906" ID x 1.6535" OD x 0.75"

idler gear, Part of pump assy 670275C93

1шт.

14

691177C91

BALL BEARING,0.7874" ID x 2.0472" OD x 0.875"

BEARING, idler gear, Part of pump assy 691136C91

1шт.

15

326770R2

GEAR

oil pump drive idler, Part of pump assy 670275C93, Order the following parts: Ref. 15A - 15G (Not Illustrated)

1шт.

15a

691137C93

BODY ASSY

1шт.

15b

513010R1

SNAP RING,2", Int, #200

Ring, Snap, 2", Int, #200

1шт.

15c

691135C1

GEAR

1шт.

15d

691128C1

SHAFT

1шт.

15e

691133C1

NUT

1шт.

15f

691132C1

BUSHING

1шт.

15g

691177C91

BALL BEARING,0.7874" ID x 2.0472" OD x 0.875"

BEARING

1шт.

15

691135C1

GEAR

oil pump, drive idler, Part of pump assy 691136C91

1шт.

16

625436C1

NUT

oil pump drive, LH thread, Part of pump assy 670275C93

1шт.

16

691133C1

NUT

oil pump drive, LH thread, Part of pump assy 691136C91

1шт.

17

601905C2

GEAR WHEEL

GEAR, oil pump drive

1шт.

18

625338C1

NUT

oil pump drive shaft lock

1шт.

19

349055R2

RING

O-RING, 13/16 x 1 x 3/32, oil pump safety valve

1шт.

20

691132C1

BUSHING

idler shaft, Part of pump assy 691136C91

1шт.
