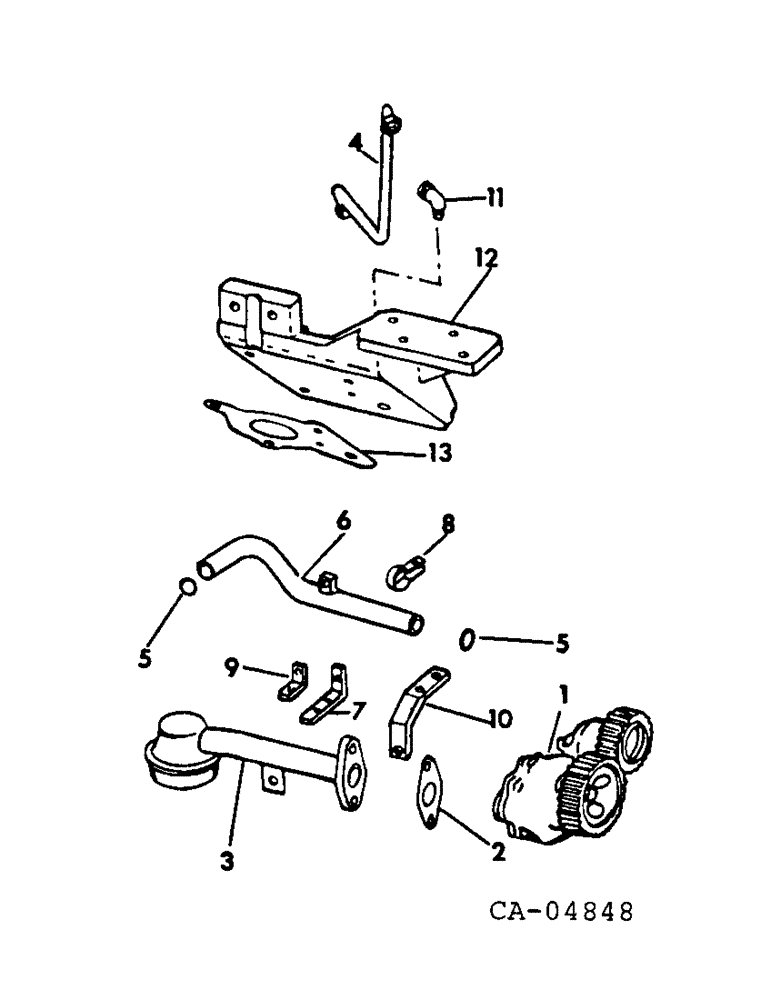

Запчасти Case IH V-800 (B-27) - OIL PUMP CONNECTIONS

1

691136C91

PUMP, ENGINE OIL

PUMP ASSY, oil, For components see list of parts under details of oil pump

1шт.

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8, Engine S/N 7383 and below

2шт.

25497R1

BOLT

BOLT, 3/8 x 1-3/8 x phc type 8, Engine serial no. 7384 and above

2шт.

670278C1

WASHER

13/32 x 3/4 x .105 phc hardened

2шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

13/32 x 13/16 x .134 phc hardened, Engine serial no. 7383 and below

2шт.

2

607130C2

GASKET

oil pump inlet tube

1шт.

3

673978C2

TUBE

oil pump inlet

1шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

25500R1

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 8

SCREW, 3/8-16 x 3-1/4 phc hex-hd cap

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

13/32 x 13/16 x .089 phc hardened

3шт.

25522R1

NUT,3/8"-16, G8

3/8-16 phc hex.

1шт.

4

671396C1

TUBE ASSY.

TUBE ASSY, oil pressure, Includes two, 915499R1 nuts and two, 685158C1 sleeves

1шт.

5

343396R2

SEALING RING

O-RING, inlet and discharge

2шт.

6

677284C2

TUBE,3.12, 2.75" Length

oil pump outlet

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

13/32 x 13/16 x .089 phc hardened

1шт.

25522R1

NUT,3/8"-16, G8

3/8-16 phc hex.

1шт.

7

677283C3

BRACKET, oil pump outlet tube

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

2шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

13/32 x 13/16 x .134 phc hardened

2шт.

8

674844C1

CLAMP, oil outlet tube

1шт.

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

13/32 x 13/16 x .134 phc hardened

1шт.

25522R1

NUT,3/8"-16, G8

3/8-16 phc hex.

1шт.

9

674845C1

SUPPORT, outlet tube bracket

1шт.

10

683657C1

SUPPORT, oil pump inlet

1шт.

25496R1

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

SCREW, 3/8-16 x 7/8 phc hex-hd cap

3шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

13/32 x 13/16 x .089 phc hardened

3шт.

25522R1

NUT,3/8"-16, G8

3/8-16 phc hex.

3шт.

11

606296C1

90 ELBOW

oil pressure tube

1шт.

12

671482C2

HOLDER

ADAPTER, filter mounting

1шт.

FOR444613

PLUG

1/8-27 auto. hex-hd pipe

3шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8-16 x 1-1/4 phc hex-hd prevailing torque

1шт.

26312R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8-16 x 1-1/2 phc hex-hd prevailing torque

1шт.

24842R1

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

1шт.

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

1шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

1шт.

25534R1

WASHER

13/32 x 13/16 x .065 phc hardened

4шт.

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

21/32 x 1-5/16 x .095 phc hardened

1шт.

13

671957C1

GASKET

mounting adapter

1шт.
