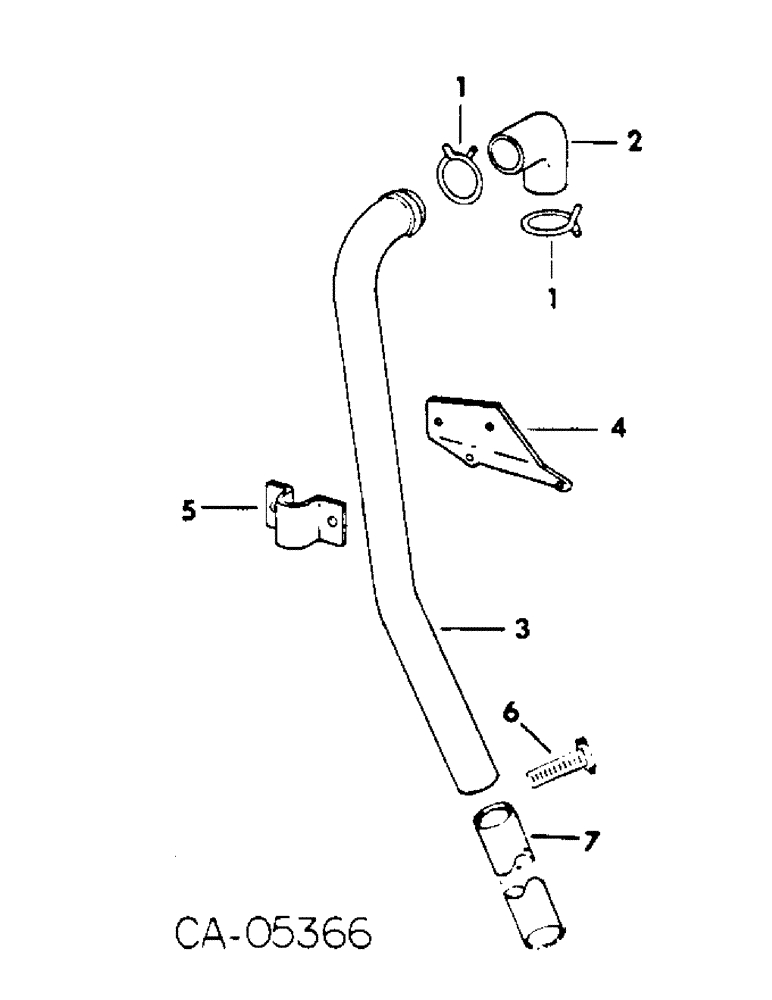

Запчасти Case IH V-800 (B-26) - CRANKCASE VENTILATION

1

610320C1

CLAMP

hose

2шт.

2

609000C1

HOSE

- Breather tube

1шт.

3

685672C1

TUBE, breather

1шт.

4

685673C1

BRACKET, breather tube

1шт.

SA2344

SPACER,3/8" Pipe x 7/16"

.49 x .68 x 4.38

2шт.

24842R1

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

2шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .812 x .089 phc hdn

2шт.

5

682376C1

SUPPORT, breather tube

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

13/32 x 13/16 x .089 phc hardened

4шт.

25522R1

NUT,3/8"-16, G8

3/8-16 phc hex.

2шт.

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

995222R1

CLAMP

No. 36 hose

1шт.

7

124566C1

HOSE

breather tube extension, 1-1/2 ID x 16 in. long

1шт.
