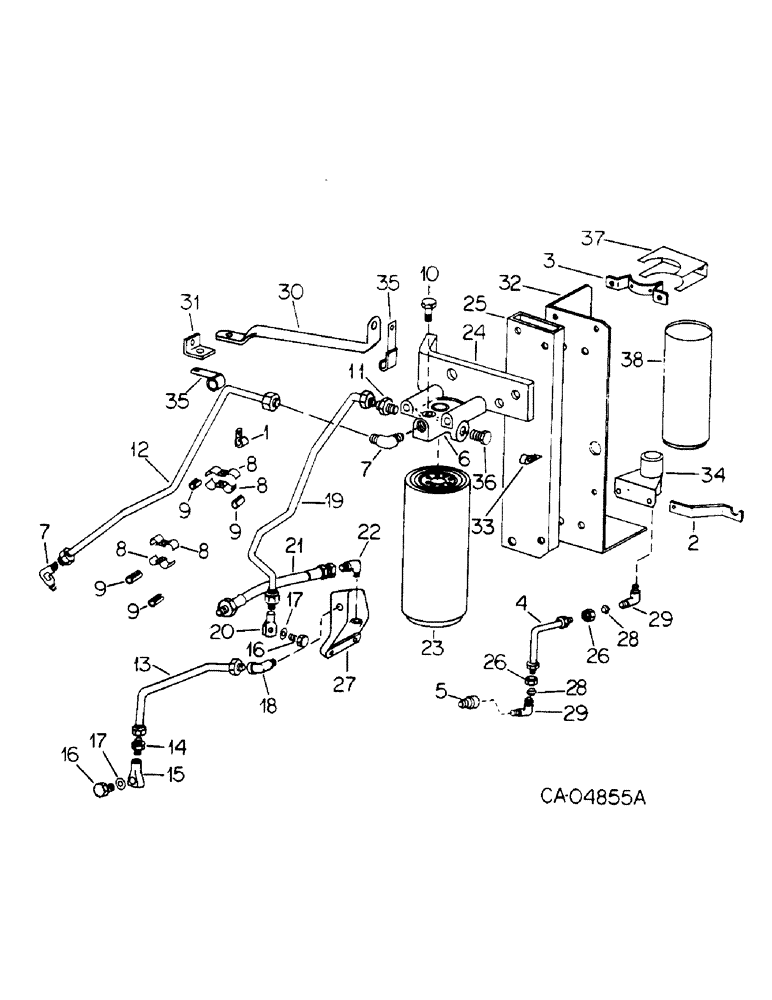

Запчасти Case IH V-800 (B-25) - FUEL FILTER, TUBES AND CONNECTIONS

1

370384R1

CLIP

cable

1шт.

1

384554R1

CLIP

tube

2шт.

2

686964C1

BRACKET, throttle cable, 4568 tractors only

1шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

3/8 phc hardened

4шт.

25522R1

NUT,3/8"-16, G8

0/8-16 phc hex

2шт.

3

688288C1

CLAMP, saddle, Replaces 398305C1, 4568 tractors only

1шт.

650166C1

BOLT

SCREW, 5/16-18 x 5 phc hex-hd cap

2шт.

27326R1

WASHER,.344" x 11/16" x .089", HDN

11/32 x 11/16 x .089 phc hardened

6шт.

25520R1

NUT,5/16"-18, G8

5/16-18 phc hex.

2шт.

4

686744C1

TUBE, ether injection, 4568 tractors only

1шт.

5

269635R91

NOZZLE CAP

NOZZLE, injection, 4568 tractors only

1шт.

6

612276C2

HEAD

ER, fuel filter

1шт.

7

606845C1

ELBOW

1/4 x 90 deg

2шт.

8

673527C1

CLAMP

fuel line

4шт.

25519R1

NUT,1/4"-20, G8

1/4-20 phc hex

2шт.

26674R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

1/4-20 x 3/4 phc hex-hd prevailing torque

2шт.

9

673171C1

RUBBER BUSHING

CUSHION, 3/8 ID

4шт.

10

39677DA

VALVE

bleeder

1шт.

11

606819C1

CONNECTOR, ELEC

CONNECTOR

1шт.

12

688043C91

LINE

TUBE, final filter to injection pump, Includes two 265204R1 sleeves and two, 265205R1 nuts

1шт.

13

686727C91

TUBE, primary pump inlet

1шт.

14

680744C1

CONNECTOR

1шт.

15

684385C1

FITTING

supply pump banjo

1шт.

16

3031554R1

SCREW

hollow

2шт.

17

933610R1

SEALING RING,M14 x 18 x 1.8

Fitting M14 x 18 x 1.8

4шт.

18

869712R1

ELBOW UNION

ELBOW, 45 deg

1шт.

19

688041C91

TUBE

pump to final filter, Includes two, 265204R1 sleeves and two, 265205R1 nuts

1шт.

20

684551C1

FITTING

banjo

1шт.

21

684425C1

HOSE

ASSY, injection pump return

1шт.

22

682805C1

ELBOW W/ORIFICE, 90 deg

1шт.

23

674293C1

FILTER CARTRIDGE

FILTER, final fuel

1шт.

24

688039C1

SPACER, fuel filter support, All except 4586 tractors w/engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

1шт.

24

690800C1

SPACER, fuel filter support, 4586 tractors w/engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

1шт.

25787R1

BOLT,3/8" x 5 1/4", Gr 8

SCREW, 3/8-16 x 5-1/4 phc hex-hd cap

1шт.

24845R1

BOLT,Hex, 3/8" - 16 x 4", Gr 8

1шт.

26312R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 phc p/t type 8

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

13/32 x 13/16 x .089 phc hardened

4шт.

25522R1

NUT,3/8"-16, G8

3/8-16 phc hex

1шт.

25

688037C2

SUPPORT, fuel filter

1шт.

21318R1

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 8

SCREW, 3/8-16 x 2-1/2 phc hex-hd cap, 4568 tractors

2шт.

24843R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

4586 and 4786 tractors Hex, 3/8"-16 x 2", G8

2шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

13/32 x 13/16 x .089 phc hardened

4шт.

25522R1

NUT,3/8"-16, G8

3/8-16 phc hex.

2шт.

26

121220

TUBE NUT

NUT, 1/8 ball sleeve tube brass, 4568 tractors only

2шт.

27

686638C1

ADAPTER, filter support

1шт.

26312R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8-16 x 1-1/2 phc hex-hd prevailing torque

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

13/32 x 13/16 x .134 phc hardened

1шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

21/32 x 1-5/16 x .150 phc hardened

1шт.

28

121322

SLEEVE,Ball Type, 1/8" tube

1/8 ball brass, 4568 tractors only

2шт.

29

140303

ELBOW

1/8-27 x 5/16-24 brass ball sleeve tube 90 deg, 4568 tractors only

2шт.

30

686737C2

BRACE, fuel filter, All except 4586 tractors w/engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

2шт.

26310R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8-16 x 1 phc hex-hd prevailing torque

1шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

13/32 x 1-1/8 x .134 phc hardened

3шт.

26312R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 phc p/t type 8

1шт.

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 phc hdn

1шт.

31

680501C1

BRACKET, filter brace, All except 4586 tractors w/engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

1шт.

26312R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8-16 x 1-1/2 phc hex-hd prevailing torque

1шт.

25522R1

NUT,3/8"-16, G8

3/8-16 phc hex.

1шт.

32

688304C1

SUPPORT, ether star, 4568 tractors only

1шт.

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

2шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 x .912 x .089 phc hdn

4шт.

139665H1

SPACER, ether start support

4шт.

25522R1

NUT,3/8"-16, G8

3/8 phc type 8

2шт.

33

362121R1

CLIP

4568 tractors only

1шт.

34

685819C91

VALVE AND COIL ASSY, 4568 tractors only

1шт.

26674R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

1/4-20 x 3/4 phc hex-hd prevailing torque

2шт.

27616R1

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x .075 phc hardened

3шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 znd int-ext tooth lock

1шт.

25519

NUT, 1/4-20 phc type 8

2шт.

35

362126R1

CLIP

cable harness, long, All except 4586 tractors w/engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

2шт.

35

167556H1

CLIP, cable harness, long, 4586 tractors w/engine serial no. 7378 and above, 4786 tractors w/engine serial no. 7435 and above

2шт.

36

444618

PLUG

1/4-18 auto. hex-hd pipe

2шт.

37

215331R1

CLAMP

cylinde, 4568 tractors only

1шт.

924137R1

NUT

5/16-18 phc wing

2шт.

38

634238C1

CYLINDER, ether, 4568 tractors only

1шт.
