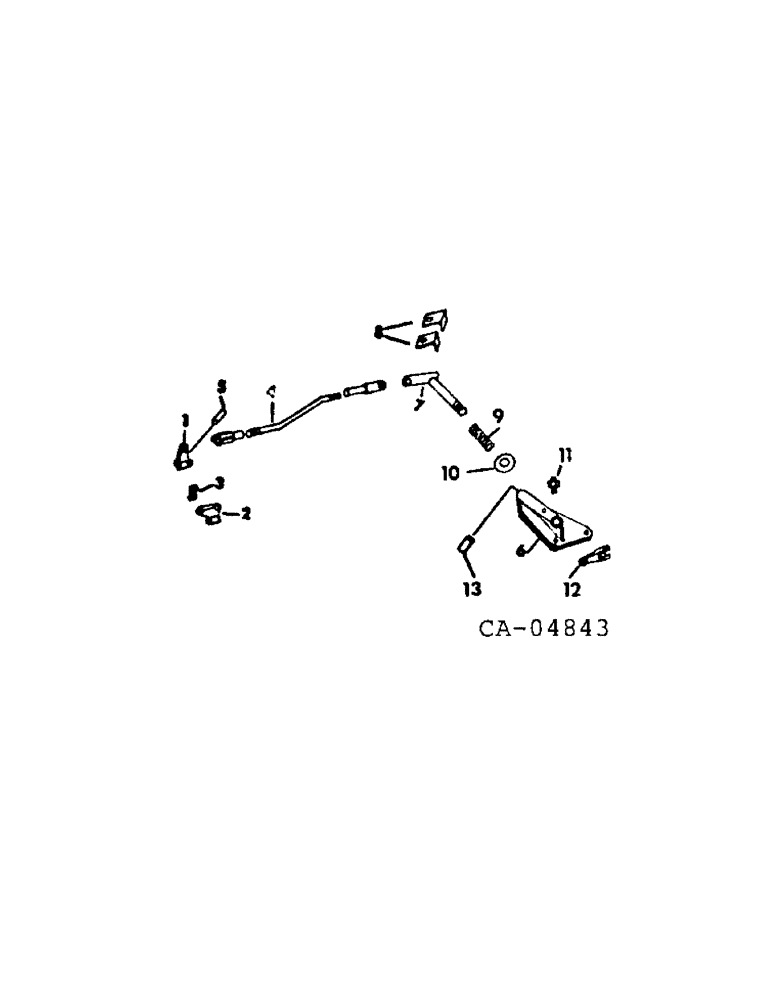

Запчасти Case IH V-800 (B-24) - INJECTION PUMP LINKAGE

1

683085C1

LEVER, injection pump

1шт.

25489R1

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 8

SCREW, 1/4-20 x 1-3/4 phc hex-hd cap

2шт.

25542R1

WASHER,.281" x 5/8" x .098", HDN

19/64 x 5/8 x .098 phc hardened

2шт.

2

688453C1

BRACKET

shut-off lever

1шт.

102579

SHIELD

SCREW, 1/4-20 x 2 sq-hd cup-pt set

1шт.

25519R1

NUT,1/4"-20, G8

1/4 phc type 8

1шт.

3

685848C1

CLIP, shut-off cable

1шт.

26674R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

1/4-20 x 3/4 phc hex-hd prevailing torque

1шт.

25519R1

NUT,1/4"-20, G8

1/4-20 phc hex.

1шт.

4

683699C1

ROD, linkage

1шт.

5

685190C1

SLEEVE, injection pump lever

2шт.

6

686641C91

BRACKET W/TWO BUSHINGS, 304483R1, cross shaft

1шт.

27020R1

BOLT, 1/4-20 x 1-1/8 phc hex-hd prevailing torque

2шт.

25519R1

NUT,1/4"-20, G8

1/4-20 phc hex.

2шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8-16 x 1-1/4 phc hex-hd prevailing torque

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

13/32 x 13/16 x .089 phc hardened

1шт.

7

683935C1

SHAFT

cross

1шт.

25536R1

WASHER

17/32 x 1-1/16 x .095 phc hardened

1шт.

8

683995C91

LEVER, override

1шт.

9

683937C1

SPRING

torsion

1шт.

10

264707R1

WASHER, retainer

1шт.

11

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 straight lubrication

1шт.

12

672848C1

SHAFT

LEVER, shaft

1шт.

26675R1

BOLT,Hex, 1/4" - 20 x 1", Gr 8

1/4-20 x 1 phc hex-hd prevailing torque

1шт.

115109

WASHER,1/4"

1/4"

1шт.

26311R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8-16 x 1-1/4 phc hex-hd prevailig torque

1шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

13/32 x 13/16 x .089 phc hardened

1шт.

13

304483R1

BUSHING

bracket

2шт.
